YASKAWA E-V Series Selection Manual

10.5 I/O Signal Cables for SERVOPACKs
10.5.5 For Controller Section of Σ-7C SERVOPACKs
10-28

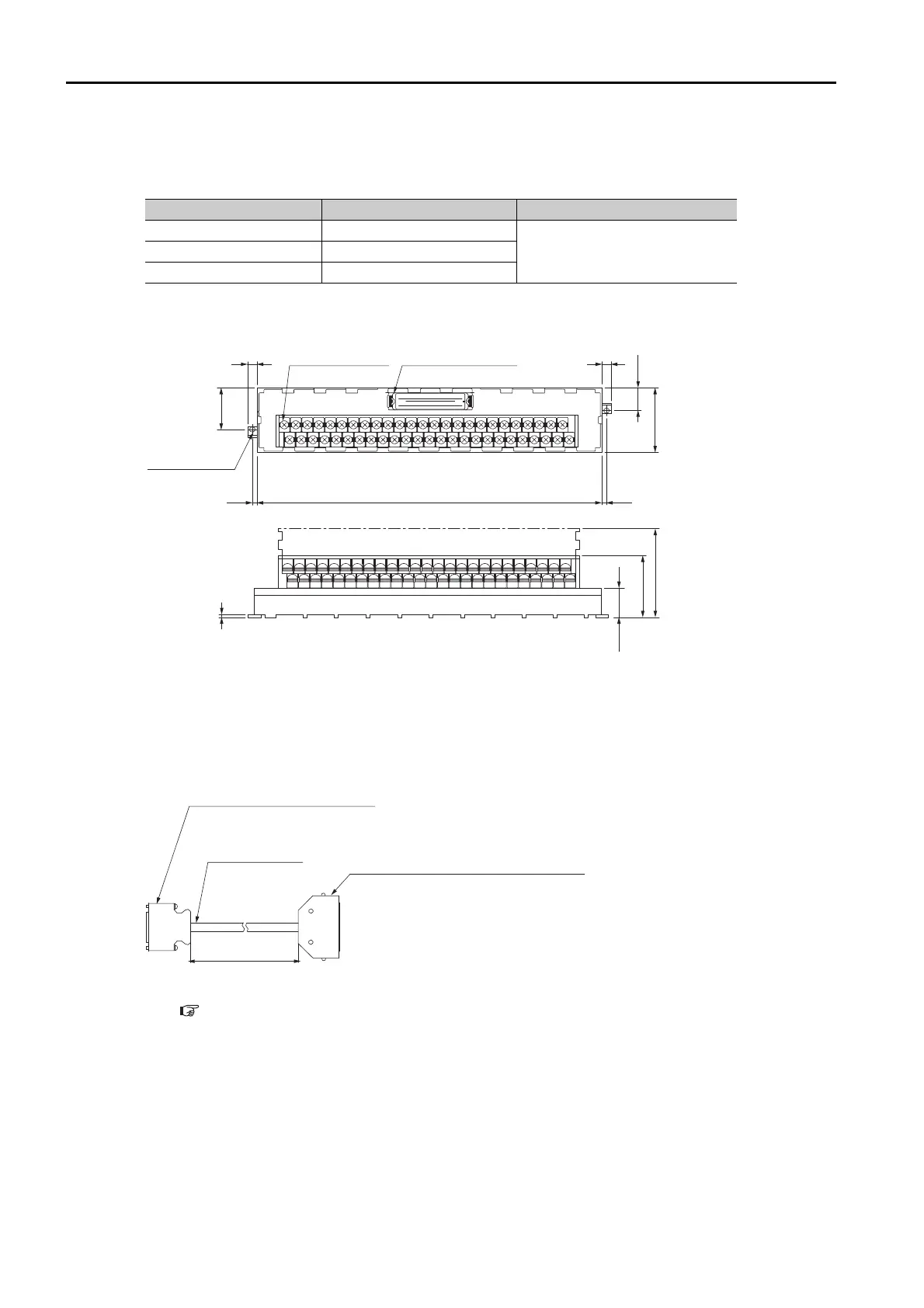

Connector-Terminal Block Converter Unit
 Selection Table
 Dimensional Drawing
 Dimensional Drawing of Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. To assemble your
own cables, refer to the following section for the wiring specifications.
 Wiring Specifications on page 10-14
Order Number Length of Enclosed Cable (L) Inquiries
JUSP-TA50PG-E 0.5 m
Yaskawa Controls Co., Ltd.JUSP-TA50PG-1-E 1 m
JUSP-TA50PG-2-E 2 m
1
19
33
16
32
50
1
1
2
49
50
Terminal block (50P)
M3.5 screws
Connector Plug (50P)
MR-50RMD2G+
7
7
15.5
45
3.5
3.5
29.5
2 × 3.5 dia. holes
247.5
2
20.5
43.5
Can be mounted to DIN rail.
(62)
With terminal
block cover open
Unit: mm
L
SERVOPACK connector (50P)
10150-6000EL (3M Japan Limited)
Shell
10350-52Z0-008 (3M Japan Limited)
Cable (black)
AWG28, 25P
UL20276 VW-1SC
Terminal Block Converter Unit connector (50P)
MRP-50F01 (Honda Tsushin Kogyo Co., Ltd.)
Case
MR-50L+ (Honda Tsushin Kogyo Co., Ltd.)
Unit: mm
