YASKAWA E-V Series Selection Manual

10.5 I/O Signal Cables for SERVOPACKs
10.5.3 For Σ-7W SERVOPACKs
10-22

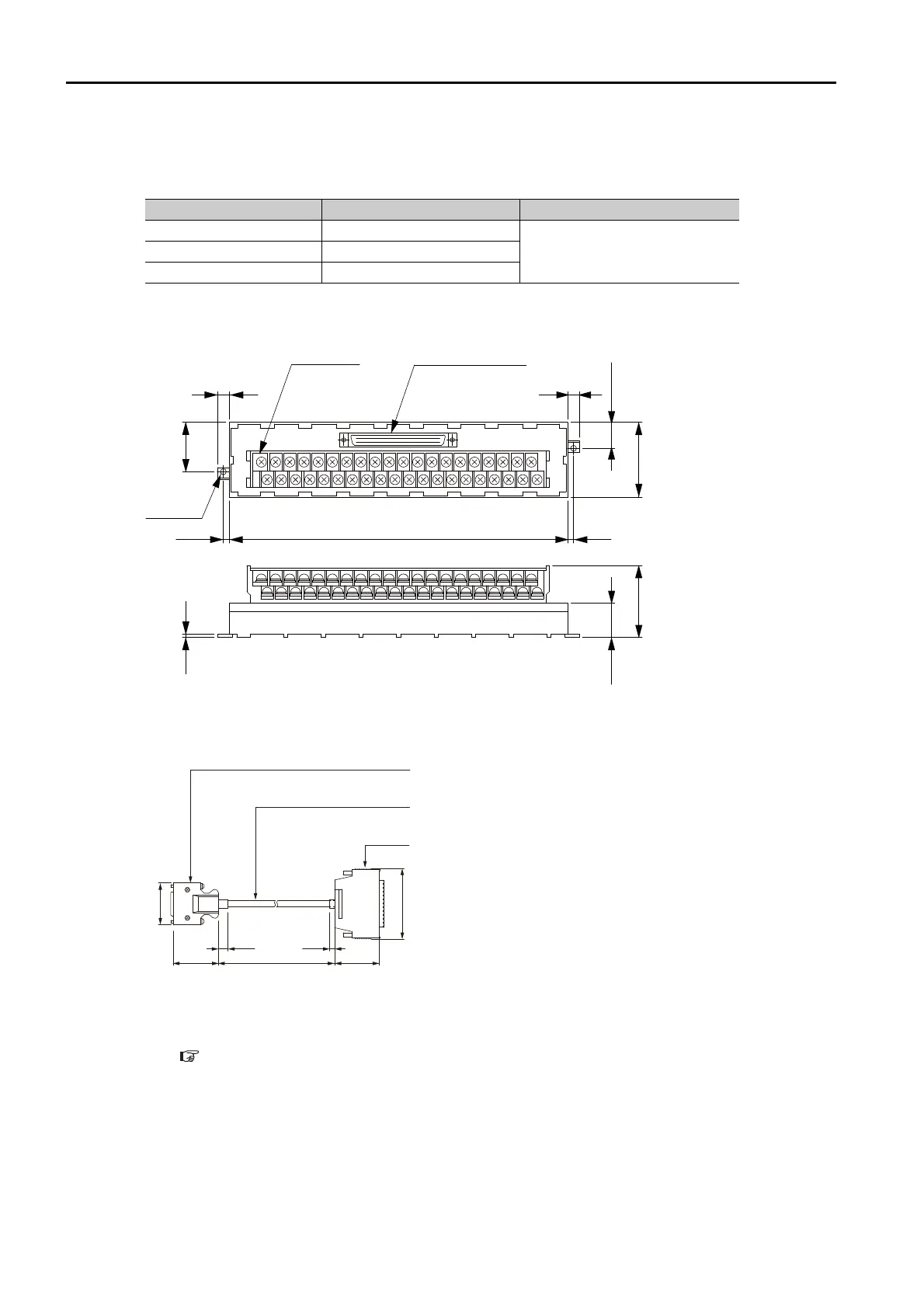

Connector-Terminal Block Converter Unit
 Selection Table
 Dimensional Drawing
 Dimensional Drawing of Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. Pins 1 to 36 are
wired. Do not connect pins 37 and higher.
To assemble your own cables, refer to the following section for the wiring specifications.
 Wiring Specifications on page 10-20
Order Number Length of Enclosed Cable (L) Inquires
JUSP-TA36P-E 0.5 m
Yaskawa Controls Co., Ltd. JUSP-TA36P-1-E 1 m
JUSP-TA36P-2-E 2 m
40
39
1
2
B20
A20
B1
A1
29.5
20.5
15.5
45
2
7
7
43
3.5
202.5
3.5
FCN-364P040-AU
2 × 3.5 dia.
holes
Unit: mm
Can be mounted to DIN rail.
Connector Plug (40P)
Terminal block (40P)
M3.5 screws
UL20276 VW-1
Unit: mm
Connector: FCN-360C040-B (Fujitsu Ltd.)
Cover: FCN-361J040-AU (Fujitsu Ltd.)
Cable: AWG28, 9P +18C
Shell: 10336-52A0-008 (3M Japan Limited)
Cover: 10136-6000EL (3M Japan Limited)
L
(47)
(39)
(20)
(10)
(72.72)
(43.5)
