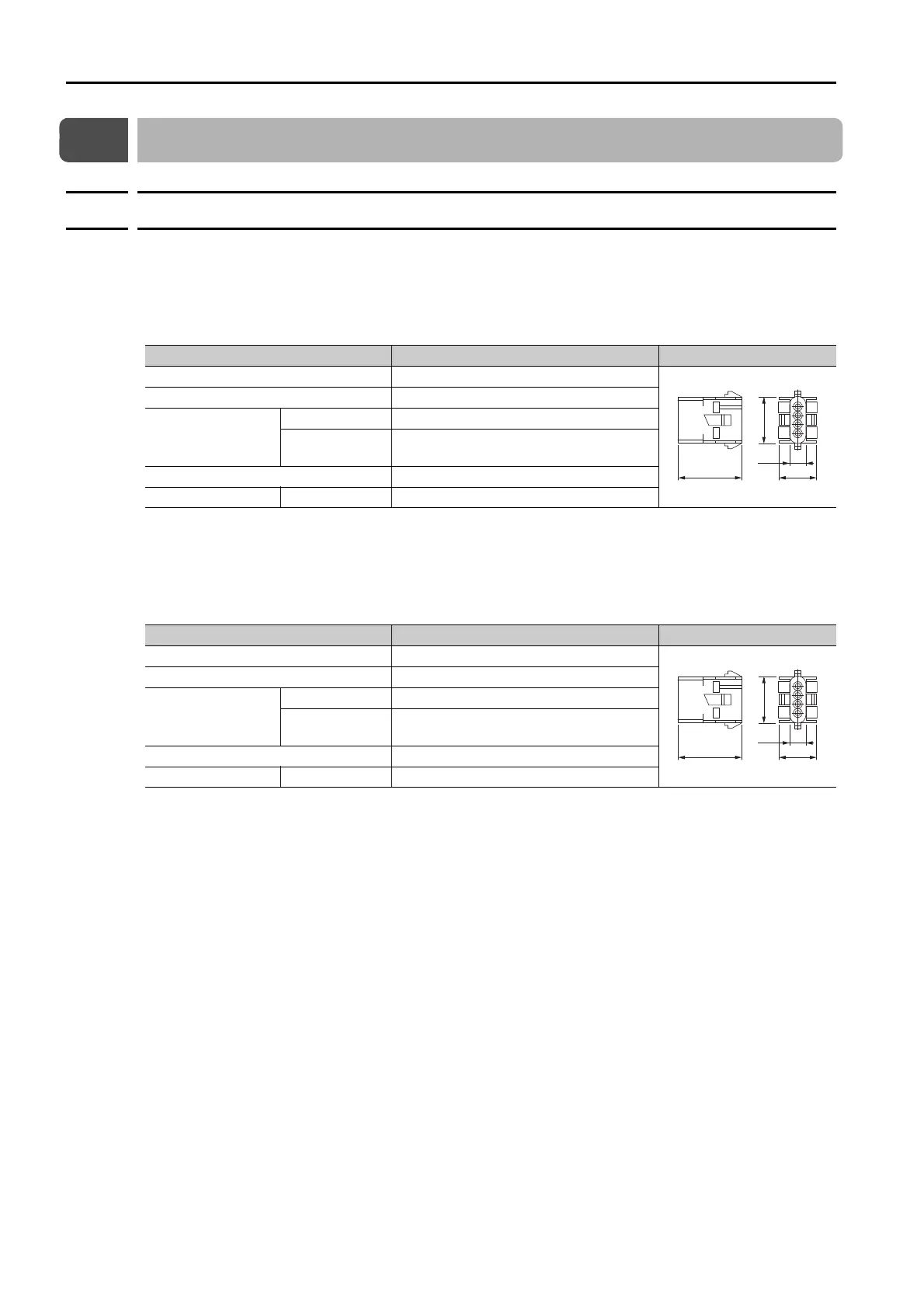

8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.1 Servomotor Connector Kits
8-12
8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.1 Servomotor Connector Kits
SGM7D Servomotors
 SGM7D-01G, -05G, -H, and -K
(for Standard or Flexible Cables)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.

SGM7D-

F, -

G (Excluding -01G and -05G), -

I, -

J,
and -

L (for Standard or Flexible Cables)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket
Reeled Sockets: 350570-3,
Loose Sockets: 350689-3
Applicable Wire Sizes AWG18 to AWG24
Crimping Tool* Hand Tool 91510-1
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket
Reeled Sockets: 350536-3,
Loose Sockets: 350550-3
Applicable Wire Sizes AWG14 to AWG20
Crimping Tool* Hand Tool 91500-1
15.727.4
7.6
26.7
15.727.4
7.6
26.7
