9 Technical Data of the AC 800F
9-1
9 Technical Data of the AC 800F
9.1 Environmental specifications
Max. ambient temperature 0 °C ... 60 °C (no fan required)
Max. internal module temp. 0 °C ... 70 °C
temperature monitoring on the CPU board
Temperature gradient
to DIN/IEC 68, Part 14 operational: 1 °C/minute
Storage
and transportation temperature - 25 °C ... + 85 °C

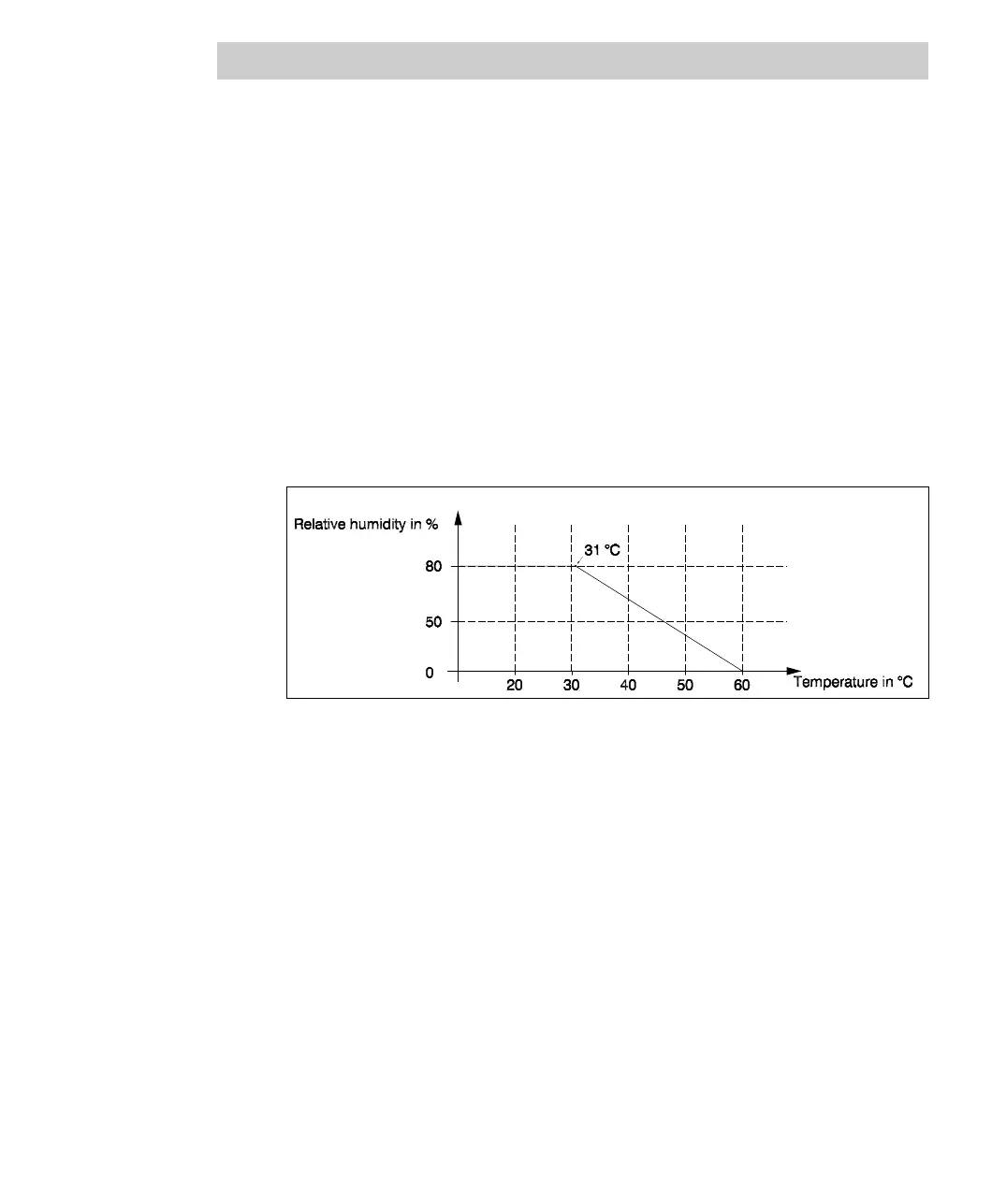

Air humidity/air temperature diagram
Fig. 9-1 Max. relative humidity
Degree of relative humidity RH-1 to EN 61131-2:1994 (IEC 1131-2)
Operating altitude max. 2000 m above sea level; higher altitudes on
request
Climate class KWF to DIN 40 040
3K3 to DIN IEC 721, Part 3-3
Corrosion resistance of housing to IEC 68-2-30
lower air temperature 25 °C
upper air temperature 55 °C/95 % air humidity
9 hours dwell time, 6 cycles
Protection IP 20 for AC 800F with mounted modules
