ABB AC 800F User Manual

4 Cabling the AC 800F
4-26
4.2.8 Installing a 10Base5 network (Yellow Cable)
4.2.8.1 General
This section describes the installation of a single 10Base5 segment.
Operation with a 10Base5 network requires that an AUI module is plugged in slot E1
or E2. A 10Base5 cable should be used in the following cases:
Maximum segment length 500 m
Maximum number of transceivers per segment 100
Minimum spacing between two transceivers 2.5 m

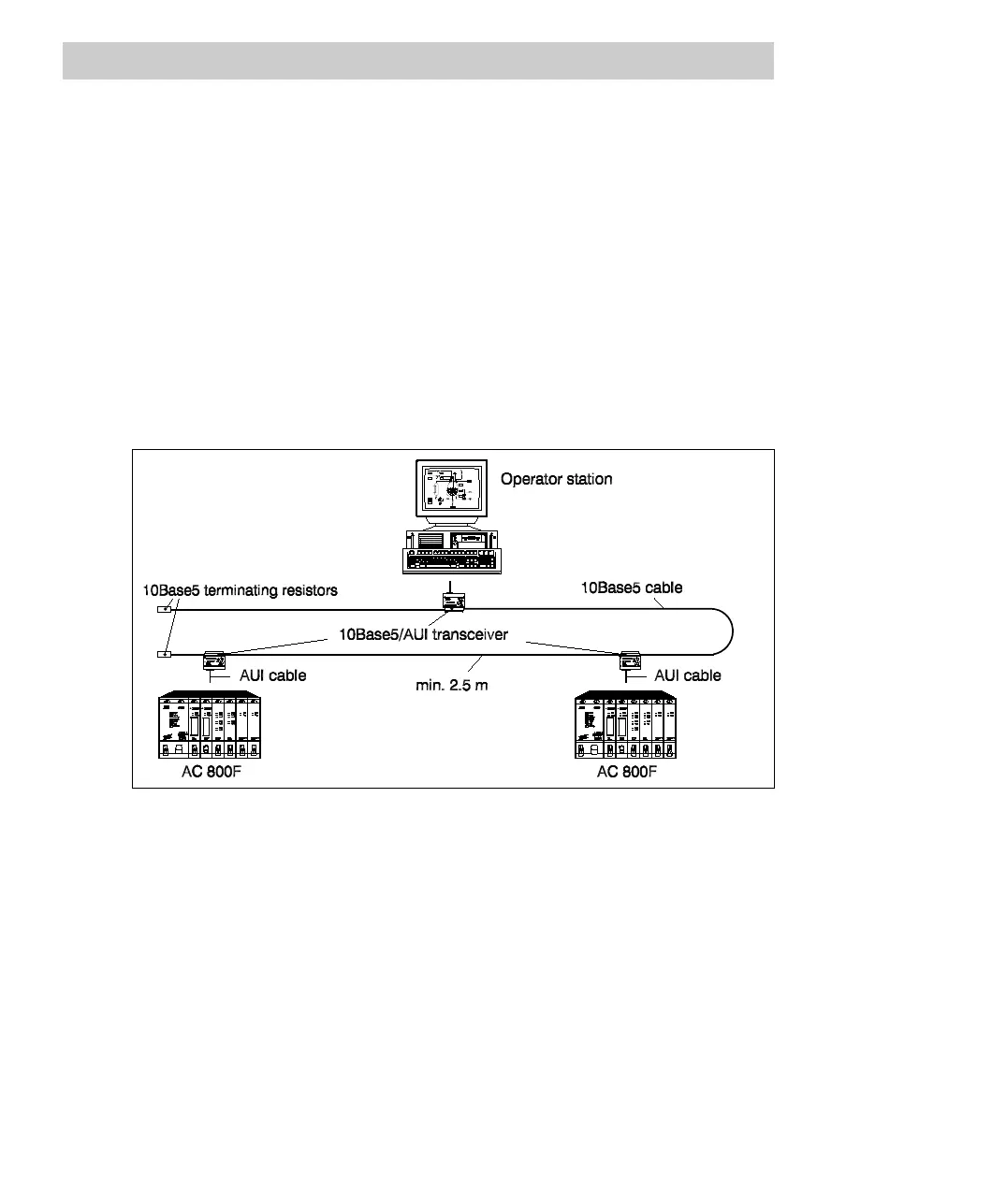

Fig. 4-15 Installing a 10Base5 network
Applications of 10Base5 segments are:
• Networks within one building
• Medium-size installations with medium to large numbers of nodes
• Installations with low or medium EMI
