ABB AC 800F User Manual

3 Mounting the AC 800F
3-4
Note:
• Weight of two fully equipped
AC 800F is around 10 kg
(mounting rail 2).
• Set mounting rails to the
back.
• All connections are on the
front.
No swing frame required.
No doors at the cabinet back.
• When using the AC 800F
together with systems from
other vendors, additionally
observe the mounting and
installation instructions for
these systems.

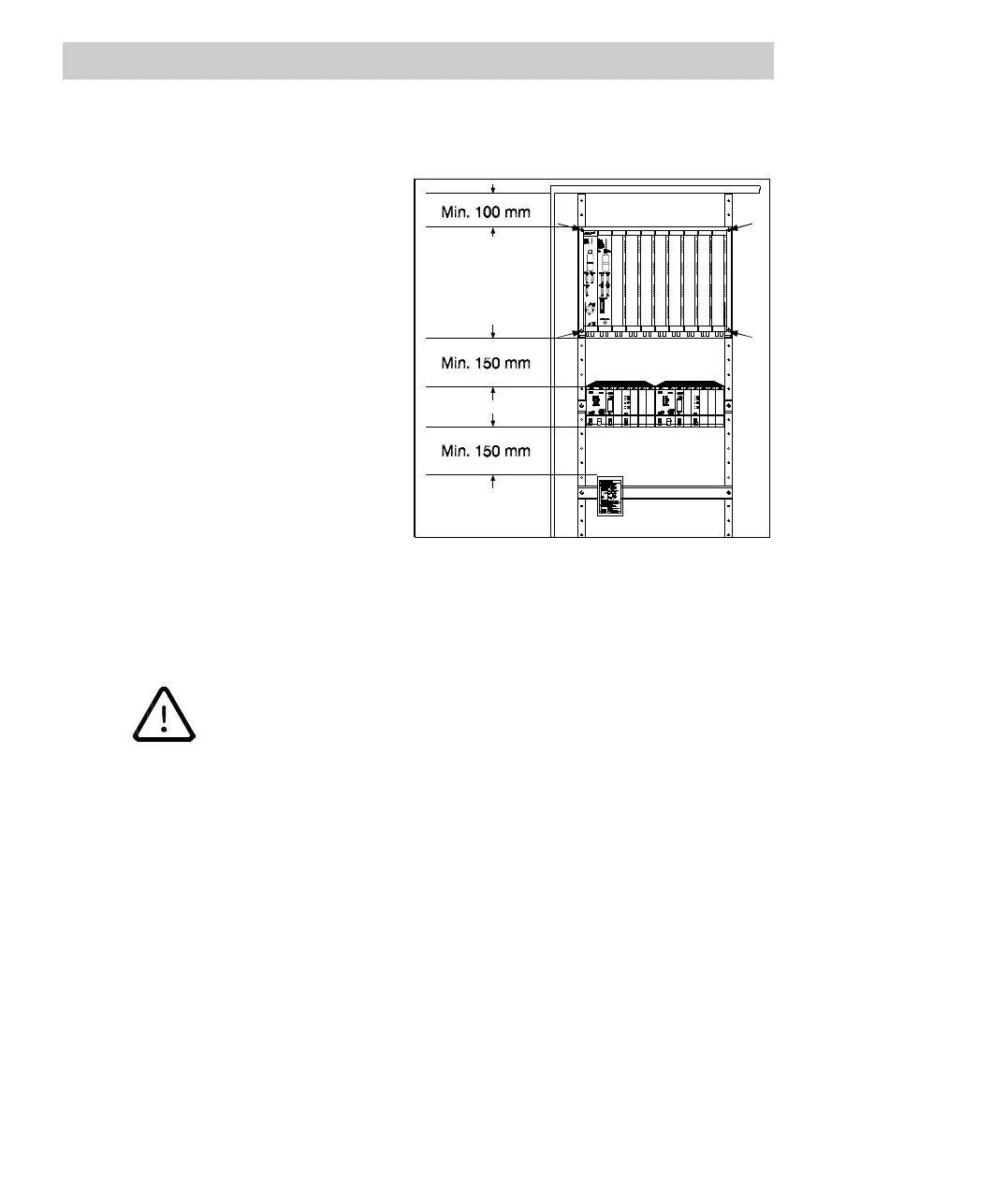

Fig. 3-3 Cabinet mounting
• Risk of overheating!
Minimum spacing above and below AC 800F is 150 mm (3.375 HU).
• Maximum temperature at the AC 800F bottom side (air intake):
60 °
°°
°C
• Keep air vents open
Do not impair air flow.
