3 Mounting the AC 800F
3-22

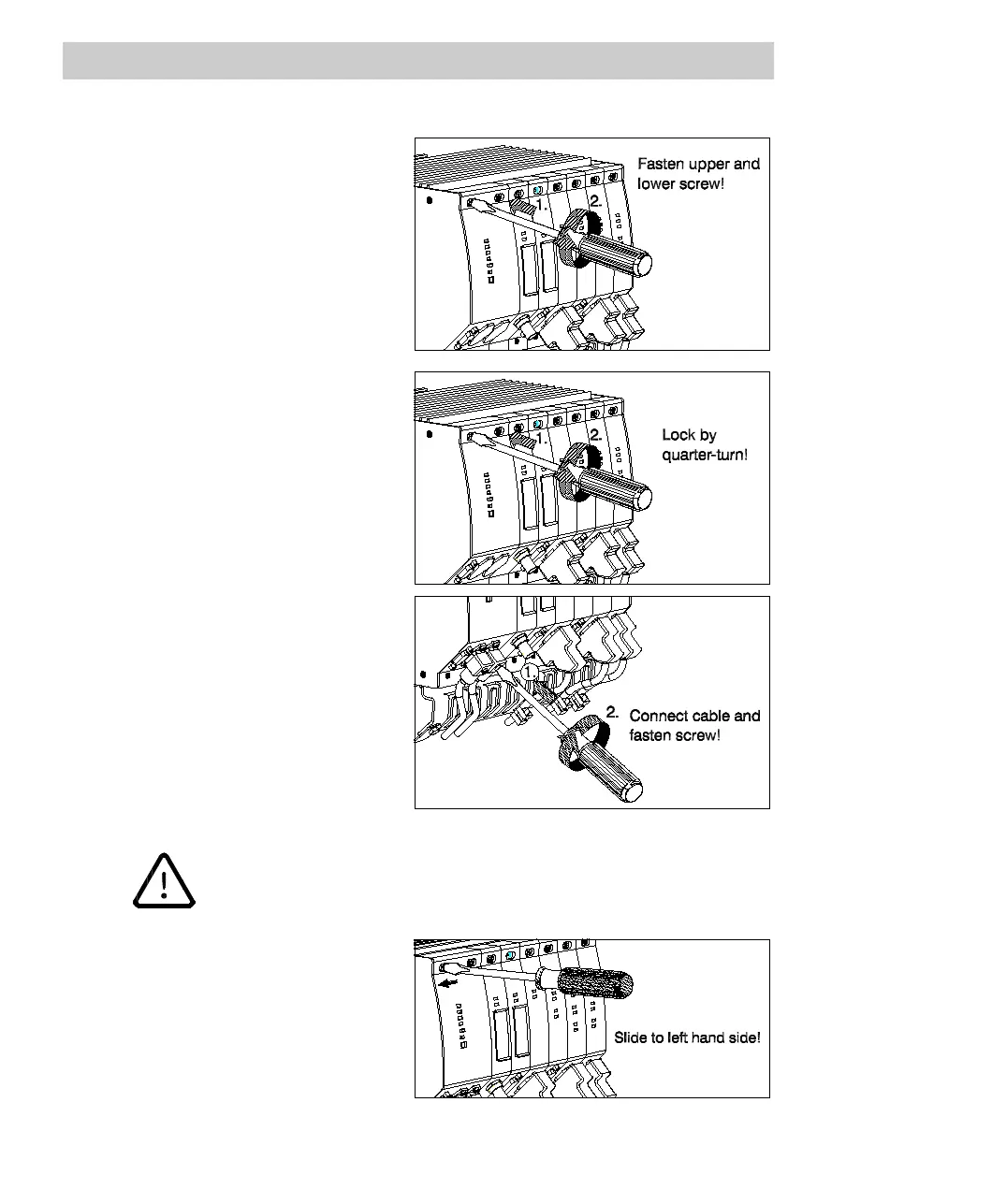

• Fasten power supply module
at the top and at the bottom.
Slightly push in the module
screws using a screw driver
and turn clockwise. Only hand-
tighten the screws.
• Alternatively, bayonet locks are
available. When using such
locks, a quarter-turn
(clockwise) will do to fasten the
module.
• Do not work under power!
Switch off using external switch
or safety cutout! Do not use the
connector as an “on/off switch”!
• Connect one or two mains
cables TK 802F (open end).
Fasten screw by turning
clockwise. Only hand-tighten
the screw!
• Always protect unused connections with a dummy connector!
• Do not use the power supply with untightened screws!
• Push slide-lock to the left
hand side until it snaps in.
–Done !
