ABB i-bus KNX AC/S 1.x.1 Series User Manual

ABB i-bus
®
KNX
Parameters
AC/S 1.x.1 | 2CDC508198D0211 Rev. A 195
7.7.3 Sockets

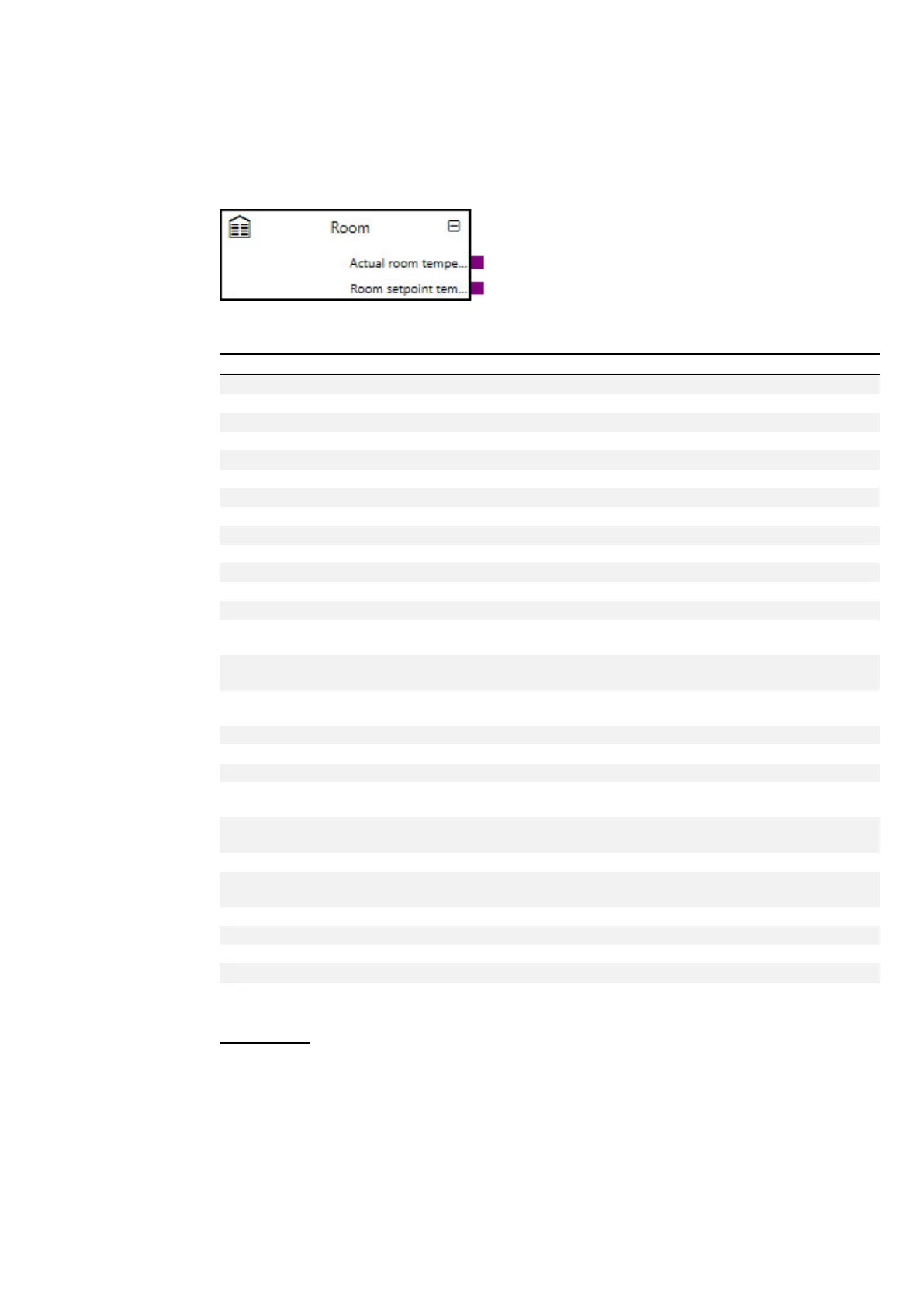

Overview of the ASM sockets for linking to other modules:
Type
Object name
Data type
Output Actual room temperature 9.001
Output Room setpoint temperature 9.001
Output
Controller On/Off
1.001
Output
Heating/cooling operating type
1.100
Output
Operating mode
20.102
Output
Operating mode override (slave)
20.102
Output Window status 1.019
Output Presence detector 1.018
Output Rel. humidity 5.001
Output CO2 value 9.008
Output
Fan coil unit, valve heating
5.001
Output
Fan coil unit, valve cooling
5.001
Output
Fan coil unit, valve
5.001
Output
Fan coil unit, additional-stage heating
1.001
5.001
Output
Fan coil unit, fresh air damper
1.019
5.001
Output Fan coil unit, fan speed 5.001
5.010
Output Fan coil unit, fan manual 1.011
Output Fan coil unit, dew point sensor 1.001
Output Fan coil unit, level sensor 1.001
Output
Radiator, valve
1.001
5.001
Output Floor heating, valve 1.001
5.001
Output Floor temperature sensor 9.001
Output Cooling ceiling, valve 1.001
5.001
Output
Cooling ceiling, dew point alarm sensor
1.001
Output Split unit, On/Off 1.001
Output Split unit, fan speed 5.001
Output Split unit, status 20.105
Input sockets
None
