7.11.3 Sockets

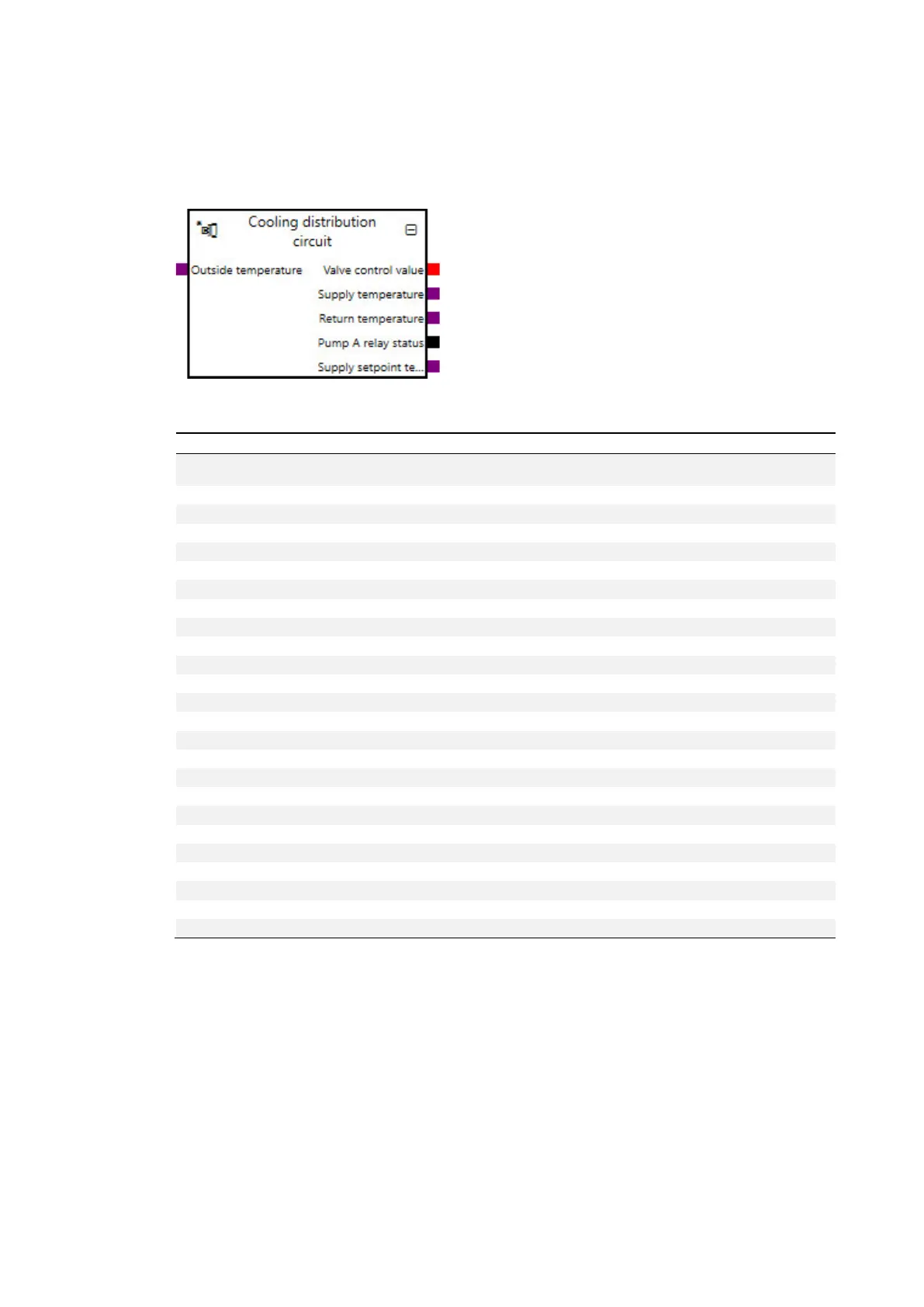

Overview of the ASM sockets for linking to other modules:
Type Object name Data type
Input
Control On/Off Heating/cooling distribution circuit controller
control
1.001
Input
Supply setpoint temperature External specification
9.001
Input
Outside temperature
9.001
Input
Room control values
5.001
Output Valve control value 5.001
Output Supply temperature 9.001
Output Return temperature 9.001
Output Control On/Off 1.001
Output
Valve override disable/enable
1.003
Output
Valve override control value
5.001
Output
Status Valve purge
1.011
Output Pump A operating status (Off/On) 1.011
Output Pump A relay status 1.001
Output Pump A fault 1.005
Output Pump A repair switch status 1.011
Output Pump A override disable/enable 1.003
Output
Pump A override value
1.001
Output
Pump B operating status (Off/On)
1.011
Output
Pump B relay status
1.001
Output
Pump B fault
1.005
Output Pump B repair switch status 1.011
Output Pump B override disable/enable 1.003
Output Pump B override value 1.001
Output Supply setpoint temperature 9.001
Output
Supply setpoint temperature External specification
9.001
