Parameters
AC/S 1.x.1 | 2CDC508198D0211 Rev. A 447
7.17.6 WebUI

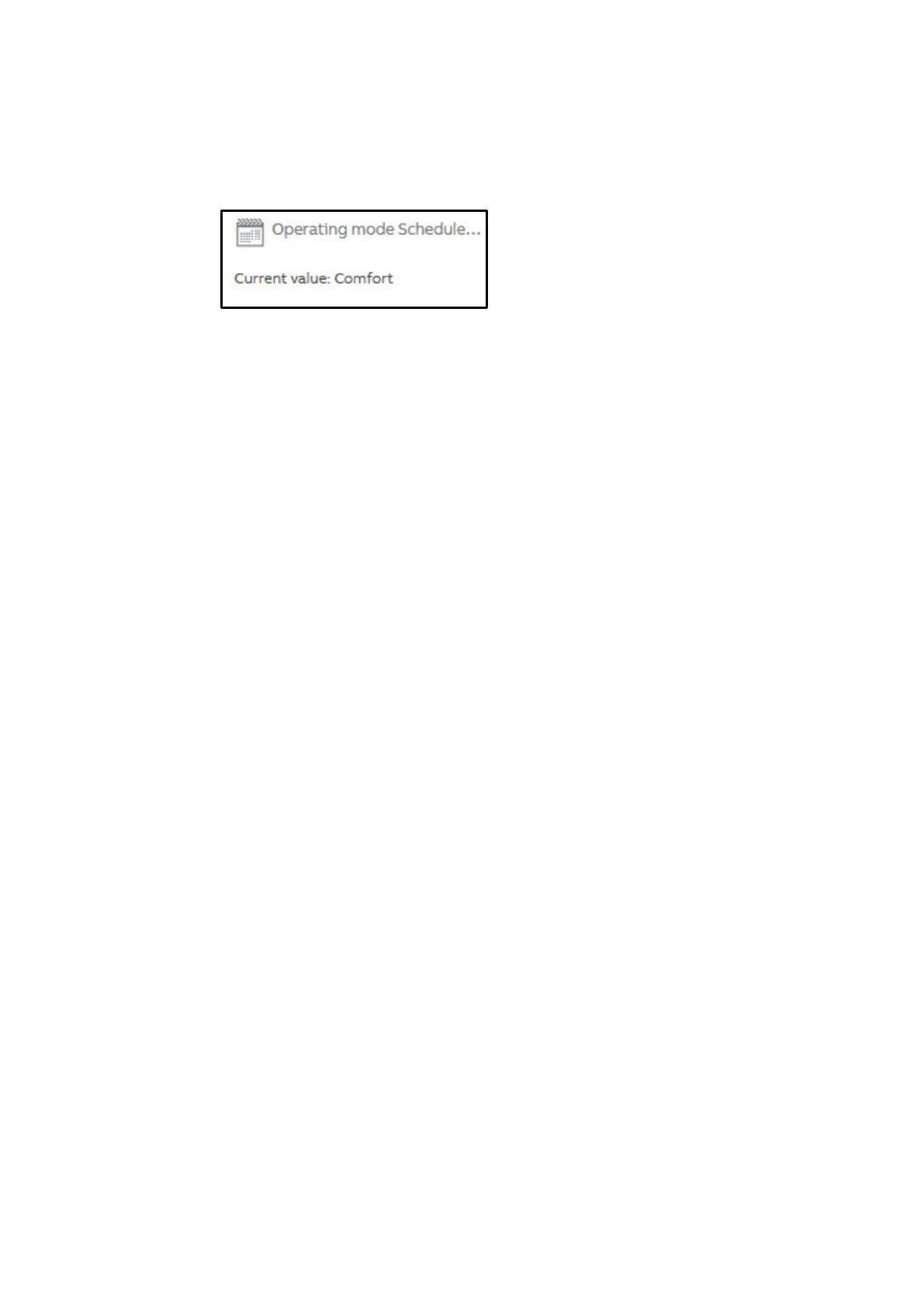

Open the detailed view of the ASM by clicking the ASM's tile.
You can display the switching times parameterized via BACnet for any day. Use the arrow buttons to
select the required month; click any day to display the switching pattern for the related day. The switching
pattern for the complete week containing the selected day is also displayed in the overview rows
underneath.
The view is intended to provide an overview and to be used for checking. It is not possible to change the
switching times via the web user interface.
The resulting switching times are displayed on the web user interface. These represent the combination of
the BACnet weekly scheduler and the BACnet exception switching times with the different priorities. The
web user interface therefore shows the switching commands that are sent on the KNX bus.
