ABB i-bus KNX AC/S 1.x.1 Series User Manual

ABB i-bus
®
KNX
Parameters
260 2CDC508198D0211 Rev. A | AC/S 1.x.1

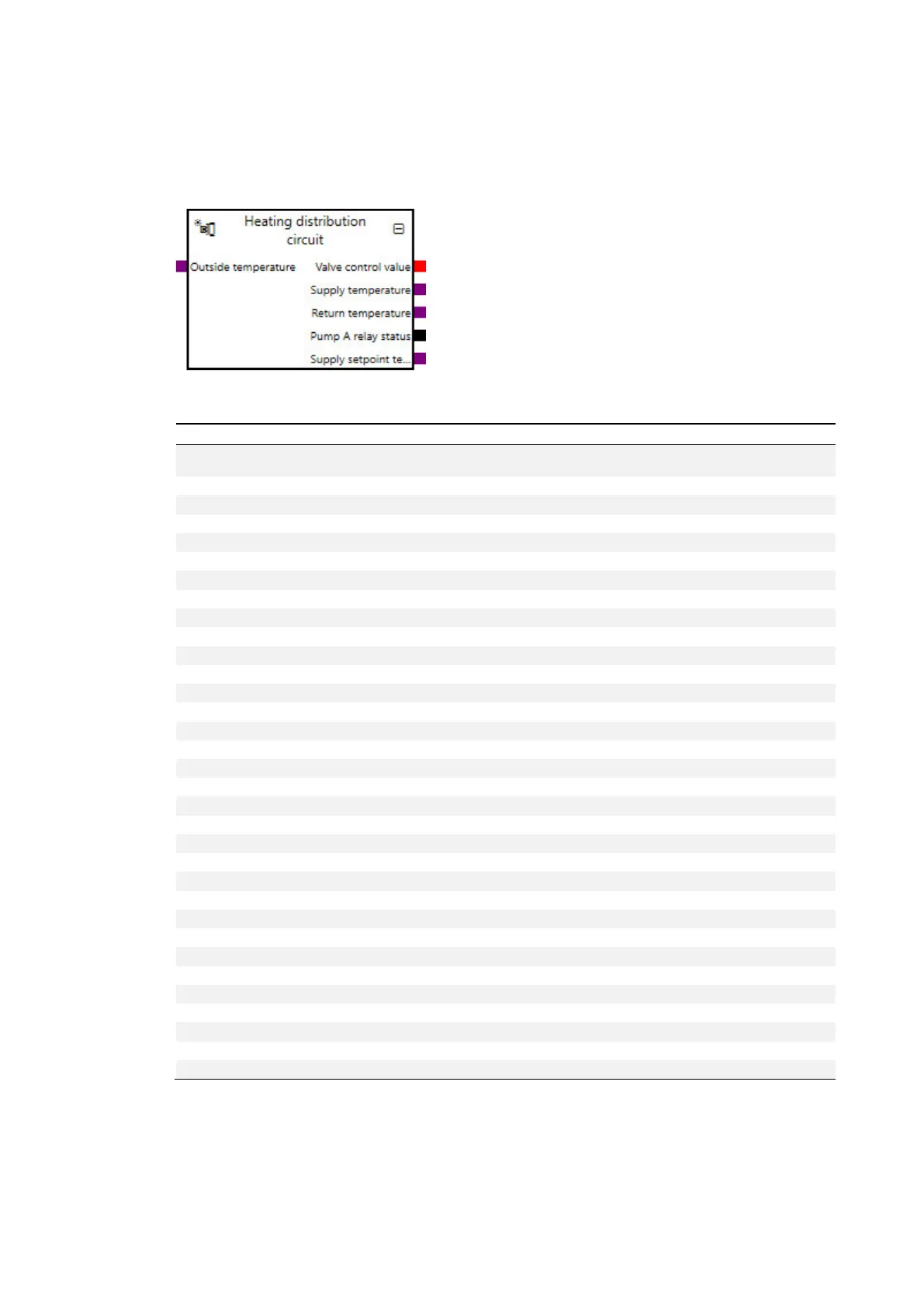

7.9.3 Sockets
Overview of the ASM sockets for linking to other modules:
Type Object name Data type
Input
Control On/Off Heating/cooling distribution circuit controller
control
1.001
Input
Supply setpoint temperature External specification
9.001
Input
Outside temperature
9.001
Input
Room setpoint temperature Comfort
9.001
Input Room setpoint temperature Standby 9.001
Input Room setpoint temperature Economy 9.001
Input Room setpoint temperature Building Protection 9.001
Input Room control values 5.001
Input
Room setpoint temperature
9.001
Input
Operating mode
20.102
Output
Valve control value
5.001
Output Supply temperature 9.001
Output Return temperature 9.001
Output Control On/Off 1.001
Output Valve override disable/enable 1.003
Output Valve override control value 5.001
Output
Status Valve purge
1.011
Output
Pump A operating status (Off/On)
1.011
Output
Pump A relay status
1.001
Output
Pump A fault
1.005
Output Pump A repair switch status 1.011
Output Pump A override disable/enable 1.003
Output Pump A override value 1.001
Output Pump B operating status (Off/On) 1.011
Output
Pump B relay status
1.001
Output
Pump B fault
1.005
Output
Pump B repair switch status
1.011
Output
Pump B override disable/enable
1.003
Output Pump B override value 1.001
Output Supply setpoint temperature 9.001
Output Supply setpoint temperature External specification 9.001
Output Room involvement 9.002
Output Max. room setpoint temperature 9.001
