Mounting and installation
38 2CDC508198D0211 Rev. A | AC/S 1.x.1
5.2 Mounting on DIN rail
The device is fitted and removed without auxiliary tools.
Make sure the device is accessible for operation, testing, visual inspection, maintenance and repair.

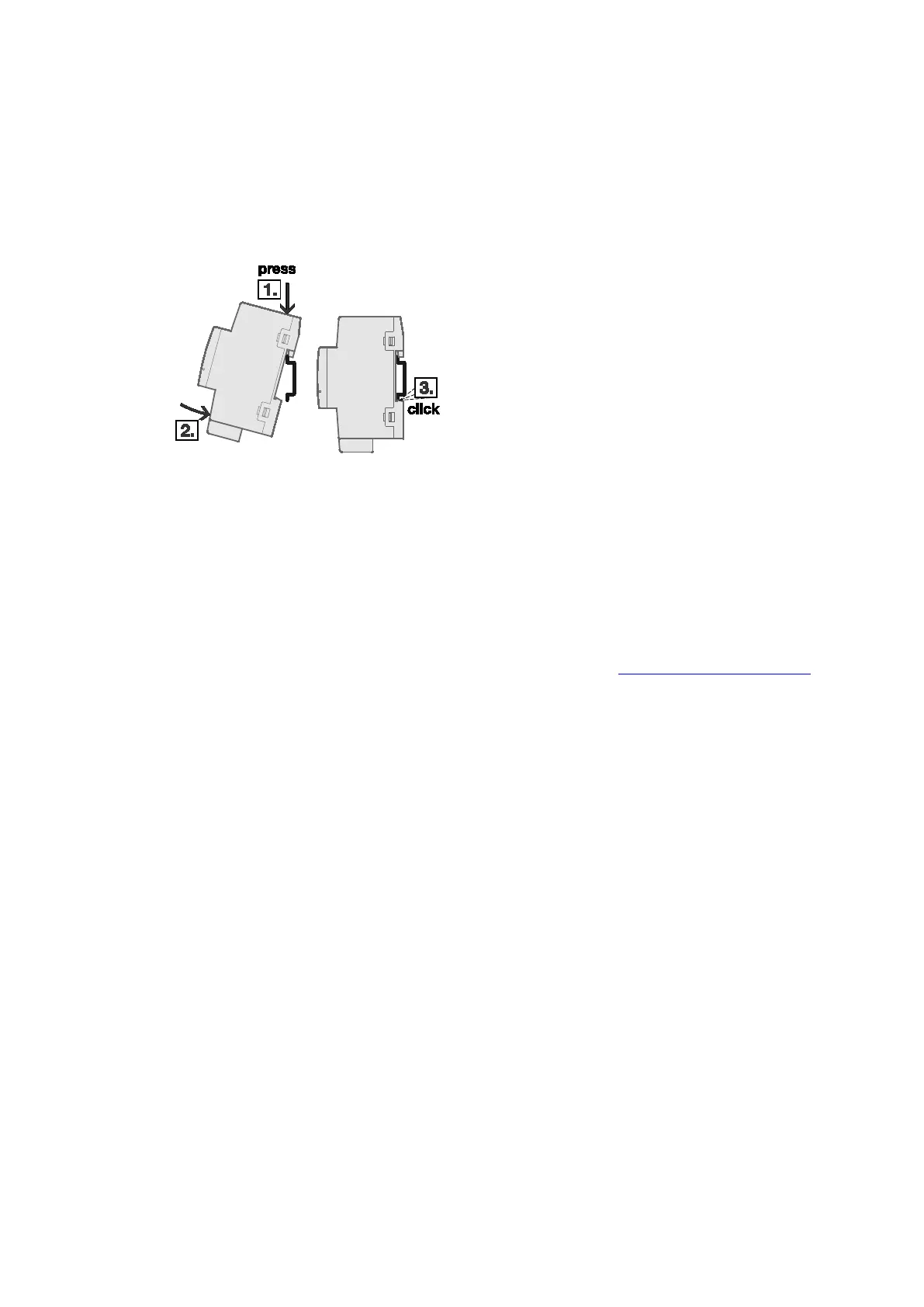

Fig. 8: Mounting
1.
Place the DIN rail holder on the upper edge of the DIN rail and push down.
2.
Push the lower part of the device toward the DIN rail until the DIN rail holder engages.

The device is now mounted on the DIN rail.

Relieve the pressure on the top of the housing.
5.3 Supplied state
The device is supplied with the physical KNX address 15.15.255, the IP configuration is set to "Obtain an
IP address automatically". For more information on the IP address, see chapter 6.3.1. Network settings
.
The device is ready for operation in the state as supplied. You can access the web user interface using the
user "admin" and the initial password "Admin123".
The BACnet server is deactivated in the state as supplied.
