Parameters
AC/S 1.x.1 | 2CDC508198D0211 Rev. A 311
7.10.3 Sockets

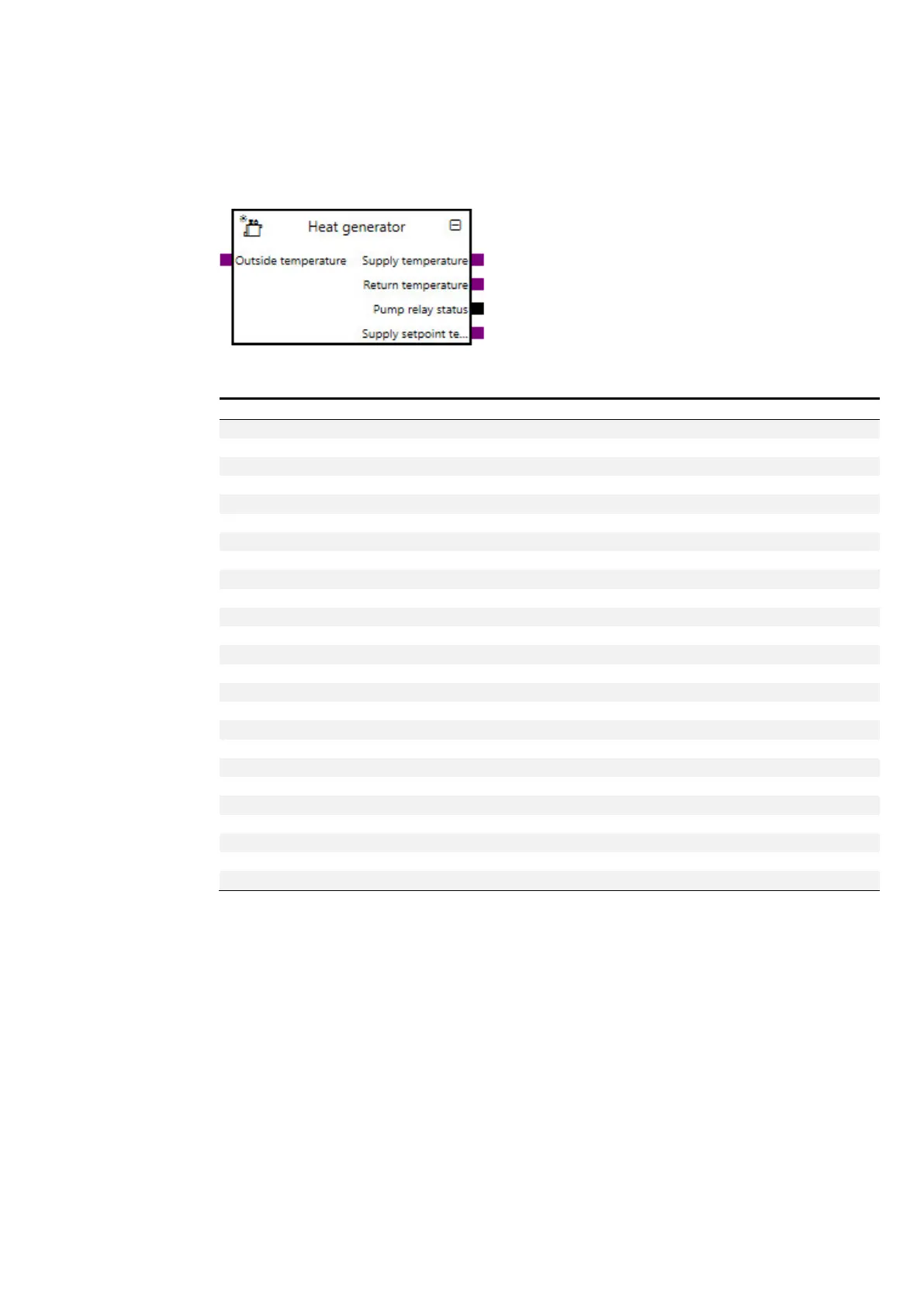

Overview of the ASM sockets for linking to other modules:
Type Object name Data type
Input
Heat generator operating status
1.001
Input
Supply setpoint temperature External specification
9.001
Input Outside temperature 9.001
Input Room setpoint temperature Comfort 9.001
Input Room setpoint temperature Standby 9.001
Input Room setpoint temperature Economy 9.001
Input
Room setpoint temperature Building Protection
9.001
Input
Room control values
5.001
Input
Room setpoint temperature
9.001
Input
Operating mode
20.102
Output Supply temperature 9.001
Output Return temperature 9.001
Output Heat generator On/Off 1.001
Output Pump operating status (Off/On) 1.011
Output Pump relay status 1.001
Output
Pump fault
1.005
Output
Pump repair switch status
1.011
Output
Pump override disable/enable
1.003
Output Pump override value 1.001
Output Supply setpoint temperature 9.001
Output Supply setpoint temperature External specification 9.001
Output Room involvement 9.002
Output
Max. room setpoint temperature
9.001
Output
Heat generator operating status
1.001
Output
Heat generator failure status
1.001
