3 Maintenance
3.4.3. Oil change, gearbox axis 4
3HAC022032-001 Revision: E102
© Copyright 2004-2008 ABB. All rights reserved.
3.4.3. Oil change, gearbox axis 4

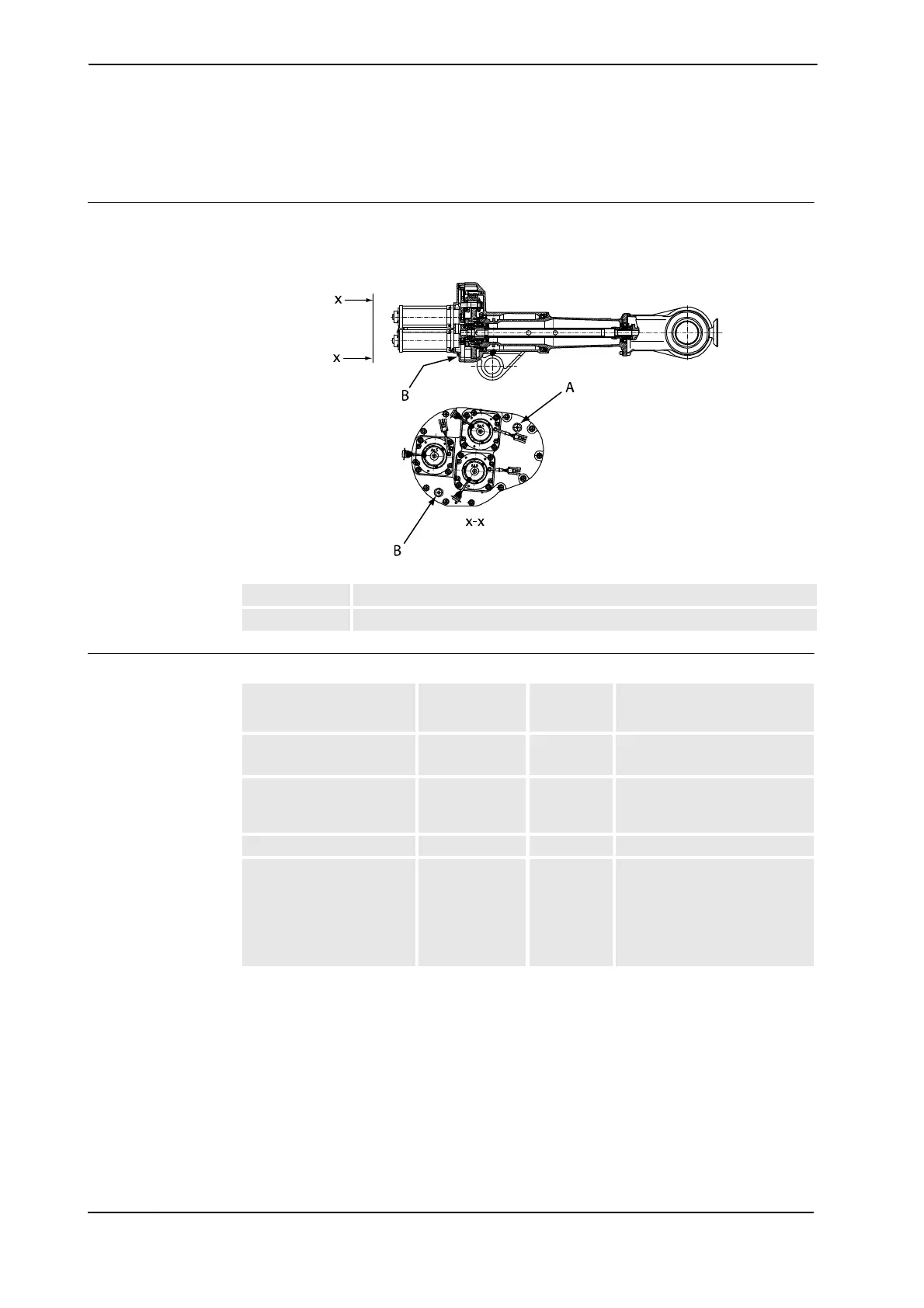

Location of oil plugs
The axis 4 gearbox has one oil plug for draining and one oil plug for filling, located as shown
in the figure below.
xx0300000220
Required equipment
A Upper oil plug, filling
B Lower oil plug, draining
Equipment, etc.
Spare part
no.
Art. no. Note
Lubricating oil 3HAC 0860-1 Optimol Optigear BM 100
Volume: 3,400 ml.
Standard toolkit 3HAC
17594-1
The contents are defined in
section Standard toolkit on
page 264.
Oil collecting vessel Capacity: 4,000 ml.
Other tools and
procedures may be
required. See references
to these procedures in the
step-by-step instructions
below.
These procedures include
references to the tools
required.
Continues on next page
