3.3.3. Replacement of battery pack, measuring system
3HAC022032-001 Revision: E94
© Copyright 2004-2008 ABB. All rights reserved.
3.3.3. Replacement of battery pack, measuring system
Location of battery pack
The battery pack is fit to the serial measurement unit, located inside the base. To access the
unit and battery pack, the rear cover plate shown in the figure below must be removed.

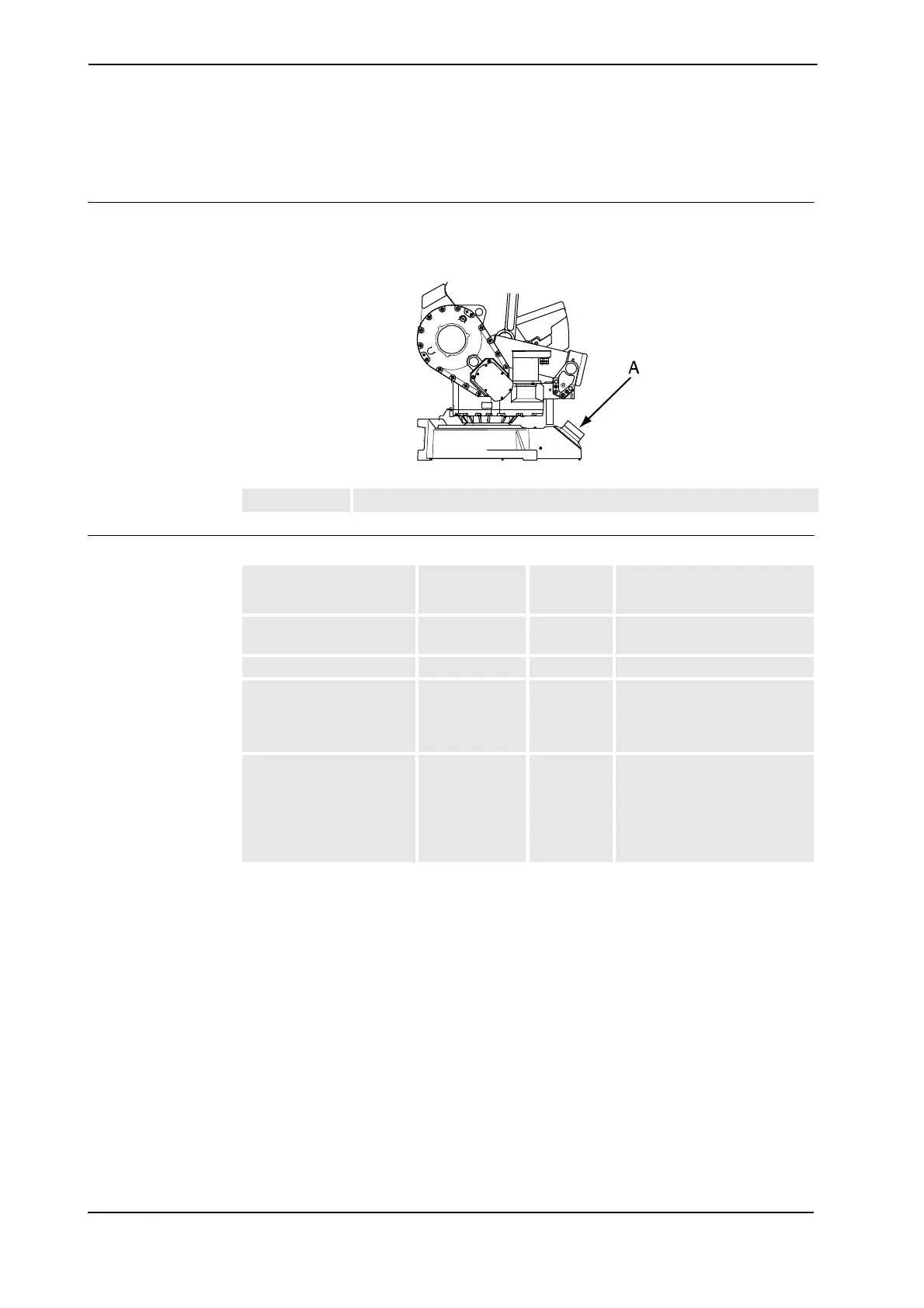

xx0300000106
Required equipment
A Rear cover plate
Equipment, etc.
Spare part
no.
Art. no. Note
Battery pack 4944 026-4 Rechargeable nickel-cadmium
battery.
Battery pack 3HAC 16831-1 Lithium battery.
Standard toolkit 3HAC
17594-1
The contents are defined in
section Standard toolkit in the
Product manual, reference
information.
Other tools and
procedures may be
required. See references
to these procedures in the
step-by-step instructions
below.
These procedures include
references to the tools
required.
