4.7.7. Refitting of motor, axis 5
Location of motor

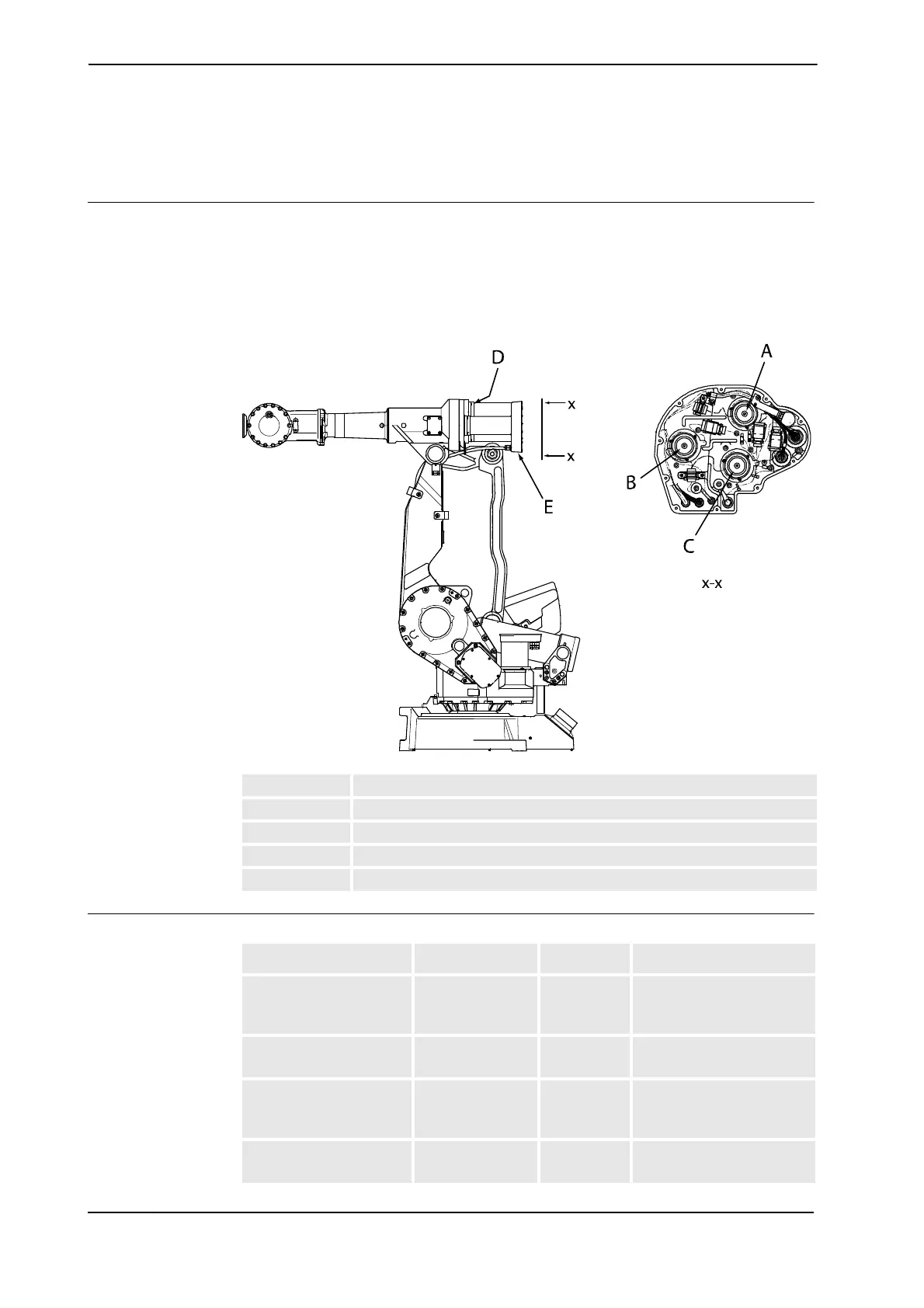

The motors, axes 4, 5 and 6 are located as shown in the figure below. (The figure shows the
IRB 4400.)
The motor and drive gear of each axis constitutes one unit.
A more detailed view of the component and its position may be found in chapter Foldouts in
the Product manual, reference information.
xx0300000164
Required equipment
A Motor unit, axis 4
B Motor unit, axis 5
C Motor unit, axis 6
D Attachment screws and washers, motor
E Connection box
Equipment, etc. Spare part no. Art. no. Note
Motor unit, axis 5
(IRB 4400/45, /60, /L30, /
S)
3HAC 10603-1 Elmo
Includes pinion.
Motor unit, axis 5
(IRB 4400/L10)
3HAC 10605-1 Elmo
Includes pinion.
Motor unit, axis 5
(IRB 4400/45, /60, /L30, /S
and IRB 4450S)
3HAC 021726-001 Yaskawa
Includes pinion
Motor unit, axis 5
(IRB 4400/L10)
3HAC 021962-001 Yaskawa
Includes pinion
Continues on next page
