XIO USER MANUAL | 2106424MNAB | 103

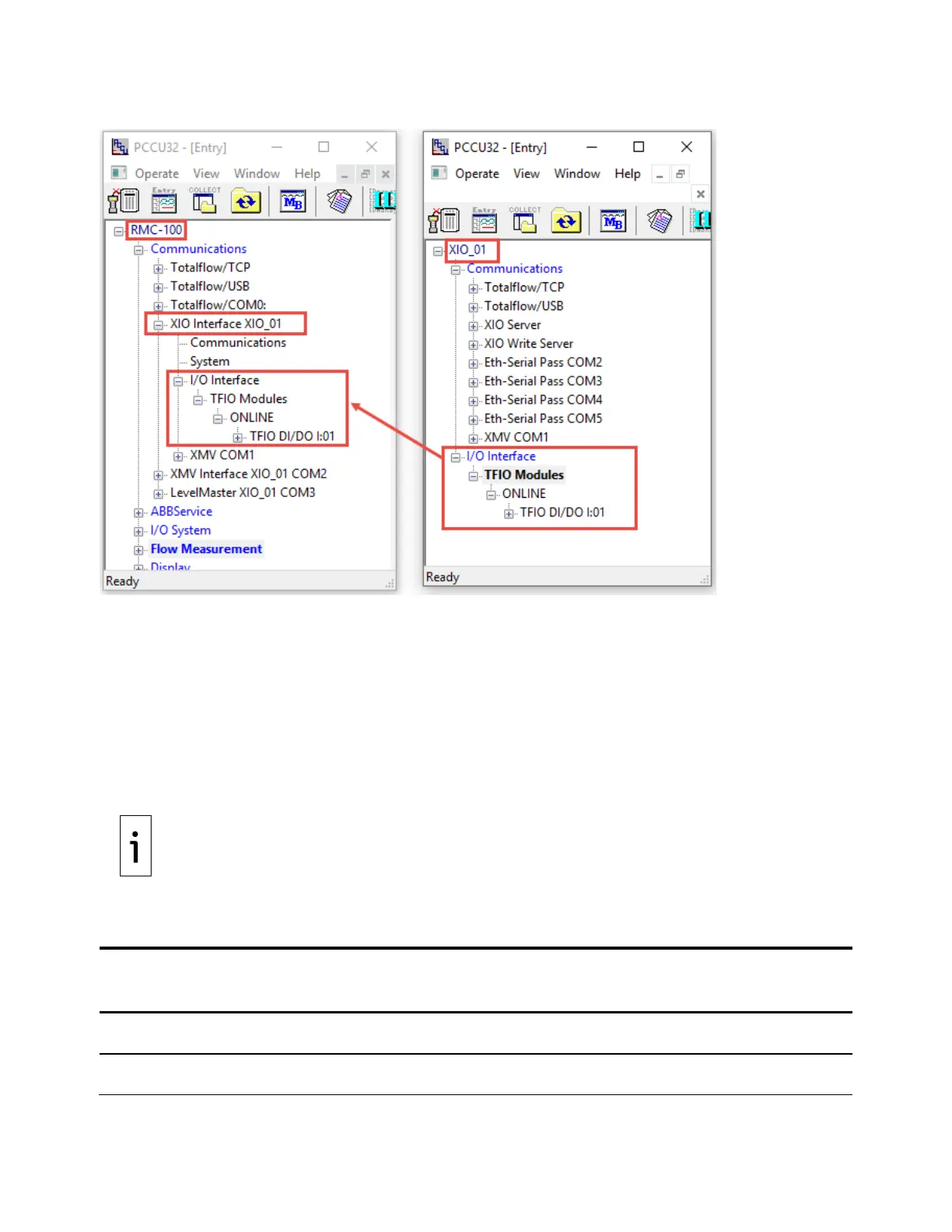

Figure 4-96: XIO I/O Interface application exported to RMC – Remote TFIO Module detected
5 Calibration
Calibration procedures vary depending on application scenarios. The XIO supports the same calibration
utility as other Totalflow devices.
Calibration depends on where the involved applications are in operation and the communication method
between the XIO and the remote controller. The table below describes where the calibration must be
performed from per application scenario. The table also details where the calibration files are stored.
I/O calibration (shown in the last row) can be performed from either the
. When calibration is done from the XIO, there is a pop-
up message to notify the
user that the IO point they are calibrating may be used in a tube and if that is the case,
calibration
should be done from the RMC instead. Regardless of where the calibration takes
place, I/O calibration files are stored on the XIO.
The calibration method is the same from XIO
.
Table 5-1: Calibration per application scenario
Exported
Calibration
File
Location
from
device
Ethernet-Serial
Passthrough
To Next Page
