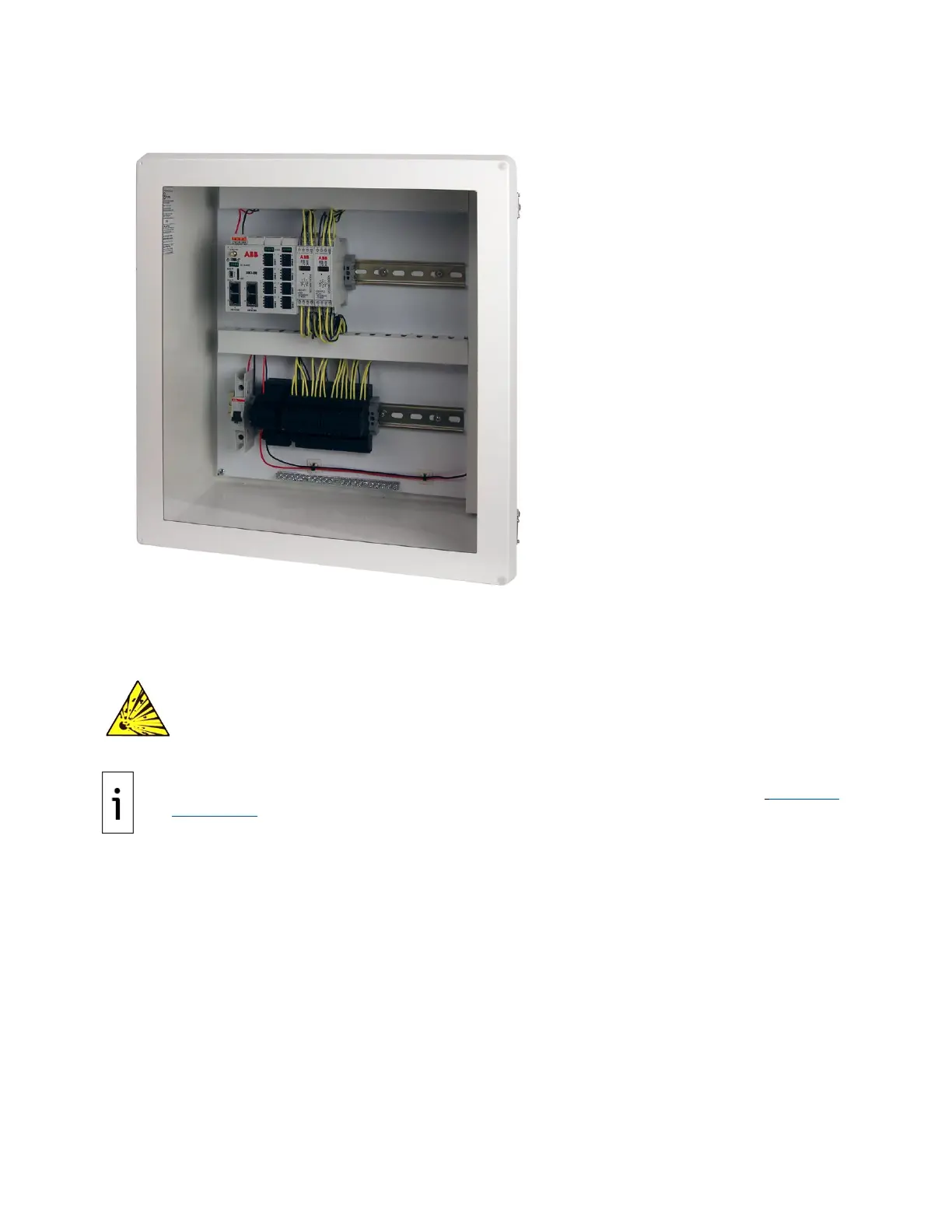

Figure 2-4: XCORE 2424 small size enclosure (internal view displays an installed XIO-08 as an
example)
2.2 Electronic board
The electronic board component specifications are listed in this section.
DANGER – Serious damage to health / risk to life. Explosion Hazard: Do not connect or
disconnect connectors or their terminations while energized unless the area is known to be non-
hazardous.
IMPORTANT NOTE:
For general specifications, refer to the Data sheet listed under Additional
information
.
2.2.1 Communication ports
Communication ports provide communication between the XIO and host systems or external devices.
Factory preconfigured ports support typical communication scenarios. The ports support several available
communication protocols.
Ports configured for local communication (direct connection) support either local access from a host
system, or connection to external devices or peripherals including:
– Measurement transmitters
– Additional automation or control equipment
– Flow computers
– Analyzers
