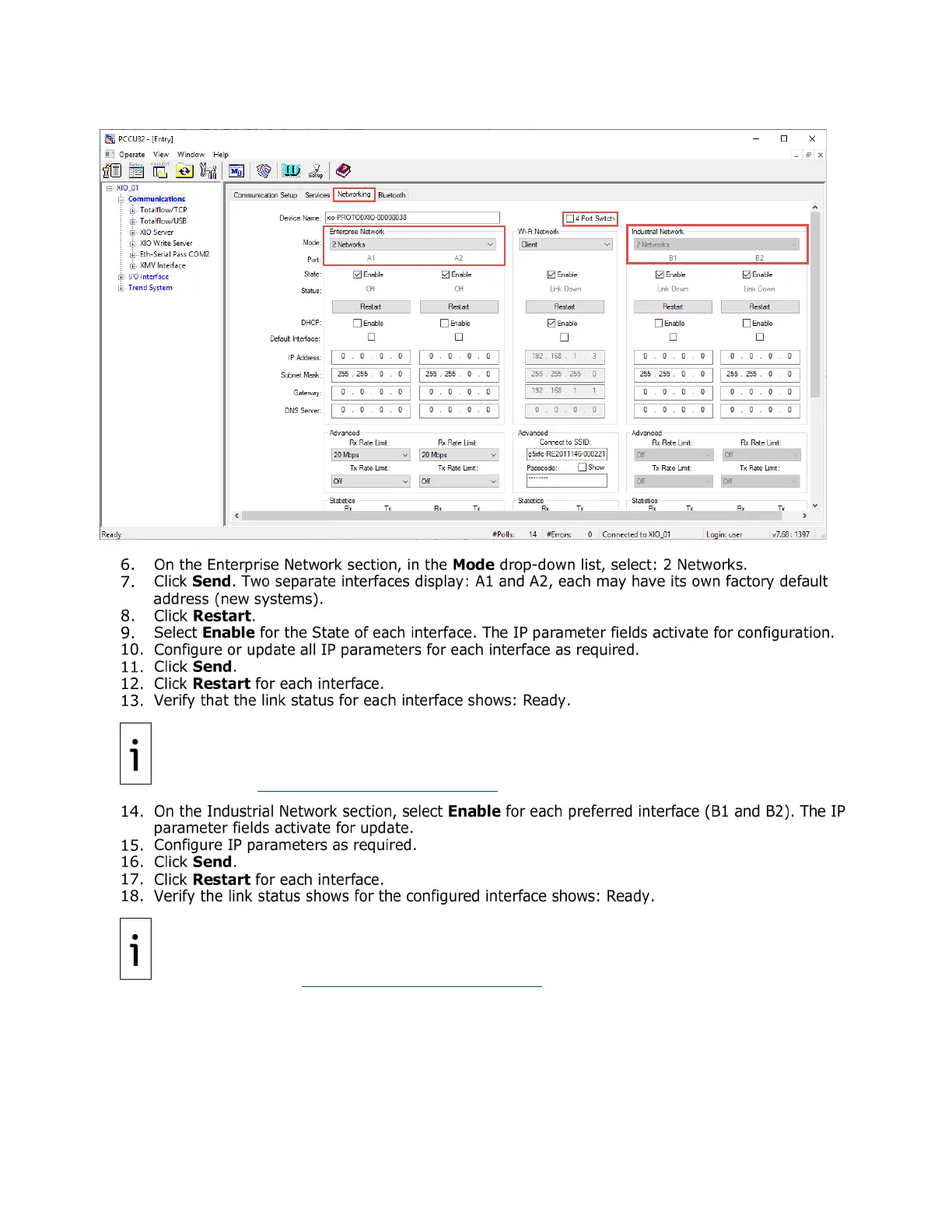

Figure 9-11: XIO 4 Network support (2 Enterprise and 2 Industrial Networks)
IMPORTANT NOTE:
After completing the configuration of each Enterprise interface, both A1 and
A2 should display as options in the Enterprise Interface drop
-down list in the XIO’s Port
Forwarding tab. If the XIO will be
used in port forwarding mode, define port forwarding rules.
See section
9.7.7 Define port forwarding rules.
IMPORTANT
NOTE: After completing the configuration of the Industrial interfaces, the enabled
interfaces (B1 and B2) should display as options in the Enterprise Interface drop
-down list in the
Port Forwarding tab. If the XIO will be used in port forwarding mode, defi
ne port forwarding
rules. See section
9.7.7 Define port forwarding rules.
9.7 Port forwarding
The XIO 3- or 4-network support provides options to separate connected Totalflow devices into different
logical networks. In addition to this capability, the XIO also supports port forwarding. When an XIO is in
port forwarding mode, it can be used as a gateway with specific rules to control access to other field
devices. For example, the XIO can be connected to the corporate network on one of its Ethernet interfaces
