XIO USER MANUAL | 2106424MNAB | 15
Legend: XIO housing base
The XIO has grounding clips attached to the bottom of the electronic board.
The grounding clips fit through the base grounding slots to contact the DIN rail when mounted. Be
sure to ground the DIN rail.
2.1.1 Enclosures
The XIO can be purchased installed in an enclosure. ABB offers the XCORE enclosures described in Tab l e
2-1. For more information and complete specifications, see www.abb.com/upstream.
Table 2-1: XCORE enclosures available
24 x 24 x 12 inches (61 x 61 x 30 cm)
45 pounds maximum (fully loaded system)
36 x 30 x 12 inches (91 x 76 x 30 cm)
75 pounds maximum (fully loaded system)

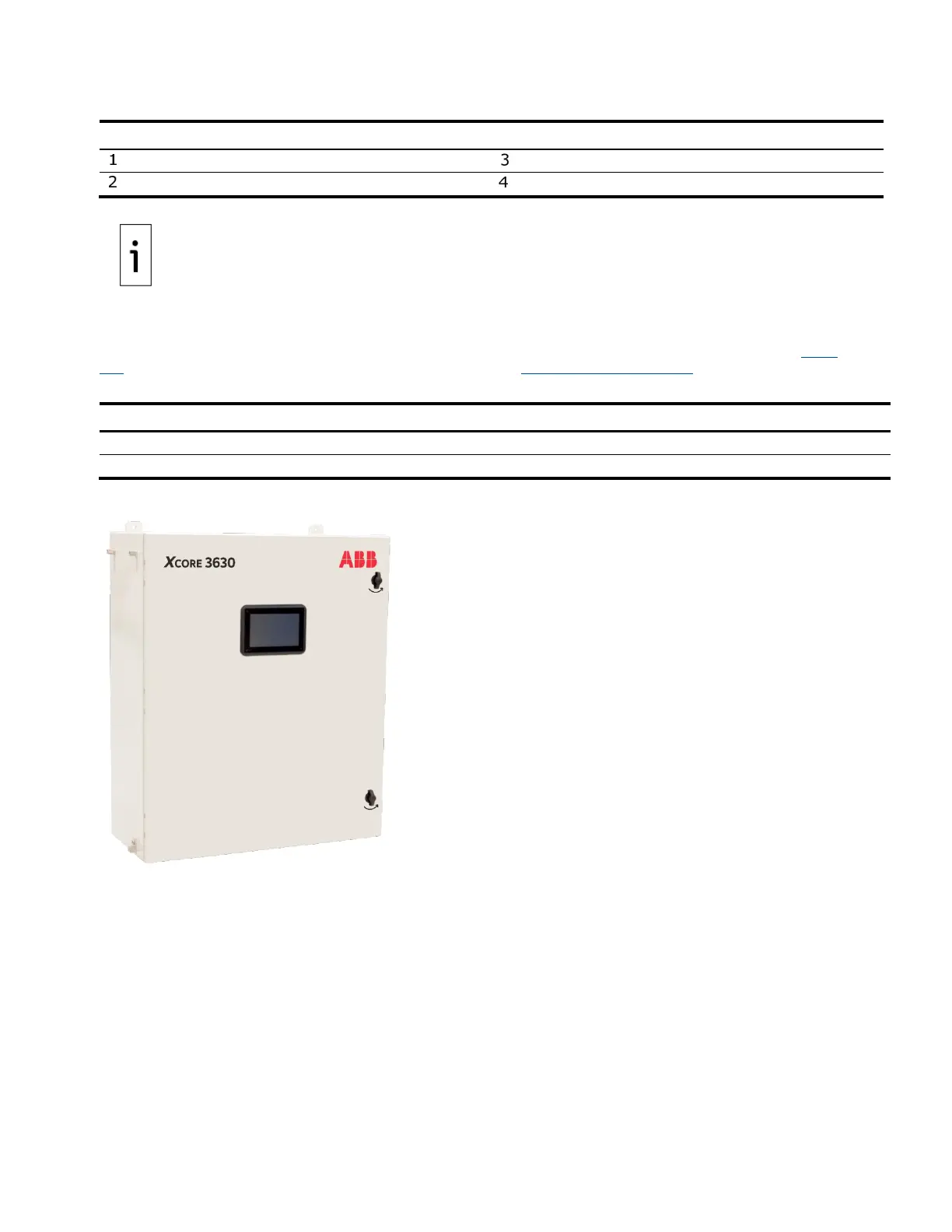

Figure 2-3: XCORE 3630 medium size enclosure (front view)
