204 | XIO USER MANUAL | 2106424MNAB
Obtain IP address
from Access Point
XIO performs the Wi-Fi client role.
Manually configure Access Point SSID and passcode
Ensure DHCP server in Access Point is supported and enabled.
Bridged
192.168.1.1
Default: DHCP
Server always
enabled
Wi-Fi clients (up to 10) can obtain their IP addresses from the
XIO DHCP server.
Wi-Fi Clients can use default XIO address to connect to the XIO.
10.3 Wireless network communication
The following sections depict scenarios for wireless access by hosts with Wi-Fi client support. They provide
additional detail to some of the connection scenarios summarized in section 10.1
Connections supported
by Wi-Fi modes.
For details and configuration procedures see the Network Communication
Guide (see link in Additional information).
10.3.1 Local point-to-point wireless access to XIO (Wi-Fi AP) by host
The XIO supports local wireless access by Wi-Fi clients. Wi-Fi clients can establish connections to the XIO
in all Wi-Fi modes:
– When there is only a single XIO with no other Totalflow Wi-Fi access point available, the XIO needs to
be configured as an access point for Wi-fi clients to connect. The Wi-Fi client detects and joins the
network advertised by the XIO. The connection is basically a point-to-point connection since no other
devices acts as clients to the XIO AP.

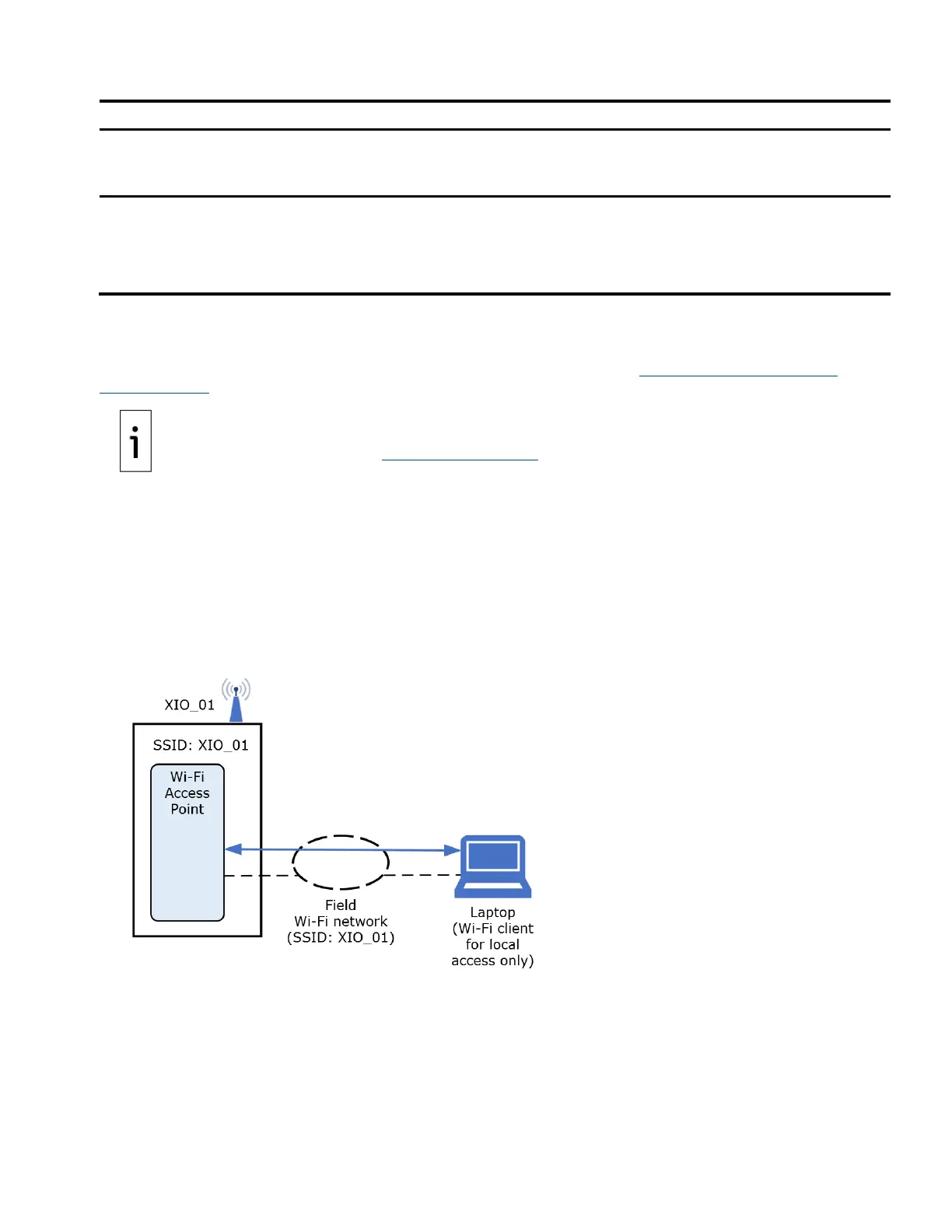

Figure 10-1: XIO Access Point: local access by operator
– When there are several XIOs, one may be configured as an access point and the others as clients. In
this scenario, the Wi-Fi client only joins a single wireless network, but can establish connection to all
XIOs on that network.
