ABB XIO-04 User Manual

112 | XIO USER MANUAL | 2106424MNAB

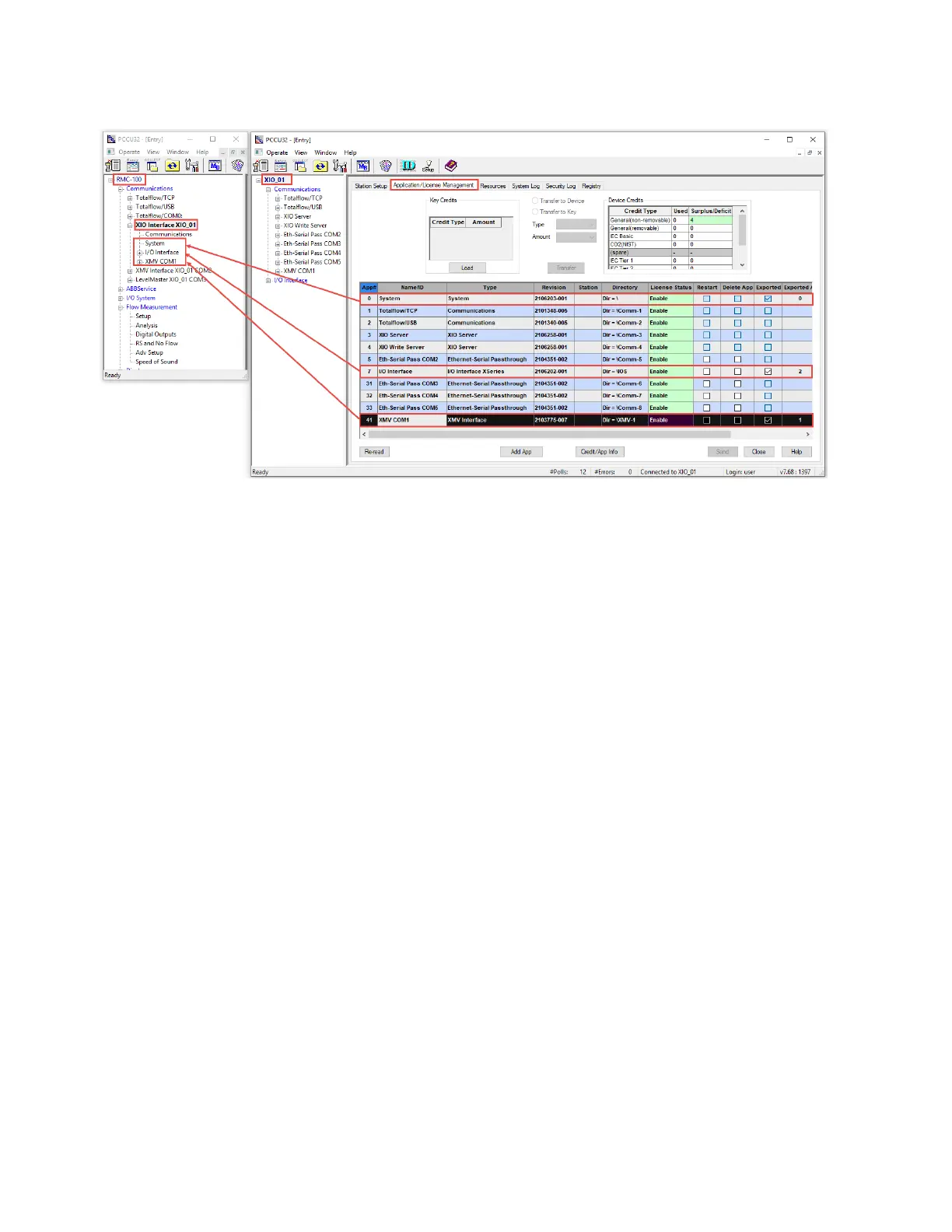

Figure 6-13: Exported XIO applications available on the RMC
6.3 RMC failure to receive data from XIO passthrough
The RMC-XIO communication through Ethernet-Serial passthrough requires assigning the desired COM
port, assigning a unique TCP port, and configuring the correct serial communication parameters. As with
any serial communication setup, parameters on the XIO must match the parameters of the RMC
application that is processing the data received from the XIO COM port.
If you are experiencing issues communicating when using the Ethernet-serial passthrough function, verify
the configuration on the XIO first and then troubleshoot serial communication. The following figure shows
an RMC XMV application configured for communication with an XIO which is unable to receive XMV data.

ABB XIO-04 Specifications

General

Brand	ABB
Model	XIO-04
Category	Control Unit
Language	English
