FUEL SUPPLY SYSTEM
4 -15
Pegaso 650 I.E.
To reassemble:
aCAUTION
Replace all the gaskets, O-rings, torsion springs,
bushes and seals. These components are supplied
with the repair kit.
NOTE The seals (14) (15) have different dimensions,
therefore do not invert them upon reassembly.
â—† Fit the new seals (14) (15) on both injector.

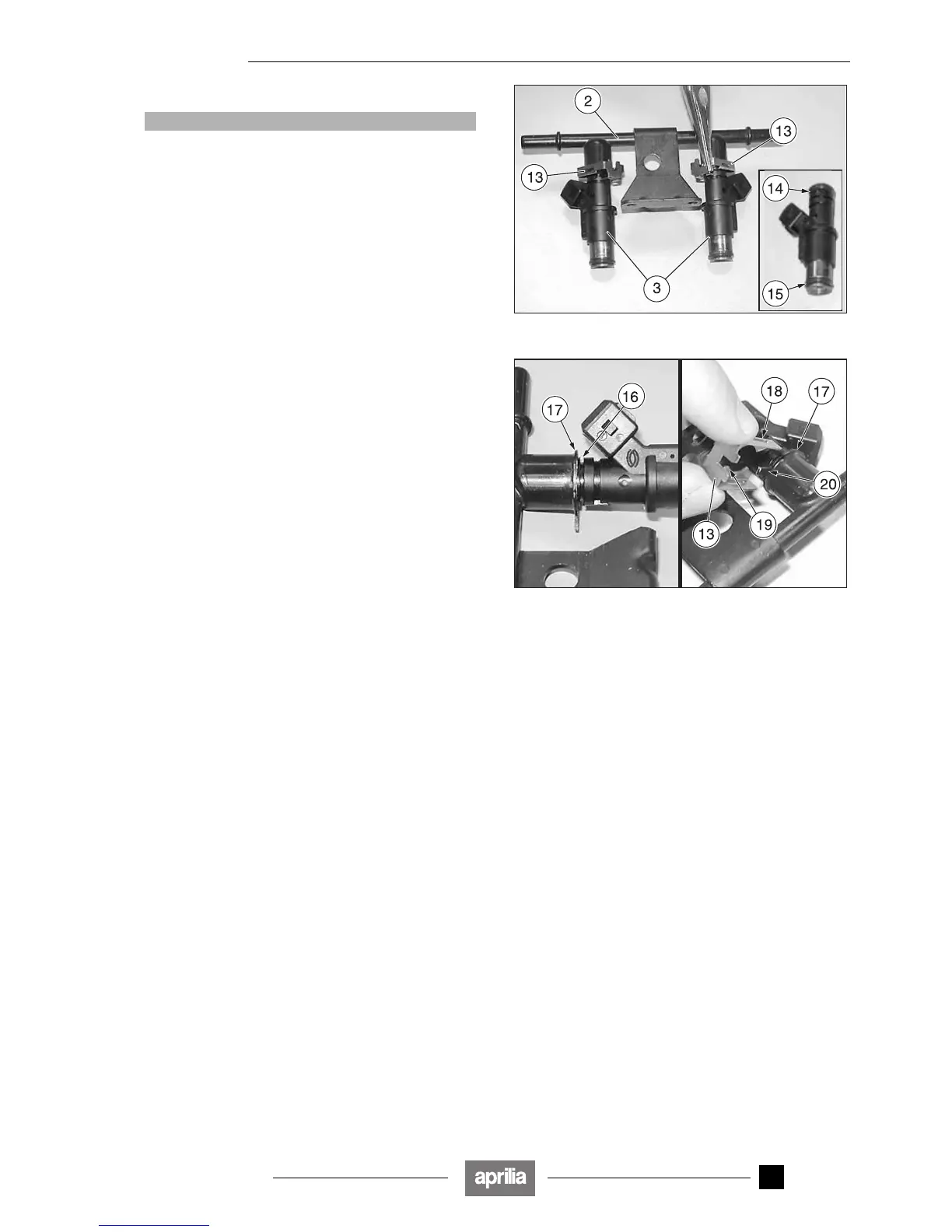

â—† Install the injectors (3) on the manifold (fuel rail), align-
ing the groove (16) with the edge of the injector seat
(17), (see figure).
NOTE Install the clips (13) making the seats (18) coin-
cide with the injector seat edge (17) and the seat (19) co-
incide with the tang (20).
â—† Install the clips (11) correctly .
â—† Install the manifold (fuel rail) (2) complete with injectors
(3) on the throttle body (1).
â—† Screw and tighten the screws (12).
â—† Connect the two rapid couplings (8) correctly.
â—† Connect the two connectors (9) (10) correctly .
See 6.5.5 (CHECKING THE INJECTORS) for the
checking procedure.
â—† Put back the saddle, see 7.1.7 (REMOVING THE SAD-
DLE).
