SERVICE AND SETTING UP
2 -18
Pegaso 650 I.E.
2.9.3 ADJUSTING THE ACCELERATOR CONTROL
For the maintenance intervals, see 2.1.1 (REGULAR
SERVICE INTERVALS CHART) under:
– Transmission cables and controls.
For the check, proceed as follows:

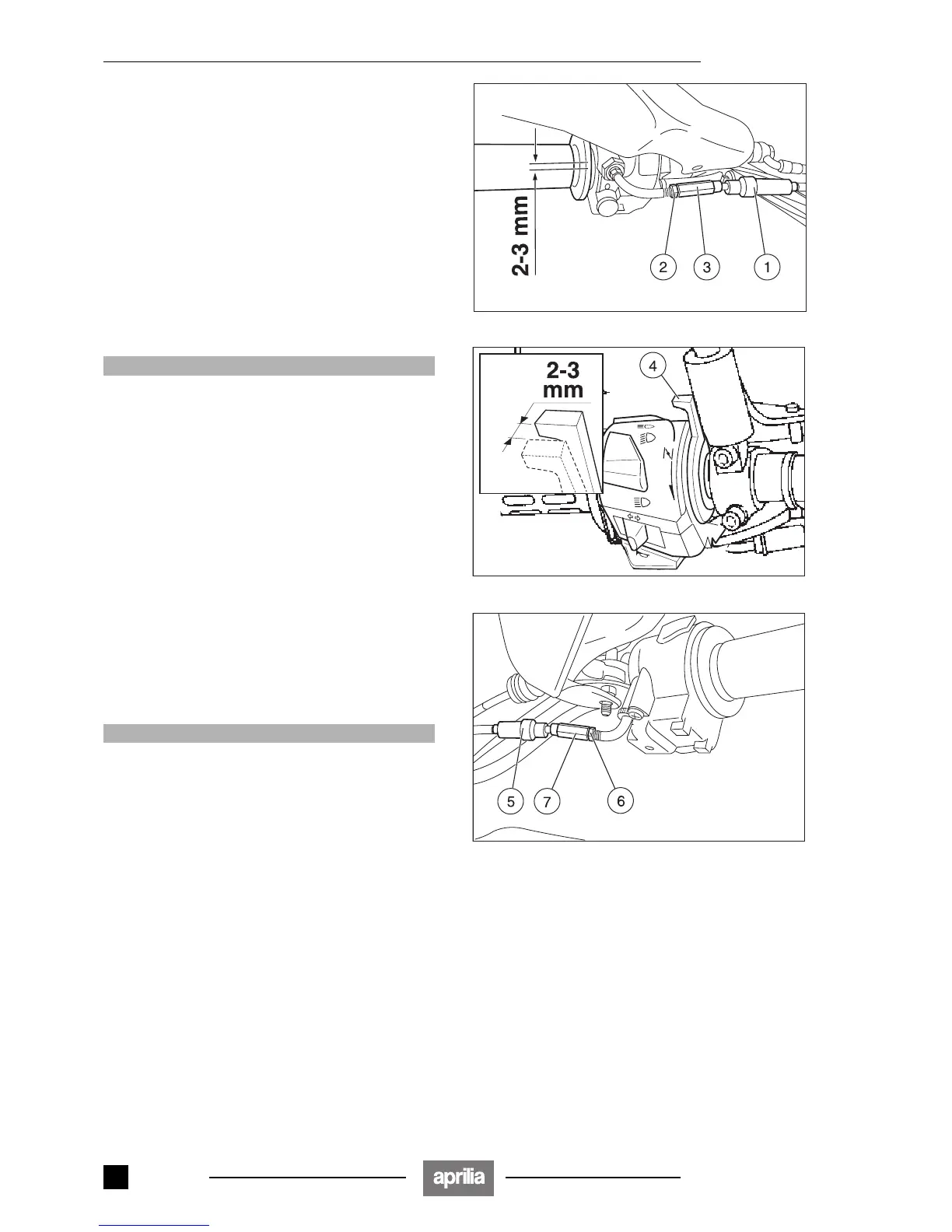

The idle stroke of the throttle grip must be 2 – 3 mm,
measured on the edge of the grip itself.
If not, proceed as follows:
â—† Position the vehicle on the stand.
â—† Withdraw the protection element (1).
â—† Loosen the lock nut (2).
â—† Rotate the adjuster (3) in such a way as to restore the
prescribed value.
â—† After the adjustment, tighten the lock nut (2) and check
the idle stroke again.
â—† Put back the protection element (1).
aCAUTION
After the adjustment, make sure that the rotation of
the handlebar does not modify the engine idling rpm
and that the throttle grip returns smoothly and auto-
matically to its original position after being released.
î˜ î˜›î˜ˆî˜‰ #/,$34!24#!",%
For the maintenance intervals, see 2.1.1 (REGULAR
SERVICE INTERVALS CHART) under:
– Transmission cables and controls.
The cold start cable must be adjusted so that the hand le-
ver (4) has 2 – 3 mm of freeplay.
If not, proceed as follows:
â—† Position the vehicle on the stand.
â—† Withdraw the protection element (5).
â—† Loosen the lock nut (6).
â—† Rotate the adjuster (7) in such a way as to restore the
prescribed value.
â—† After the adjustment, tighten the lock nut (6) and check
the idle stroke again.
â—† Put back the protection element (5).
aCAUTION
After the adjustment, make sure that the rotation of the
handlebar does not modify the engine idling rpm.
Release 00/2002-02
- 00
