CHASSIS
7 -48
Pegaso 650 I.E.
7.3.10 FINAL DRIVE UNIT BEARINGS
Carry out the check with the bearings mounted on the fi-
nal drive unit.
CHECKING THE ROTATION

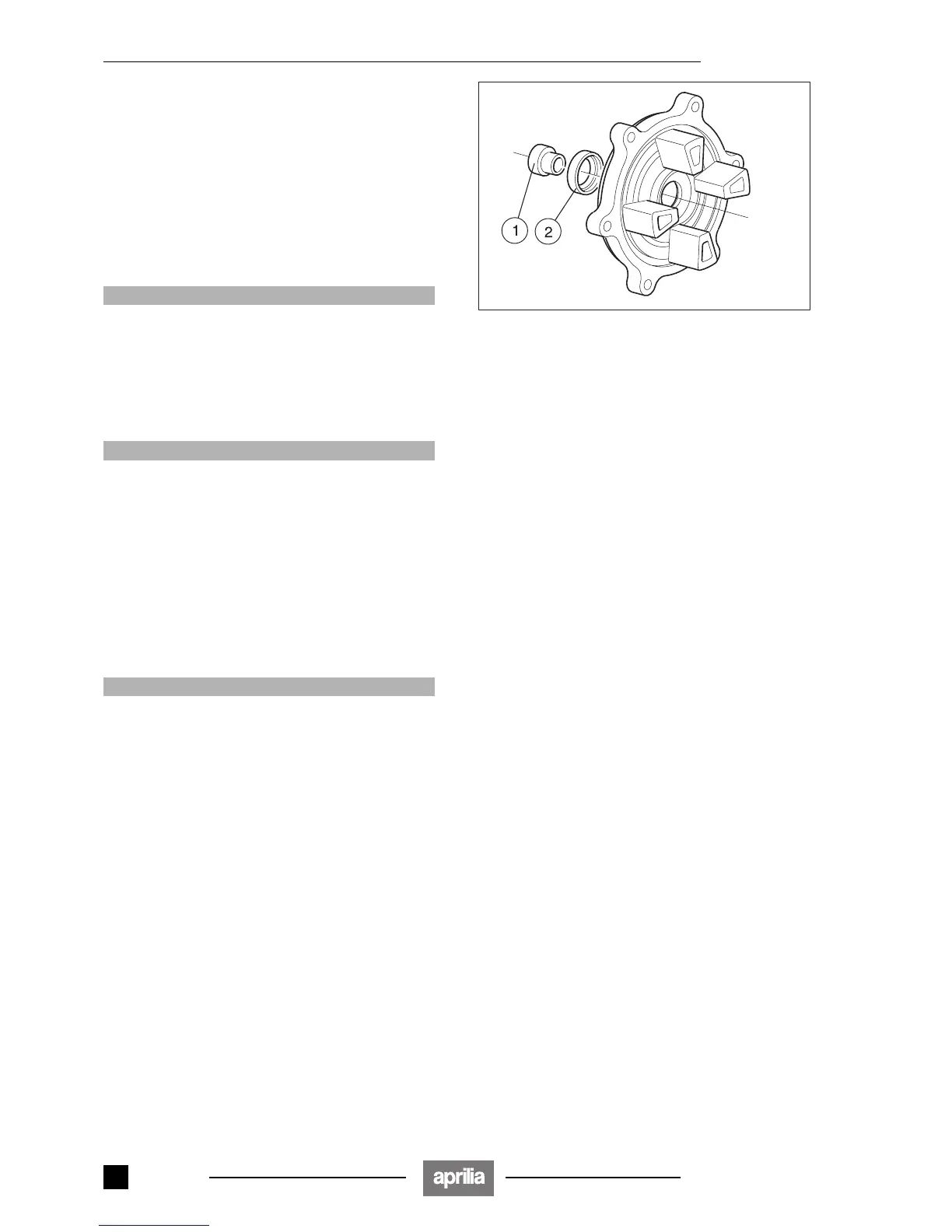

â—† Remove the right spacer (1).
â—† Manually rotate the inner ring of each single bearing.
The rotation must be regular, smooth and noiseless.
If the bearing is not in compliance with the check param-
eters:
â—† Remove the seal (2).
â—† Wash the bearing with a clean detergent.
aCAUTION
Prevent the compressed air from making the bear-
ings turn, since this would damage them.
â—† Dry the bearing with compressed air.
If the bearing is not in compliance with the check param-
eters:
â—† Change the final drive unit bearing, see 7.3.16 (AS-
SEMBLING THE FINAL DRIVE UNIT BEARINGS).
aWARNING
Always change both bearings.
Always replace the bearings with bearings of the
same type.
CHECKING THE END AND RADIAL PLAY
â—† Check the radial play and the end play.
End play: a minimum end play is allowed.
Radial play: none.
If the bearing is not in compliance with the check param-
eters:
â—† Change the final drive unit bearing, see 7.3.16 (AS-
SEMBLING THE FINAL DRIVE UNIT BEARINGS).
aWARNING
Always change both bearings.
Always replace the bearings with bearings of the
same type.
Release 00/2002-02
- 00
