CHASSIS
7 -12
Pegaso 650 I.E.

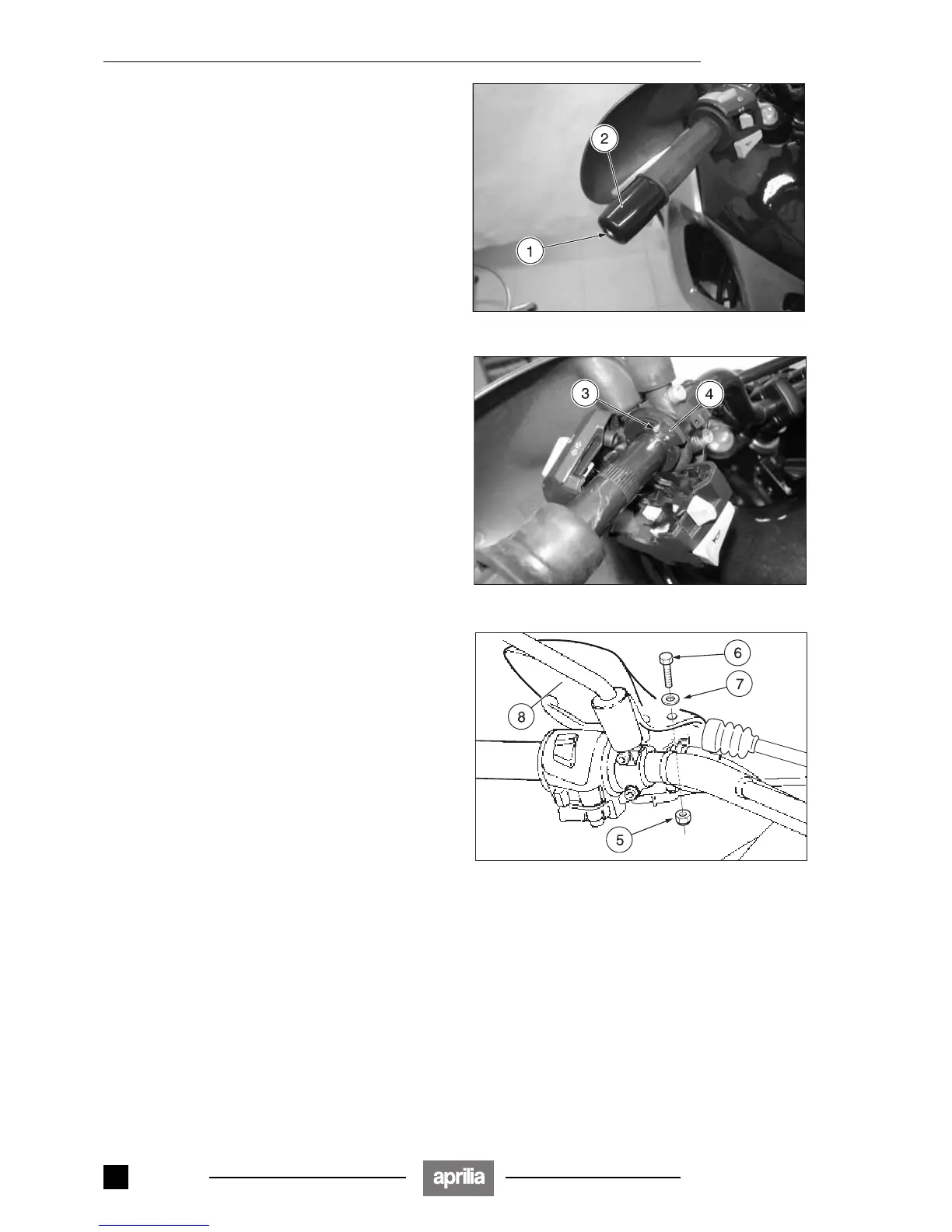

7.1.11 REMOVING THE ANTIVIBRATION WEIGHT
Carefully read 0.5.1 (PRECAUTIONS AND GENERAL
INFORMATIONS).
NOTE The following information refers to one unit only,
but is valid for both.
â—† Position the vehicle on the stand.
â—† Unscrew and remove the screw (1).
Antivibration weight screw driving torque: 10 Nm (1.0
kgm).
â—† Remove the antivibration weight (2).
7.1.12 REMOVING THE COLD-START CONTROL
â—† Remove the handlebar left grip, see 7.1.14 (REMOV-
ING THE HANDGRIP).
â—† Partially remove the electric controls on the left side,
see 7.1.16 (REMOVING THE ELECTRIC CONTROLS
ON THE LEFT SIDE OF THE HANDLEBAR).
â—† Disconnect the cold-start cable (3).
â—† Pull the cold-start control (4).
7.1.13 REMOVING THE HAND GUARDS
Carefully read 0.5.1 (PRECAUTIONS AND GENERAL
INFORMATIONS).
â—† Lock the rotation of the nut (5).
â—† Unscrew and remove the screw (6), taking the washer
(7).
â—† Remove the hand guards (8).
Release 00/2002-02
- 00
