7 -17
CHASSIS
Pegaso 650 I.E.
Follow
ã
â—† Remove the right hand guards, see 7.1.13 (REMOV-
ING THE HAND GUARDS).

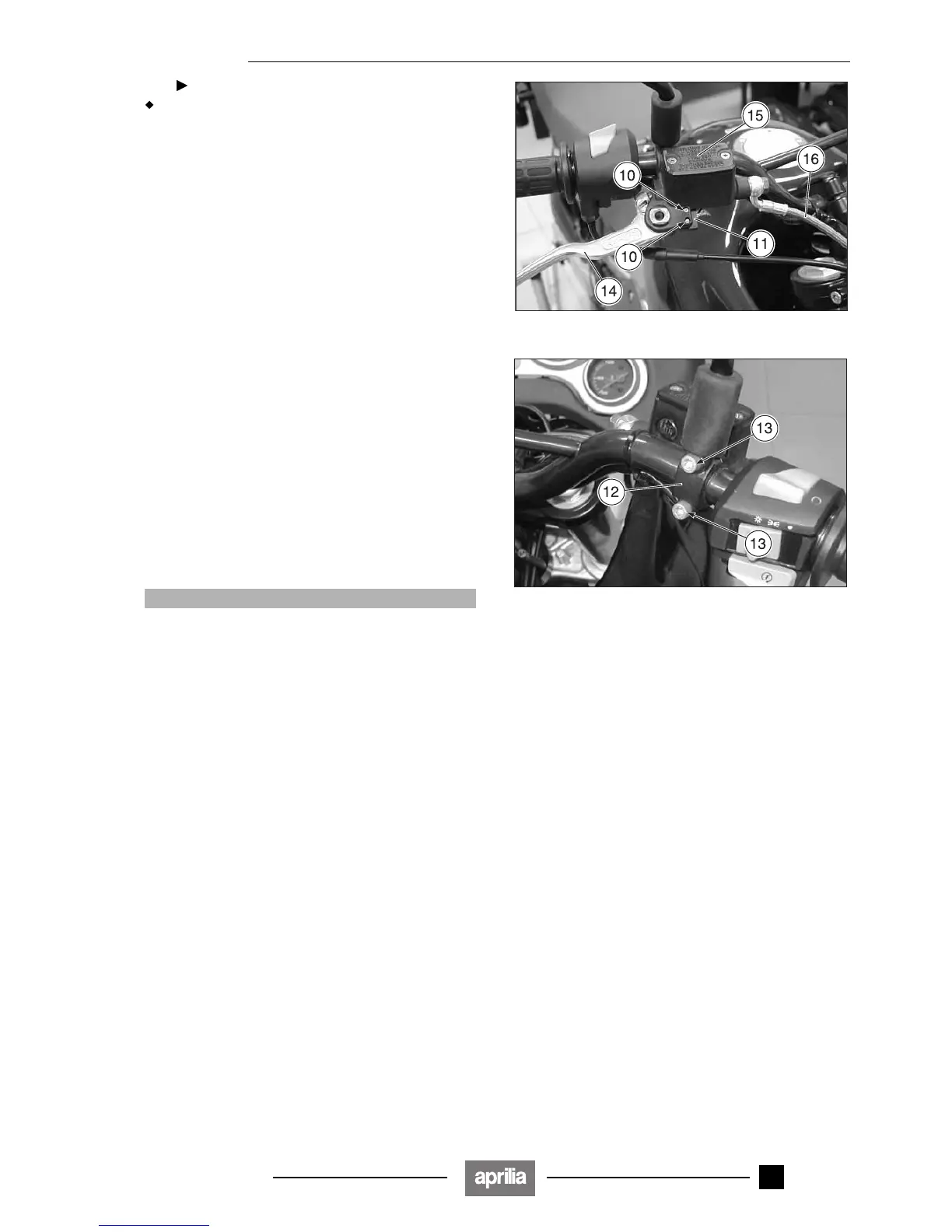

â—† Unscrew and remove the two screws (10) that fasten
the stop light switch (11) and take the nuts.
NOTE Before removing the U bolt (12), mark its posi-
tion on the handlebar so it can be refitted in the right
place.
â—† Unscrew and remove the two U bolt screws (13).
U bolt screw driving torque: 10 Nm (1.0 kgm).
â—† Remove the U bolt (12).
â—† Remove the front brake control (14) complete with front
brake reservoir (15).
PARTIAL REMOVAL
NOTE Before removing the U bolt (12), mark its posi-
tion on the handlebar so it can be refitted in the right
place.
â—† Unscrew and remove the two U bolt screws (13).
U bolt screw driving torque: 10 Nm (1.0 kgm).
â—† Remove the U bolt (12).
The following elements remain connected to the front
brake control (14) complete with front brake reservoir
(15).
– front brake fluid pipe (16);
– the rear brake light switch (10).
aCAUTION
Do not force pipes and cables.
To avoid dangerous brake fluid leakages, keep the
front brake reservoir (15) in operating position (verti-
cal).
â—† Partially remove the front brake lever (14).
Release 00/2002-02
- 00
