7 -29
CHASSIS
Pegaso 650 I.E.
COMPLETE REMOVAL

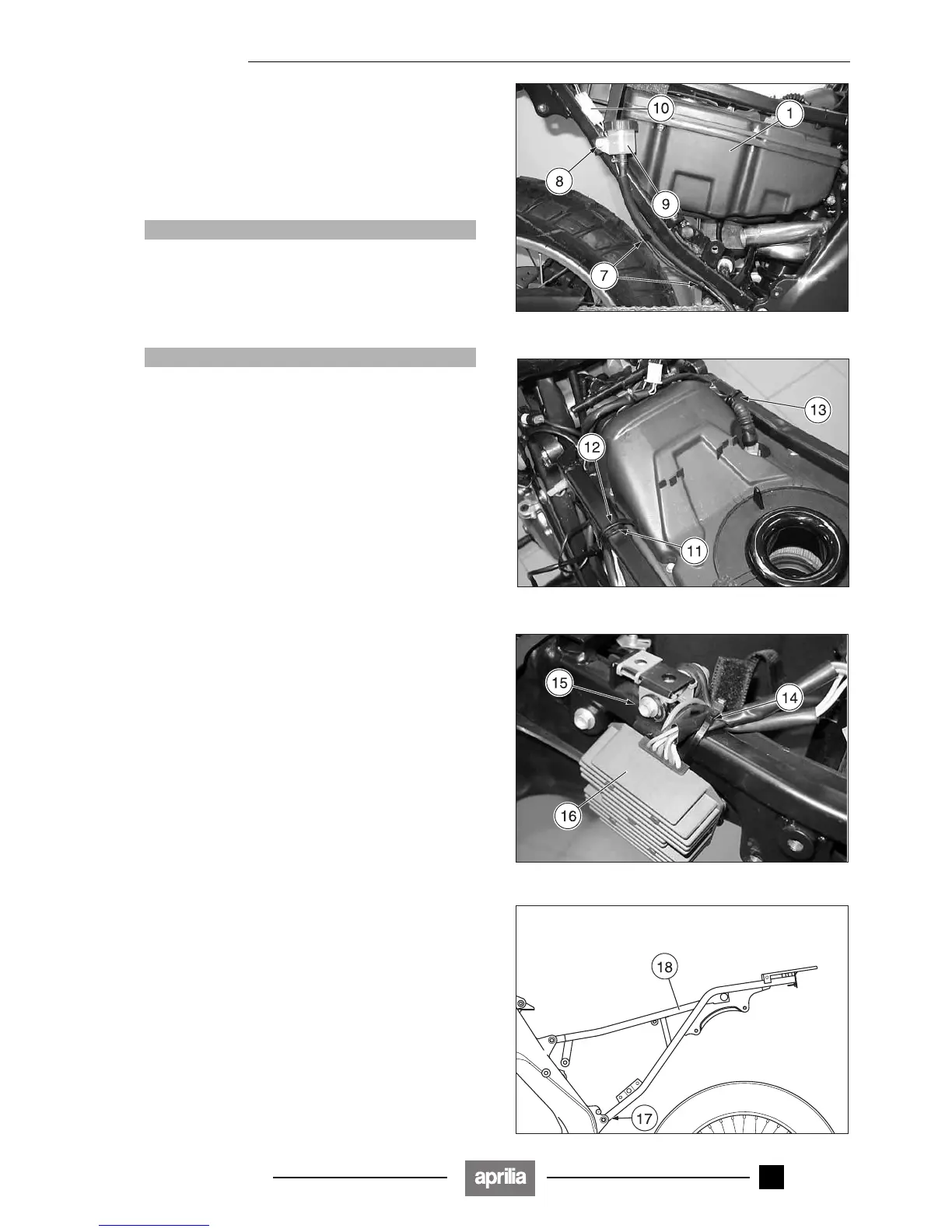

â—† Slightly open the two tangs (7), releasing the pipe and
the electric cable.
â—† Unscrew and remove the screw (8) and take the wash-
er.
Rear brake fluid tank screw driving torque: 3 Nm (0.3
kgm).
aCAUTION
Take care to keep the rear brake reservoir (9) in verti-
cal position, so that it does not overturn and the fluid
does not flow out.
â—† Disconnect the electric connector (10).
â—† Loosen the clamps (11) (12) (13).
â—† Release the clamp (14).
aCAUTION
Procure an equal number of clamps to be used for re-
fitting.
â—† Unscrew and remove the screw (15).
Regulator support screw driving torque: 10 Nm (1.0
kgm).
â—† Remove the voltage regulator (16), complete with sup-
port.
â—† Carry out the partial removal of the saddle pillar (see
above).
â—† Remove the saddle lock, see 7.1.30 (REMOVING THE
SADDLE LOCK).
â—† Remove the luggage rack, see 7.1.5 (REMOVING THE
REAR LUGGAGE RACK).
â—† Remove the glove compartment, see 7.1.32 (REMOV-
ING THE GLOVE COMPARTMENT).
â—† Remove the filter casing (1), see 7.1.9 (REMOVING
THE AIR CLEANER CASE).
~ Unscrew and remove the screw (17) and take the
washer.
Saddle pillar lower screw driving torque: 25 Nm (2.5
kgm).
â—† Remove the saddle support (18).
Release 00/2002-02
- 00
