7 -67
CHASSIS
Pegaso 650 I.E.
aCAUTION
Prepare a new clamp to replace the original.
â—† Loosen and move the pipe clamp (9).
â—† Slide the pipe (10) from its fitting on the pump.
â—† Put a nylon bag on the pipe (10) and fix it to the pipe
with adhesive tape.
â—† Carry out the first five operations indicated for the PAR-
TIAL REMOVAL.
NOTE When reassembling, top up the brake fluid, see
2.16 (CHECKING AND TOPPING UP THE REAR
BRAKE FLUID) and bleed the braking system, see 2.17
(BLEEDING THE BRAKING SYSTEMS).
PARTIAL REMOVAL
â—† Unscrew and remove the two screws (1), taking the
bushes and the nuts.
Rear brake pump screw driving torque: 10 Nm (1.0
kgm).
â—† Remove the protection element (2).
aCAUTION
Upon reassembly, correctly position the cable (3) in
the seat (4).
â—† Release the spring (11) and remove it from the ball joint
(12).
â—† Release the ball joint (12) from the seat.
aCAUTION
Do not force the brake pipes.

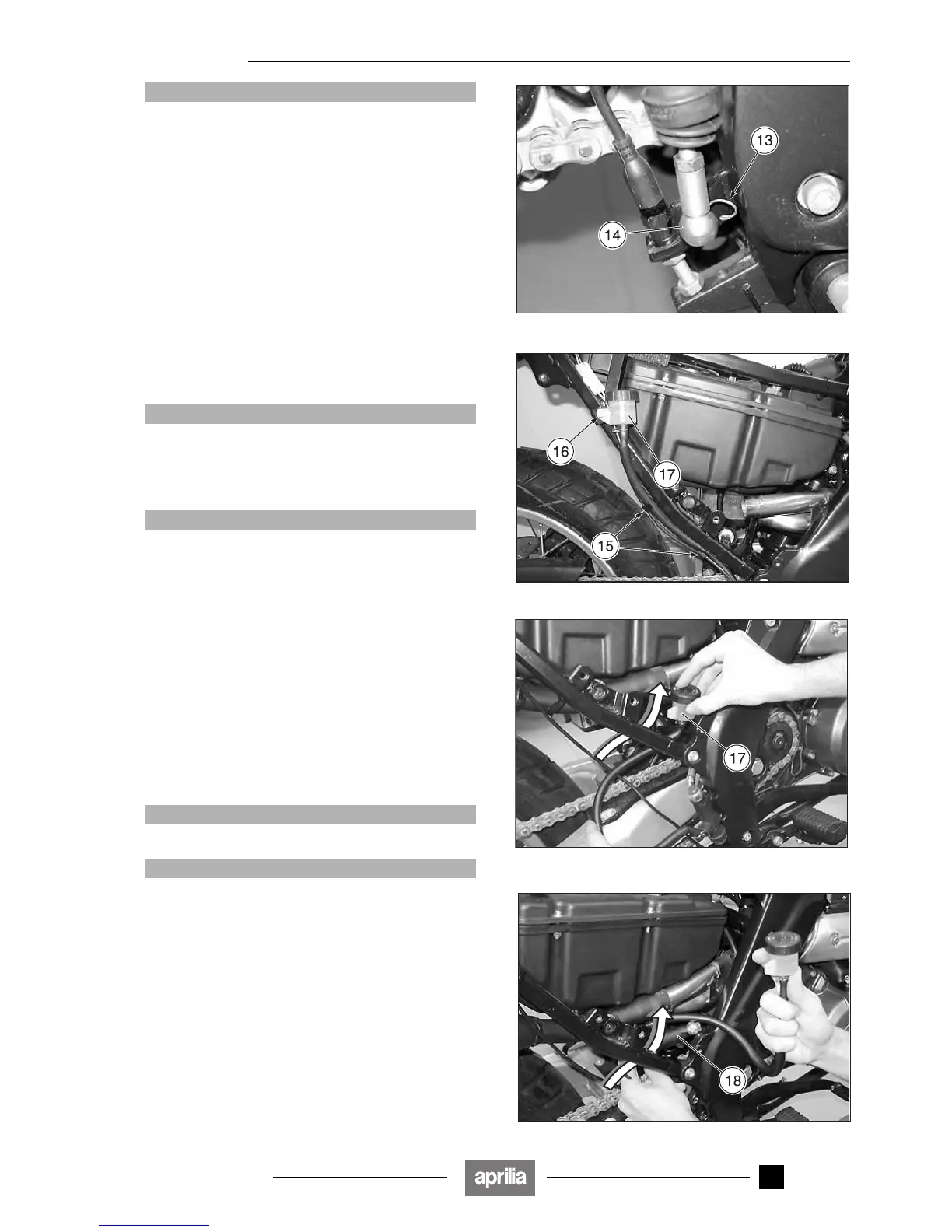

â—† Remove the pump (13), leaving it constrained to the
coupling (7) and to the pipe (10) (or releasing it if you
are carrying out a COMPLETE REMOVAL).
â—† Remove the right passenger footrest unit, see 7.1.33
(REMOVING THE PASSENGER FOOTREST
GROUP).
COMPLETE REMOVAL
â—† Slightly open the two tangs (15), releasing the pipe and
the electric cable.
â—† Unscrew and remove the screw (16) and take the
washer.
Rear brake fluid tank screw driving torque: 3 Nm (0.3
kgm).
aCAUTION
Do not force the brake pipe.
aCAUTION
When moving the rear brake reservoir (17), keep it in
vertical position, in such a way as to prevent air bub-
bles from getting into the braking system.
â—† Grasp the rear brake reservoir (17) and pass it between
the saddle pillar and the exhaust silencer pipes (see
figure).
â—† Repeat the previous operation for the rear brake pump
(18) (see figure).
Release 00/2002-02
- 00
