CHASSIS
7 - 84
Pegaso 650 I.E.
Follow
ã

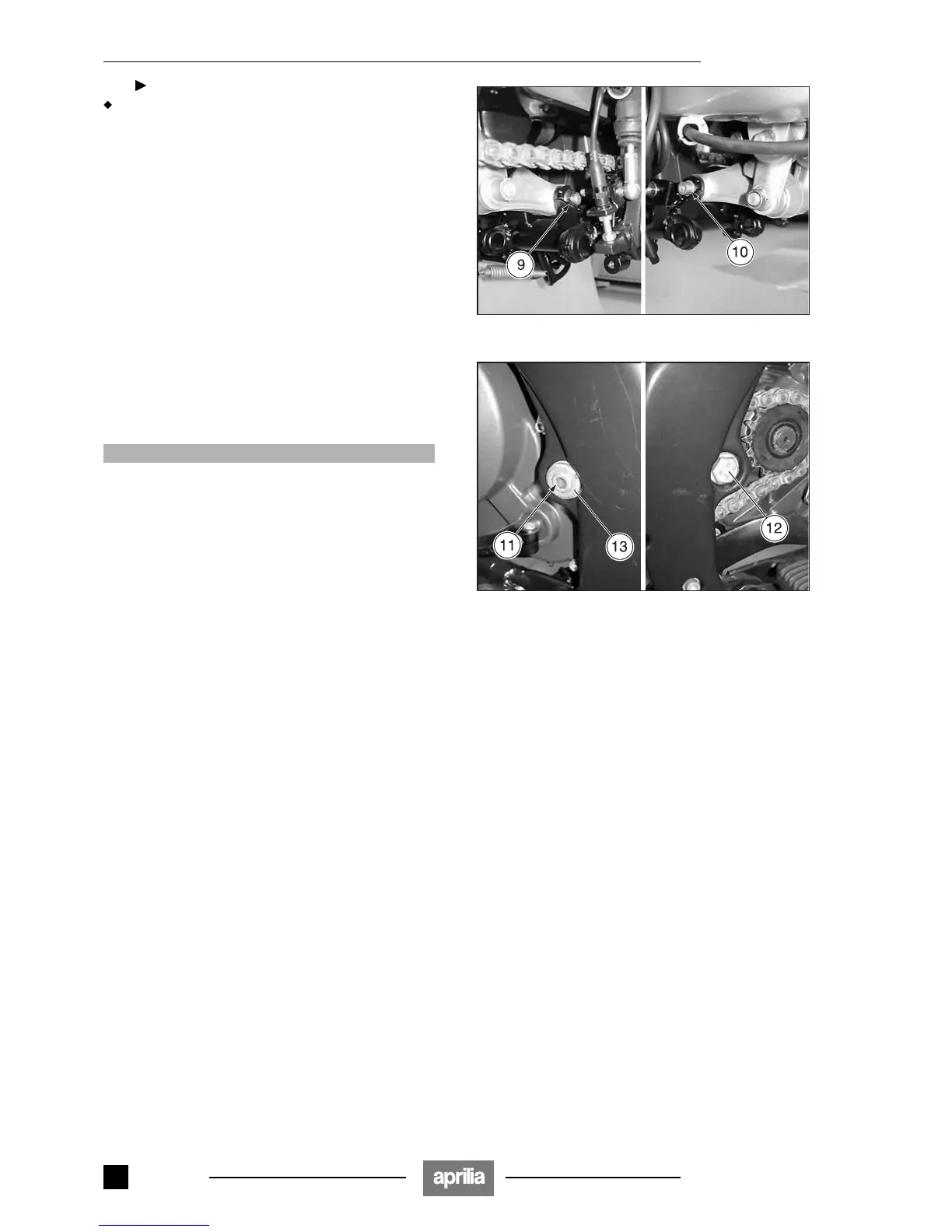

â—† Loosen and remove the nut (9), taking the washer.
Double connection element front nut-screw driving
torque: 50 Nm (5.0 kgm).
â—† Unscrew the screw (10) and retrieve the bush.
NOTE NOTA (A) For the reassembly the rear fork, from
this point on follow the specific procedures, see 7.9.7
(REASSEMBLING THE REAR FORK).
â—† Partially unscrew the pin (12), holding the bush (11) in
its position.
Fork pin driving torque: 100 Nm (10.0 kgm).
â—† Hold the bush (11) in its position, unscrew and remove
the locking metal ring (13) using the appropriate socket
spanner, see 1.7 (SPECIAL TOOLS m), then take the
washer.
Fork pin metal ring driving torque: 35 Nm (3.5 kgm).
â—† Unscrew the pin completely.
aCAUTION
Support the rear fork and the shock absorber frontal-
ly.
â—† Withdraw and remove the pin (12) and take the wash-
ers.
â—† Remove the rear fork together with the wheel, the sus-
pension unit and the brake unit.
Release 00/2002-02
- 00
