10. Integrator rod

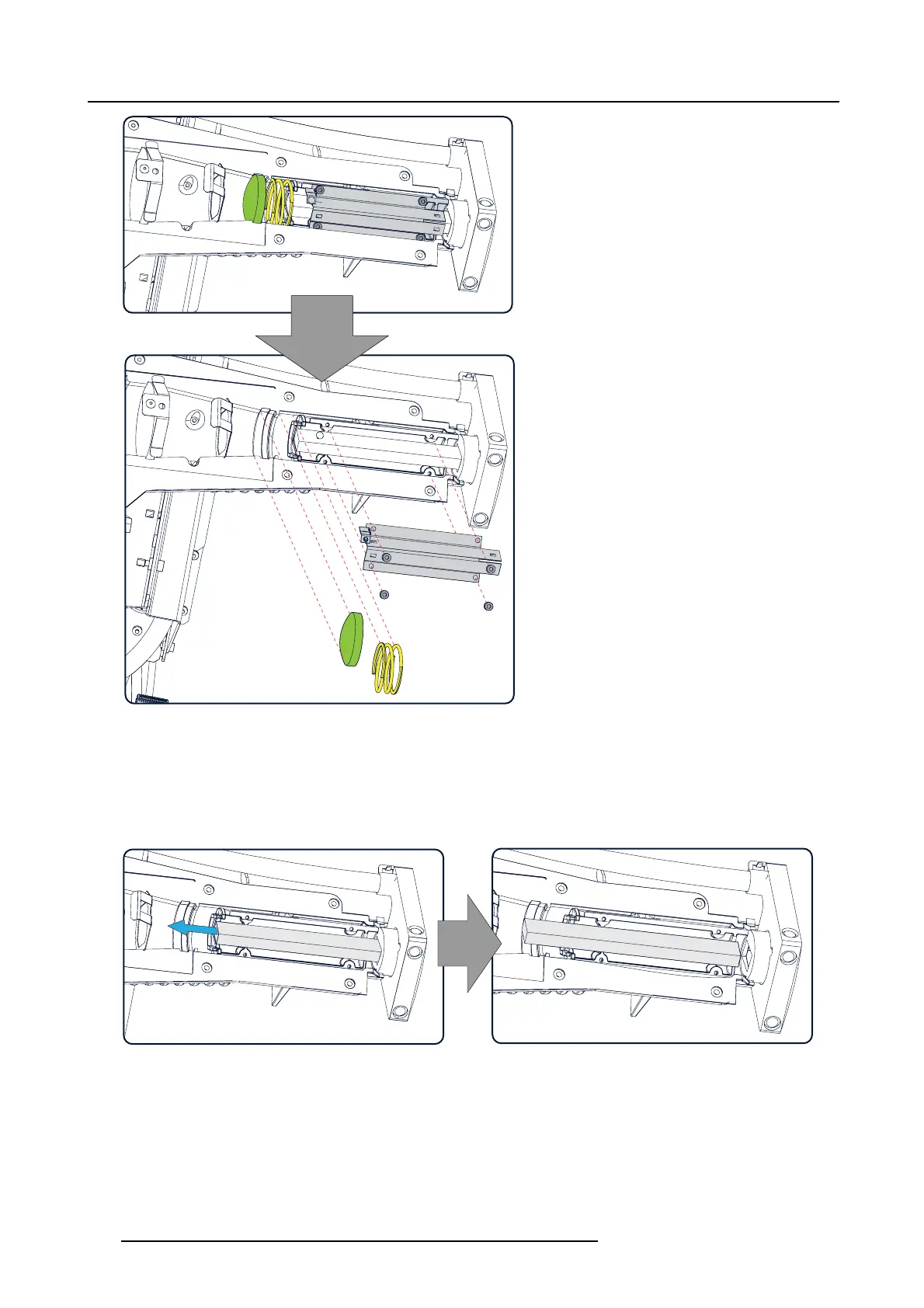

Image 10-5
Inner side light processor
5. Take out the lens.
6. Squeeze the spring and take it out.
7. Remove the 4 screws of the rod cover.
8. Slide the rod to the left until it comes out of the cooling block.
Then, take out the rod.
Image 10-6
Moving rod
172 R5905043 DP2K-12C/11CX 19/02/2018
