5. Removal and installation of projector covers
5.1 Removal of the lamp cover
WARNING: This procedure may only be performed by qualified technical service p ersonnel.
Necessary tools
Flat screw driver.

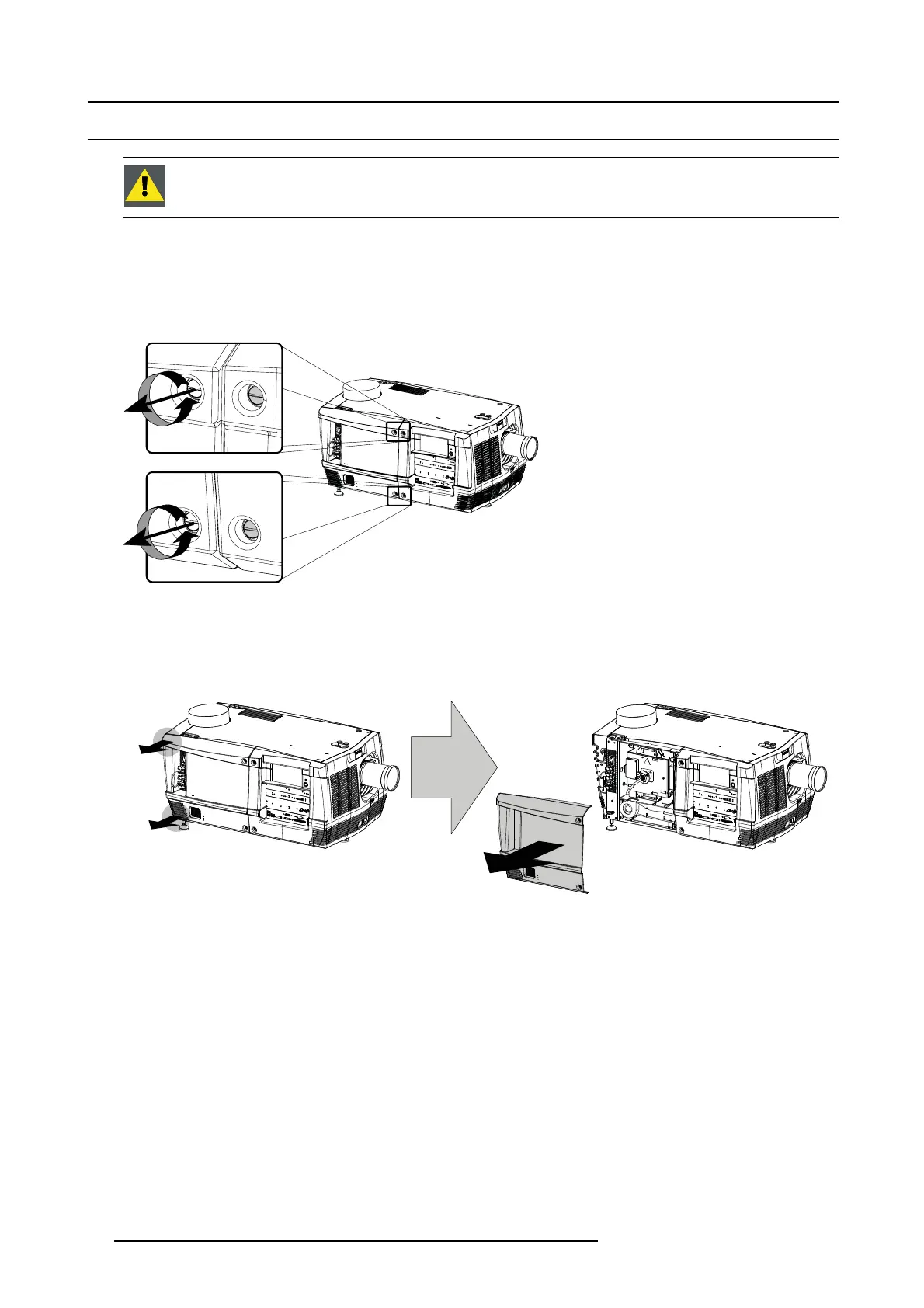

How to remove the lamp cover of t he projector?
1. Release the two captive screws at the right side, top and bottom, of the lamp cover, using a fla t scre w driver.
Image 5-1
Release lamp cover
2. Remove the lamp c over from the projec tor doing the following:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull ou t the left top corner (B) of the lamp cover,
c) then m ove the lamp cover away f rom the projector (C).
B
A
C
Image 5-2
Remove lamp cover
78 R5905043 DP2K-12C/11CX 19/02/2018
