20. Fan replacement procedure
20.6 Cold mirror fan
Preparations
1. Remove the covers to get access to the cold mirror fan.
2. Remove the cover plat of the se aled compartment.
How to replace
1. Remove the cover of the Start Pulse Generator as illustrated. This cover is s ecured with 5 hexagon socket head cap screws.
Use a 3 mm Allen wrench.

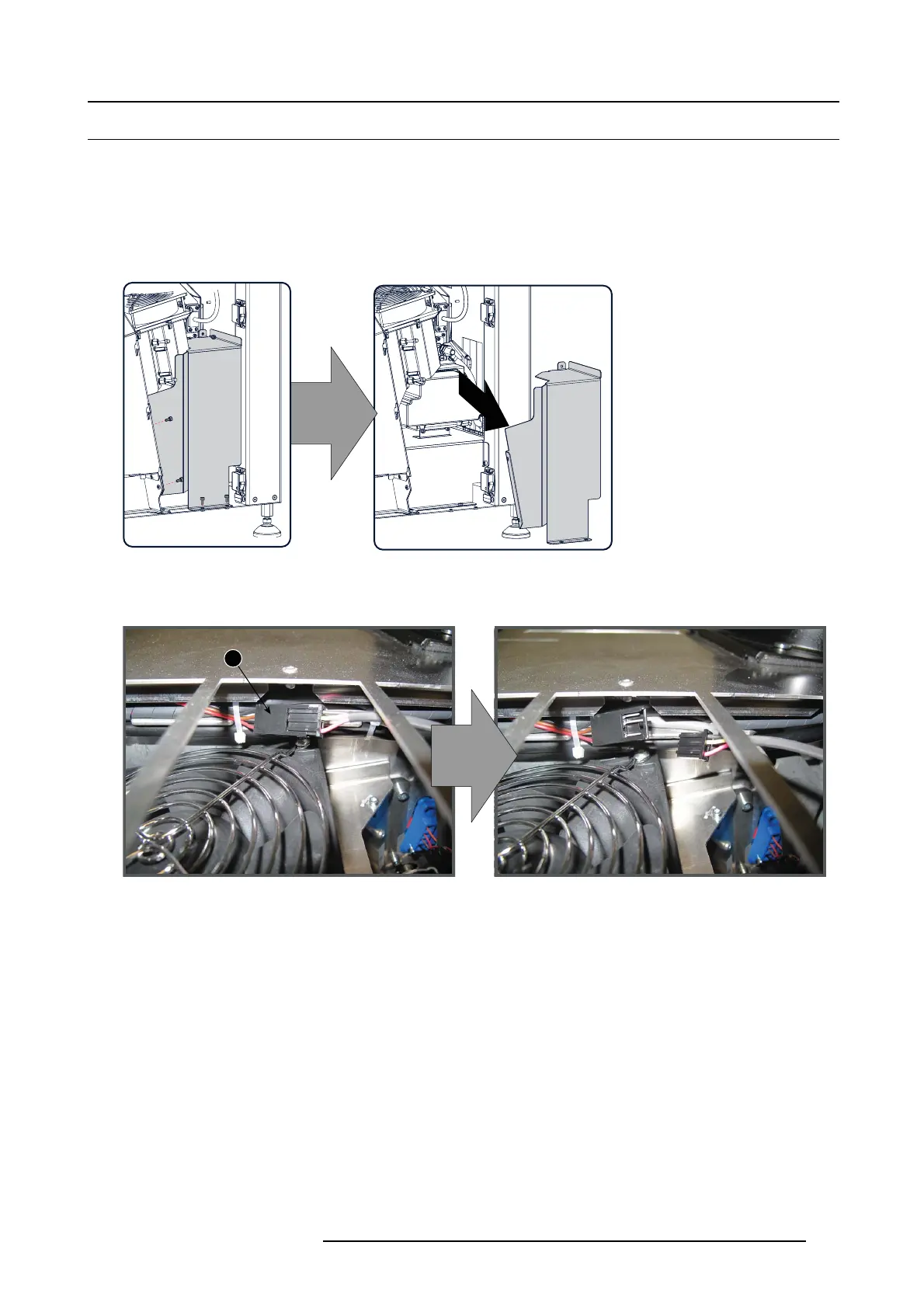

Image 20-27
Remove SPG cover
2. Disconnect the fan wire (reference 1).
Tip: Pull out the top filter for easy access to the fan wire connection.
1
Image 20-28
Electri cal disconnection
3. Turn o ut the 2 hexagon socket head c ap sc rews at the r ight side (reference 2).
R5905043 DP2K-12C/11CX 19/02/2018
327
