11. Lenses and Lens holder
11.3 Lens removal
How to remove a lens from t he projector lens holder ?

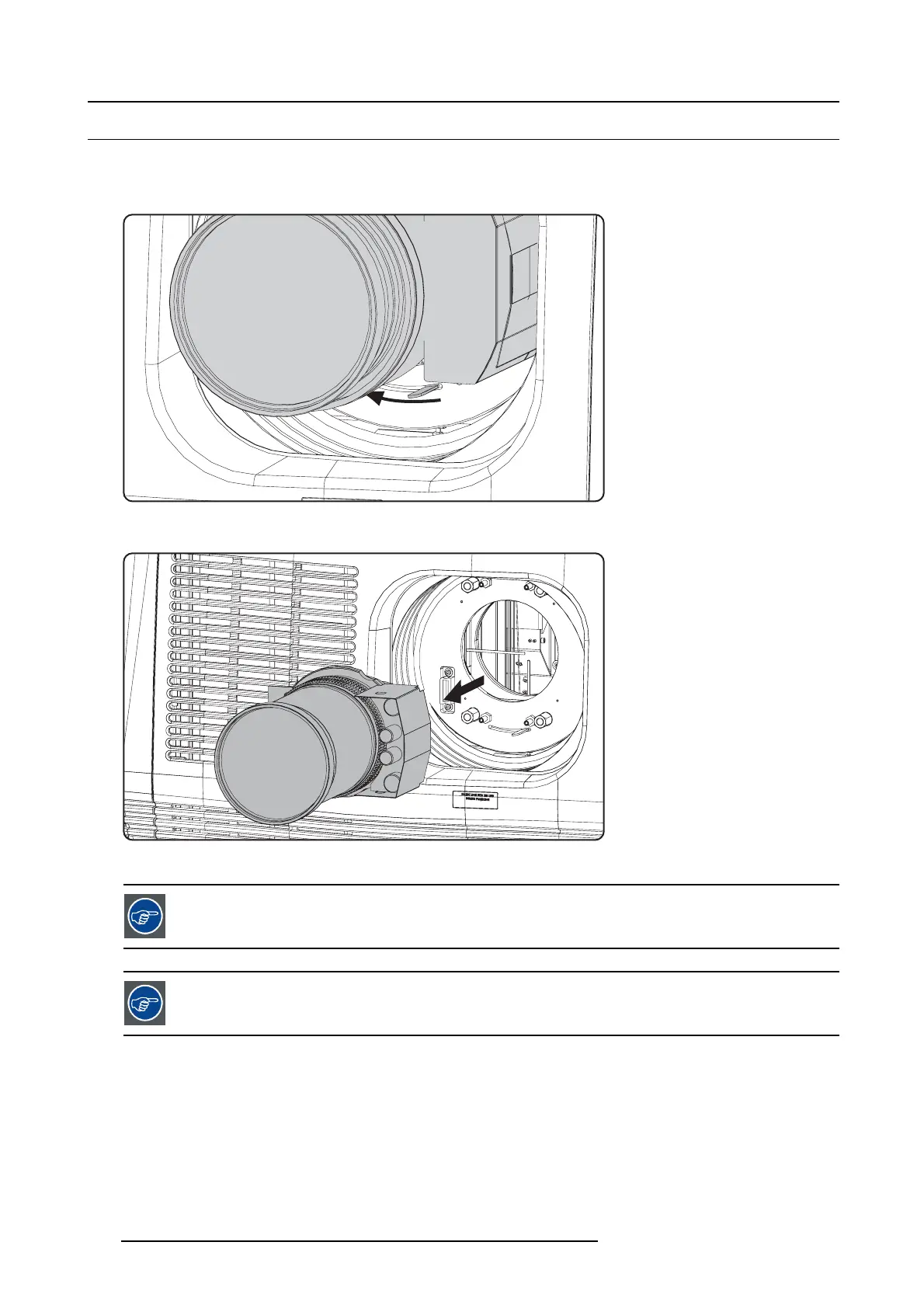

1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as
illustrated.
Image 11-7
2. Gently pull the lens out of the lens holder.
Image 11-8
Remove lens
It’s recomme nded t o place the Lens caps of the original L ens packag ing, back on both sides of the removed
Lens to protect the optics of the Lens.
It’s recommen ded to place the f oam rubber of the original projector p ackaging, back into the Lens opening to
prevent intrusion of dust. Note that this foam ru bber is packed in a p lastic b ag to p revent the dust, emitted by
the foam, from e nteri ng th
e pro jector.
182 R5905043 DP2K-12C/11CX 19/02/2018
