5. Removal and installation of projector covers
5.4 Removal of the side cover
Necessary tools
Flat screw driver.
How to remove the side cover of the projector?

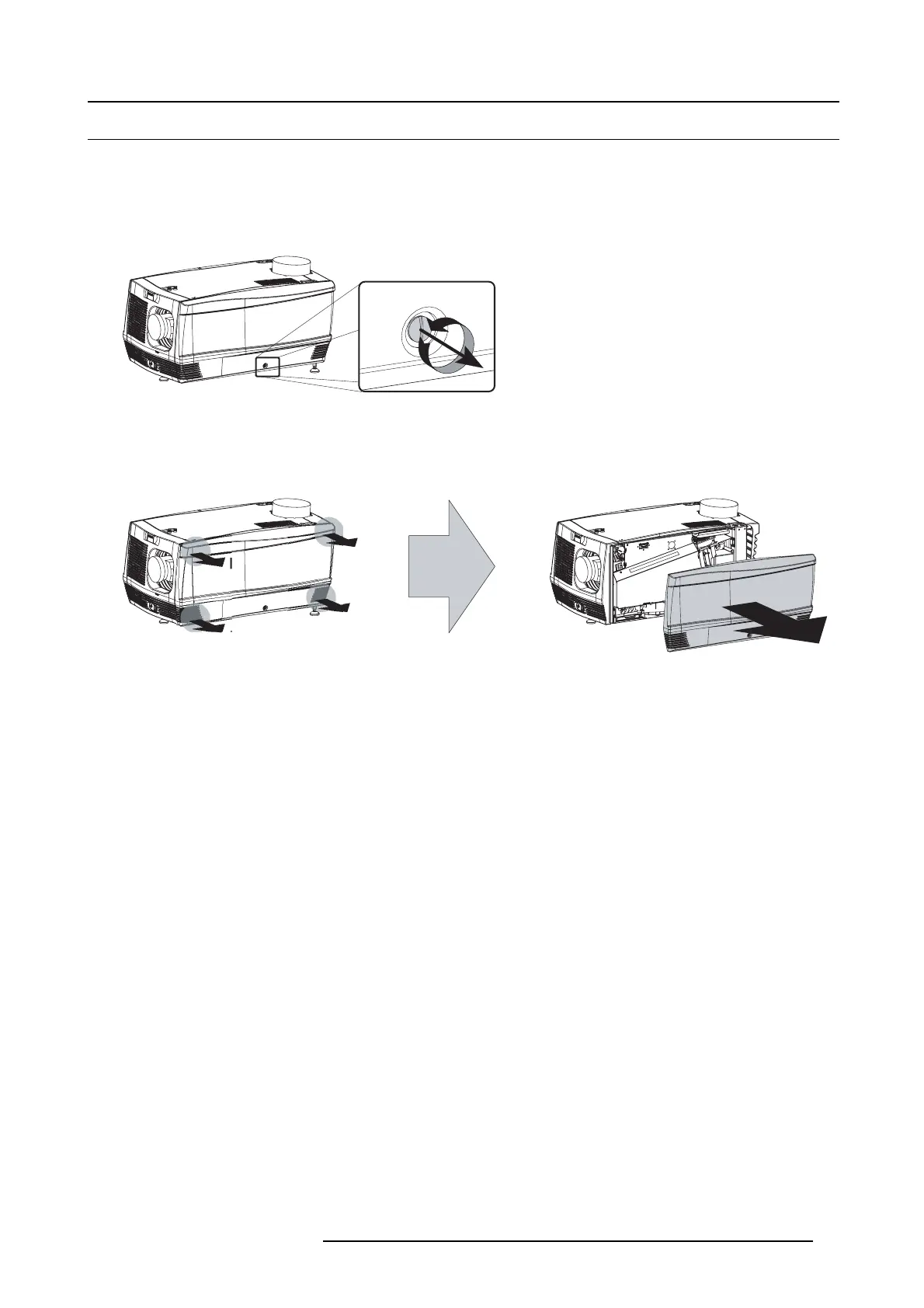

1. Release the c aptive screw at the m iddle bottom of the s ide cover, us ing a flat scre w driver.
Image 5-7
2. Remove the side cover from the projector doing the following:
a) gently pull out the bottom corners (A) of the s ide cover,
b) then gently pull out the top corners (B) of the s ide cover,
c) then m ove the side cover away from the projector (C).
B
B
A
A
C
Image 5-8
R5905043 DP2K-12C/11CX 19/02/2018 81
