10. Removal and installation of projector covers
10.7 Open the sealed compartment
This proced ure assumes that the left side cov er of the projector is already removed.
Necessary tools
3 mm Allen wrench.
How to open the sealed compartment of the Light Processor Unit?

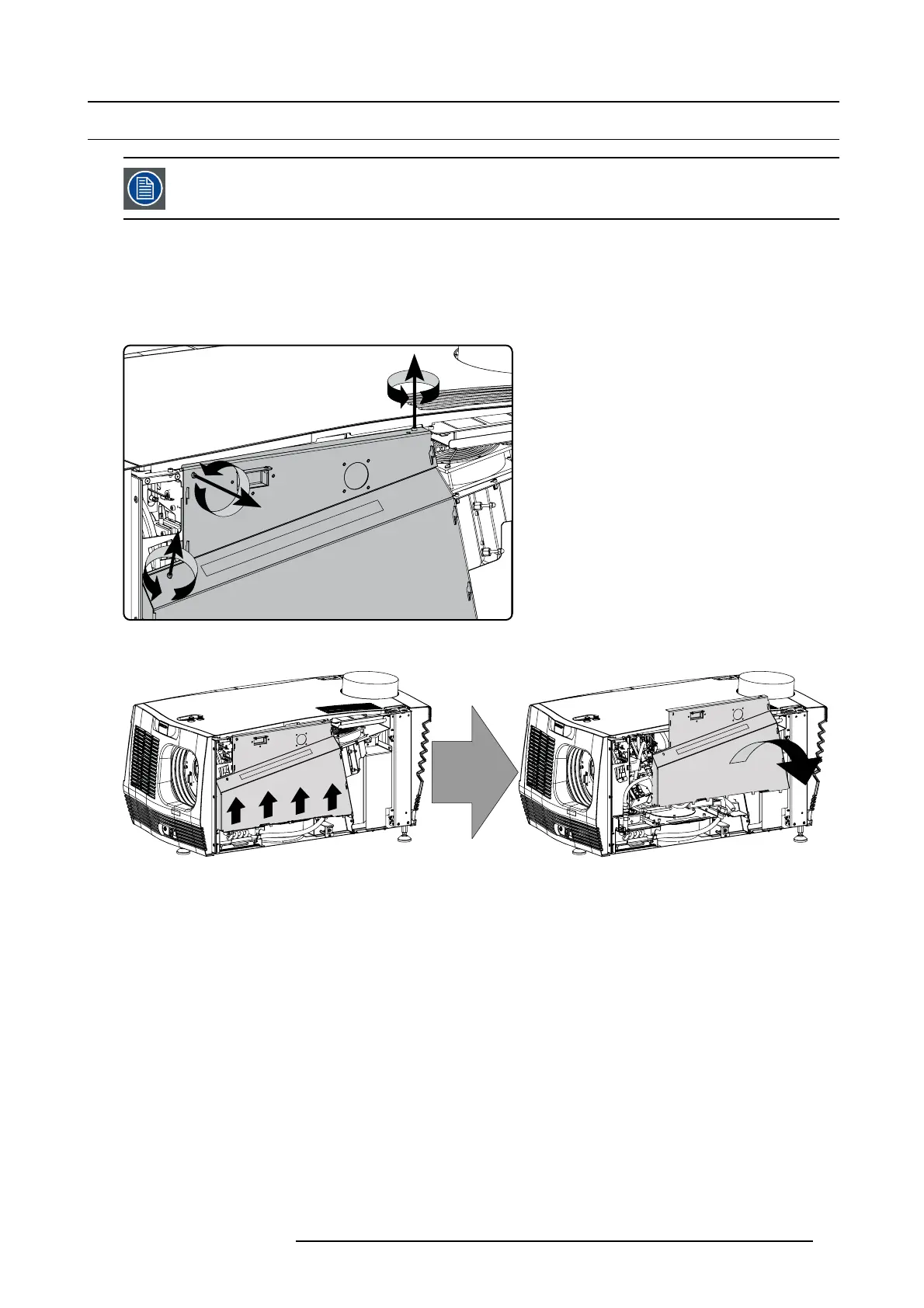

1. Release the three hexagon head cap screws as illustrated. Use for that a 3 mm Allen w rench.
Image 10-13
2. Lift up the cover plate s lightly, using the two lower lips provided, and then remove the cover plate away from the projector.
Image 10-14
R59770351 DP2K-20C 02/02/2010 95
