10. Removal and installation of projector covers
10.8 Close the sealed compartment
Necessary tools
3 mm Allen wrench.
How to close the sealed compartment of the Light Processor Unit?

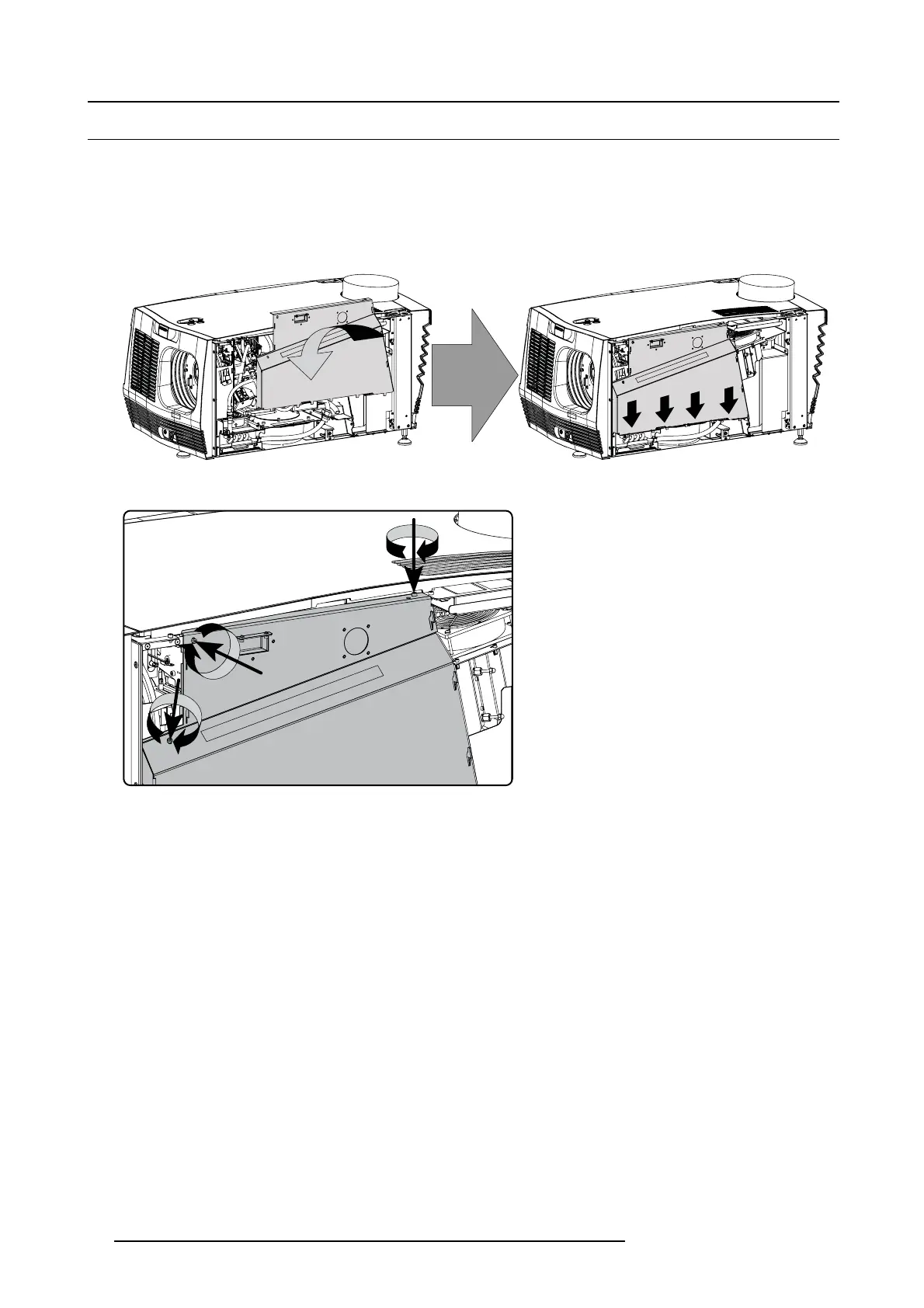

1. Place the cover plate in its place as illustrated .
Caution: Do not damage the micro switch at the top of the projector.
Image 10-15
2. Fasten the three hexagon head cap screws as illustrated. Use for that a
3mmAllenwrench.
Image 10-16
96 R59770351 DP2K-20C 02/02/2010
