6. Input & communication
6.5 Source input ports of the DP2K-20C projector

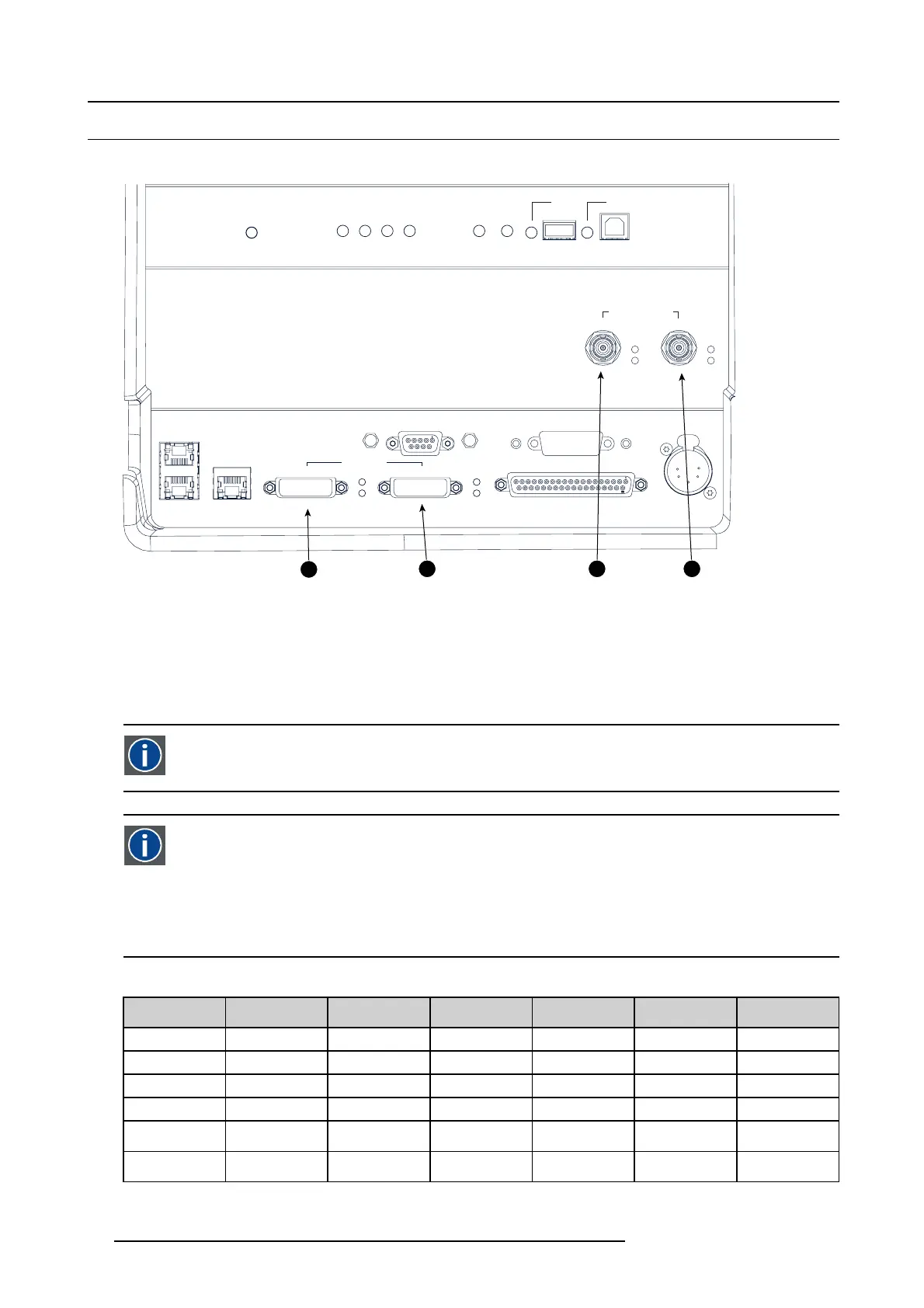

Location of the s ource input ports
GENERAL PURPOSE IN/OUT
DVI A DVI B
DVI INPUT
SEL
SYNC OK
SEL
SYNC OK
10 / 100 / 1000 BASE-T
RS232 IN 3D INTERFACE PERIPHERAL PORT
SMPTE 292/424 IN
AB
SEL
SYNC OK
SEL
SYNC OK
1
2
3
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT
CINEMA
ALT
CONT
USB
OUT
USB
IN
1
2 3 4
Image 6-6
Inputs
1 DVI-D input, port A, Single link + HDCP
2 DVI-D input, port B, Single link + HDCP
3 SMPT E 292/424 input, por t A (m axim um cable length of 30 m allowed)
4 SMPT E 292/424 input, por t B (m axim um cable length of 30 m allowed)
SMPTE
Society of M otion Picture and Telev ision Engineers - A global organization, based in the United States, that sets stan-
dards for baseband visual communications. This includes film as well as video standards.
DVI
Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.
The digital video connectivity standard that was developed by DDW G (Digital Display Work Gr oup). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that hand les both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from
Silicon Image and DDC (Display Data Channel) from VE SA (Video Electronics Standards Association).
DVI can be s ingle or dual link.
DVI Input formats
Input
Source
standard
Vertical rate
Scan type Color space Sampling Color depth
Single DVI VES A (640x480)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (640x480)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VES A (800x600)
72 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
60 Progressive
RGB
4:4:4 8 bit
Single DVI VESA
(1024x768)
70 Progressive
RGB
4:4:4 8 bit
64 R59770351 DP2K-20C 02/02/2010
