3. Physical installation
3.5 Connecting a U PS with the projector electronics
WARNING: O nly use UPS un its which are suitable for the DP2K-20C digital projector. S ee ch apter "Installation
requirements", page 1 0, for more information about the requirements of the UPS.
How to connect a UPS unit with the projector electronics?
1. Install the UPS unit according to the instructions of the manufacturer and the loc al regulations.
2. Connect the power output cord (reference 1) from the UP S unit with the UPS INLET socket of the projector (upper socket).
3. Secure the UPS INLET socket using the small fixation plate and two thumbscrews. Use appropriate spacers to ensure that the
plug is captured without play.
4. Install the large fixation plate (reference 2) upon the power OUTLET socket of the projector (lower socket). This to prevent losing
the fixation parts.
1
2

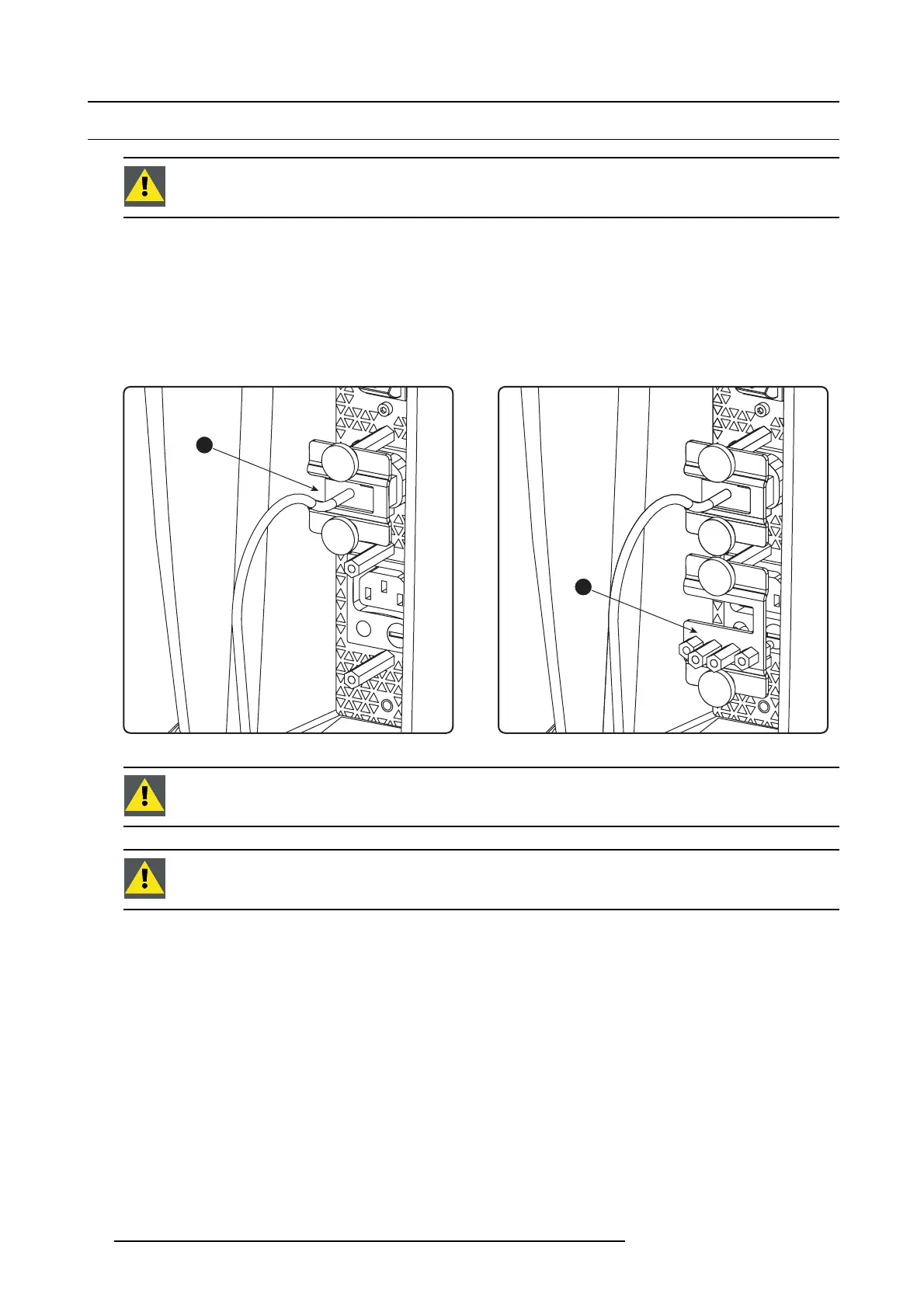

Image 3-12
CAUTION: T he electrical con nection w ith t
he UPS INLET so cket o f t he projector must b e d one with a certified
AC power supply cord (minimum 0,75 mm² or 18 AWG and minimum 300V )
CAUTION: Do not use t he power OUTLET socket of the projector to provide power to other equipment!
24 R59770351 DP2K-20C 02/02/2010
