5. Lenses & lens holder
5.5 Lens installation
How to install a lens into the projector le ns holder ?
1. Remov e the foam rubber in the opening of the lens holder if not removed yet.
2. Take the lens assembly out of its packing material and remove the lens caps on both sides.
3. Place th e lens holder in the “unlocked” position by moving the lens lock handle (A) towards the lens power sup ply sock et (B ) as
illustrated.

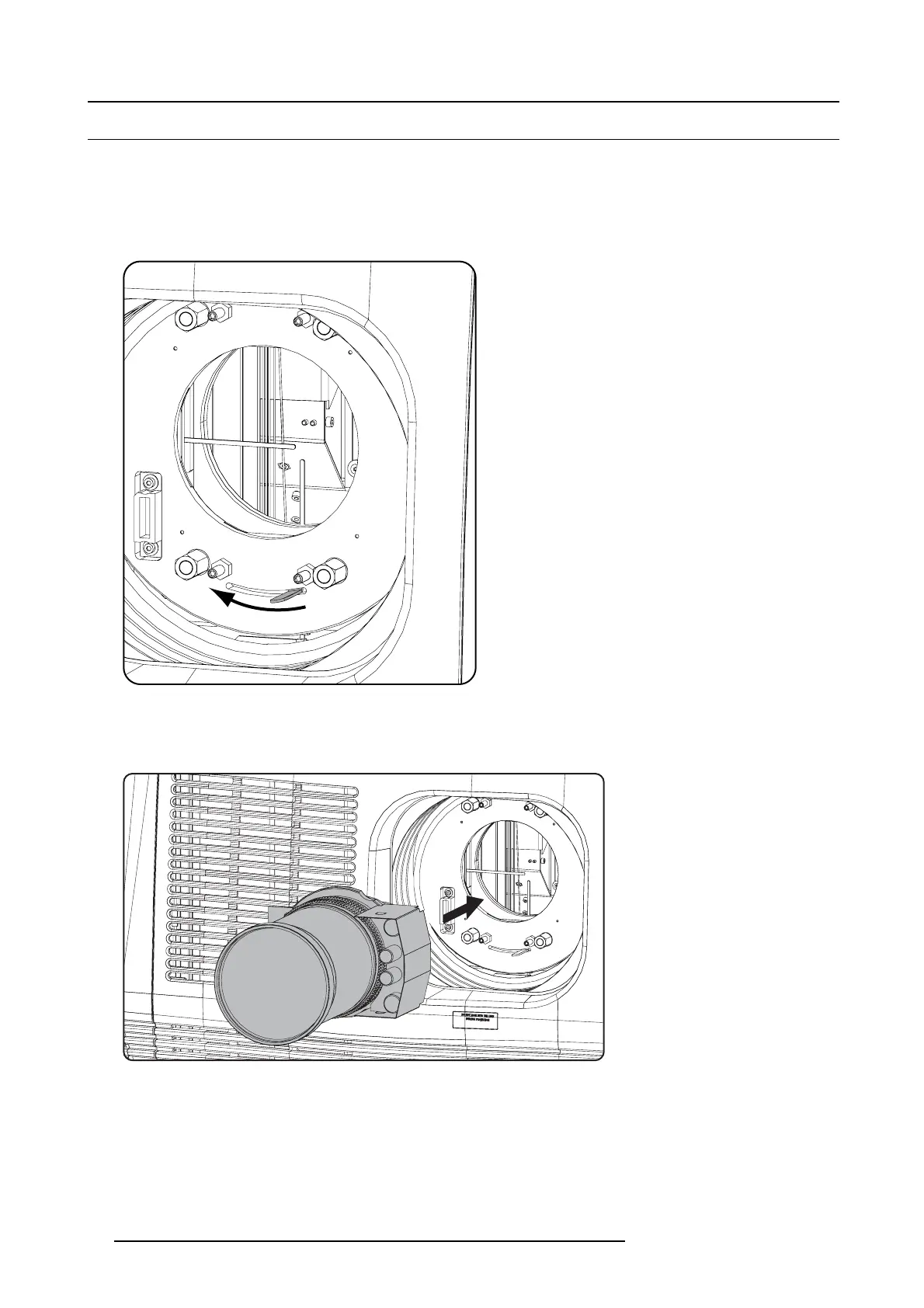

Image 5-10
4. Ensure that the lens holder stands in the On-Axis position (horizontal and vertical mid position).
Note: The lens holder is placed default in the On-Axis po sition at factory.
5. Gently insert the lens in such a w ay that the lens connector matches the so cket (B).
Image 5-11
6. Insert the lens until the connector seats into the socket.
Warning: Do not release the Lens yet, as the L ens m ay fall out of the Len s Holder.
7. Secure the lens in the lens holder by sliding the lens lock handle into the “locked” pos ition, which is away from the lens power
supply socket. Ensure the
lens touches the front plate of the lens holder.
50
R59770351 DP2K-20C 02/02/2010
