7. Communicator touch panel
7.2 Installing the touch panel interface
Necessary tools
• 17 mm wr ench.
• 10 mm wr ench.
How to install the touch panel interface upon the DP2K-20C projector?

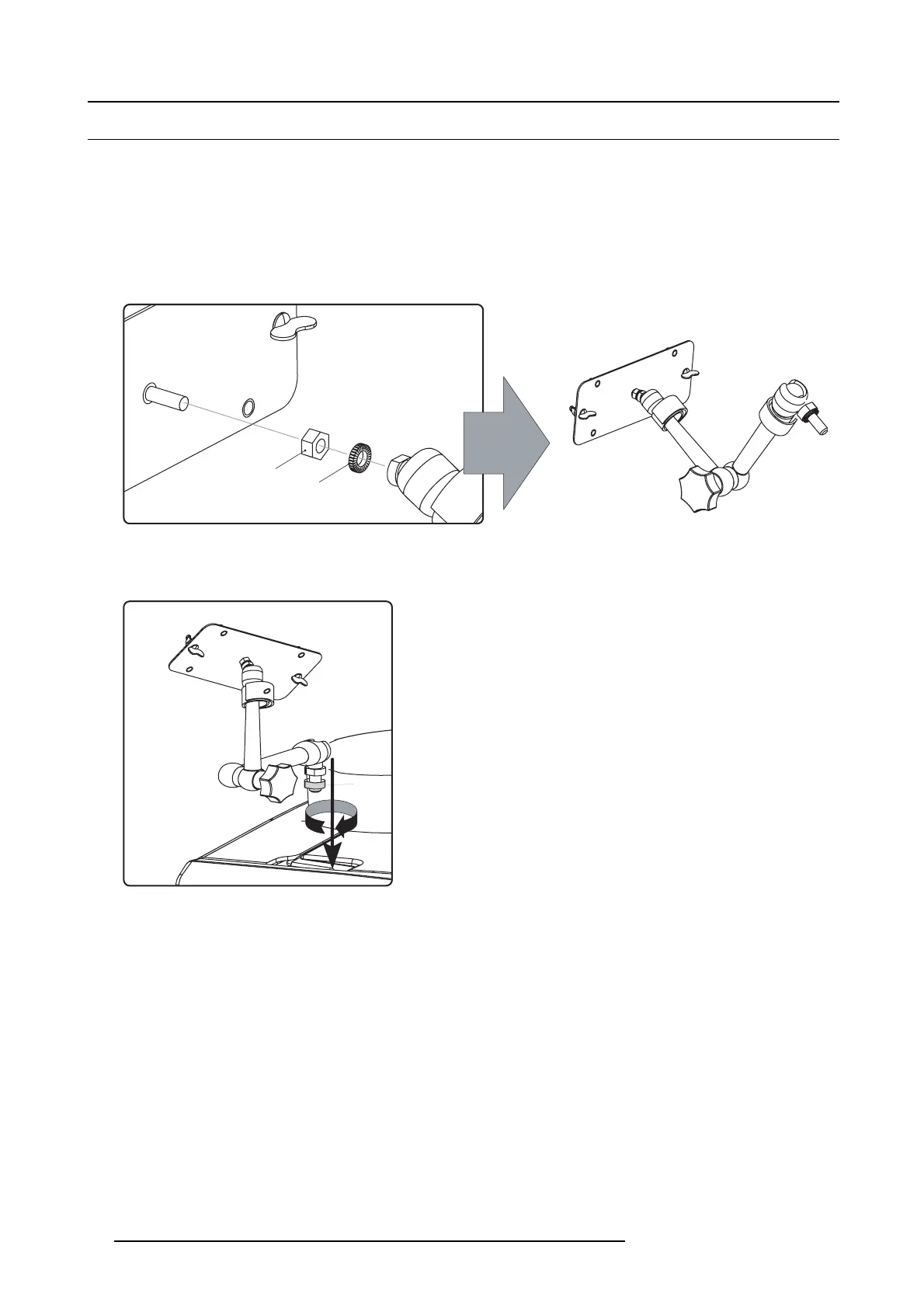

1. Assemble the mounting plate and the swivel arm together as illustrated. First plac e the nut (N) up on the rod of the mounting
plate, then add the lock washer (L), then fasten the mounting plate and the swiv el arm together. When the arm
is mounted, turn
nut (N) against the arm to s ecure the pos ition.
N
L
Image 7-3
Assemble swivel arm
2. Slide a w asher (M) over the base of the swivel arm and Insert the base of the sw ivel arm into the m ounting hole at t he top of the
DP2K-20C projector as illustrated.
M
Image 7-4
Mount swivel arm
3. Place the touch panel interface upon the mounting plate of the swivel arm and fasten the two wing nuts (W) a s illustrated.
70
R59770351 DP2K-20C 02/02/2010
