11. Maintenance
11.3 Clean the dust filter on the top side
Remove the dust filter
1. Remove the side cover, see "Removal of the s ide c over", page 91.
2. Pull out the dust filter.

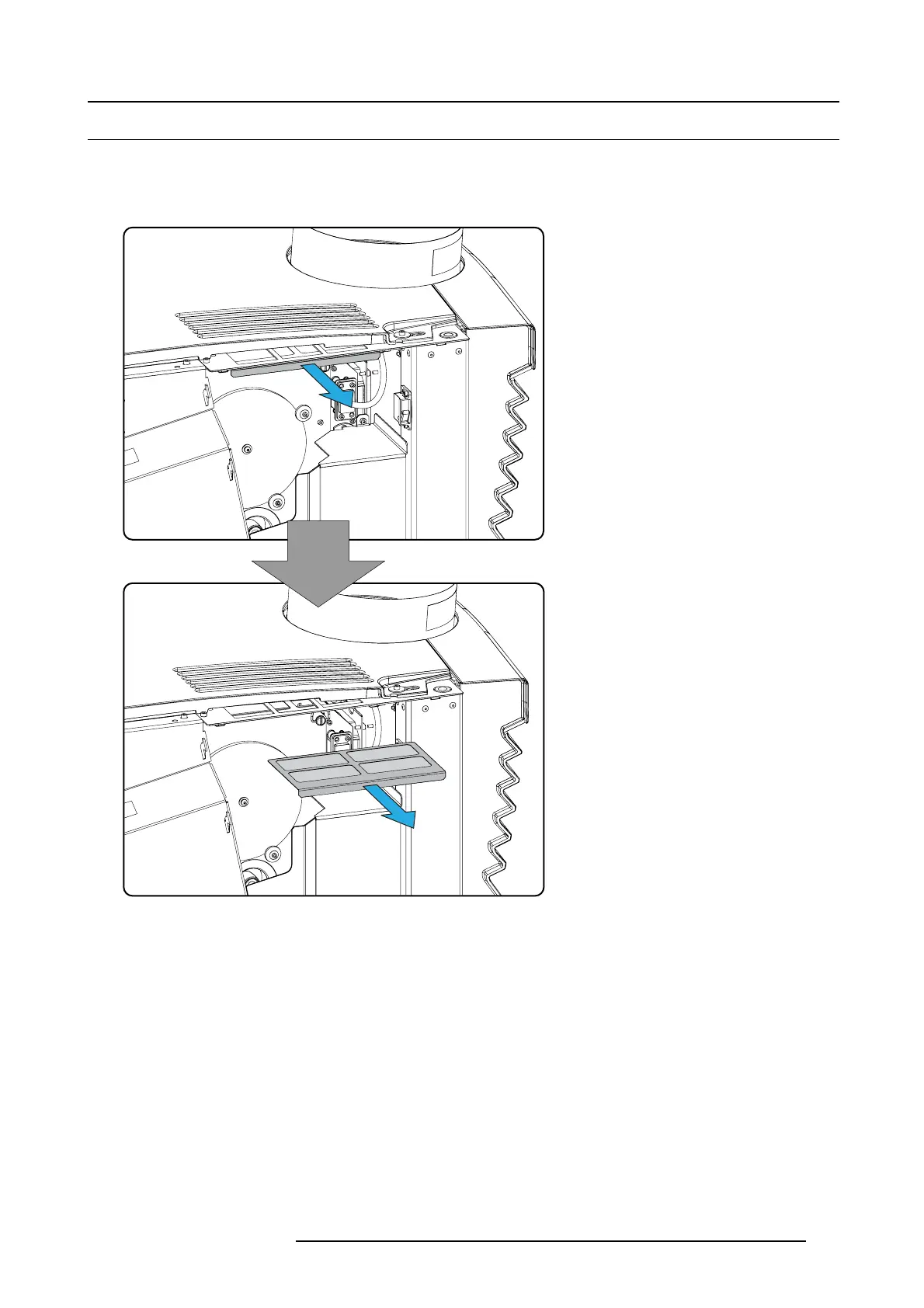

Image 11-4
Top dust filt er
Clean the dust filter
1. Remov e most contamination with a vacuum cleaner.
2. Blow remaining dust away with com pressed air in an other room or outside.
Mount the dust filter
1. Insert the dust filter and push on it until it is fully inserted.
R59770351 DP2K-20C 02/02/2010
107
