10. Removal and installation of projector covers
10.4 Removal of the side cover
Necessary tools
Flat screw driver.

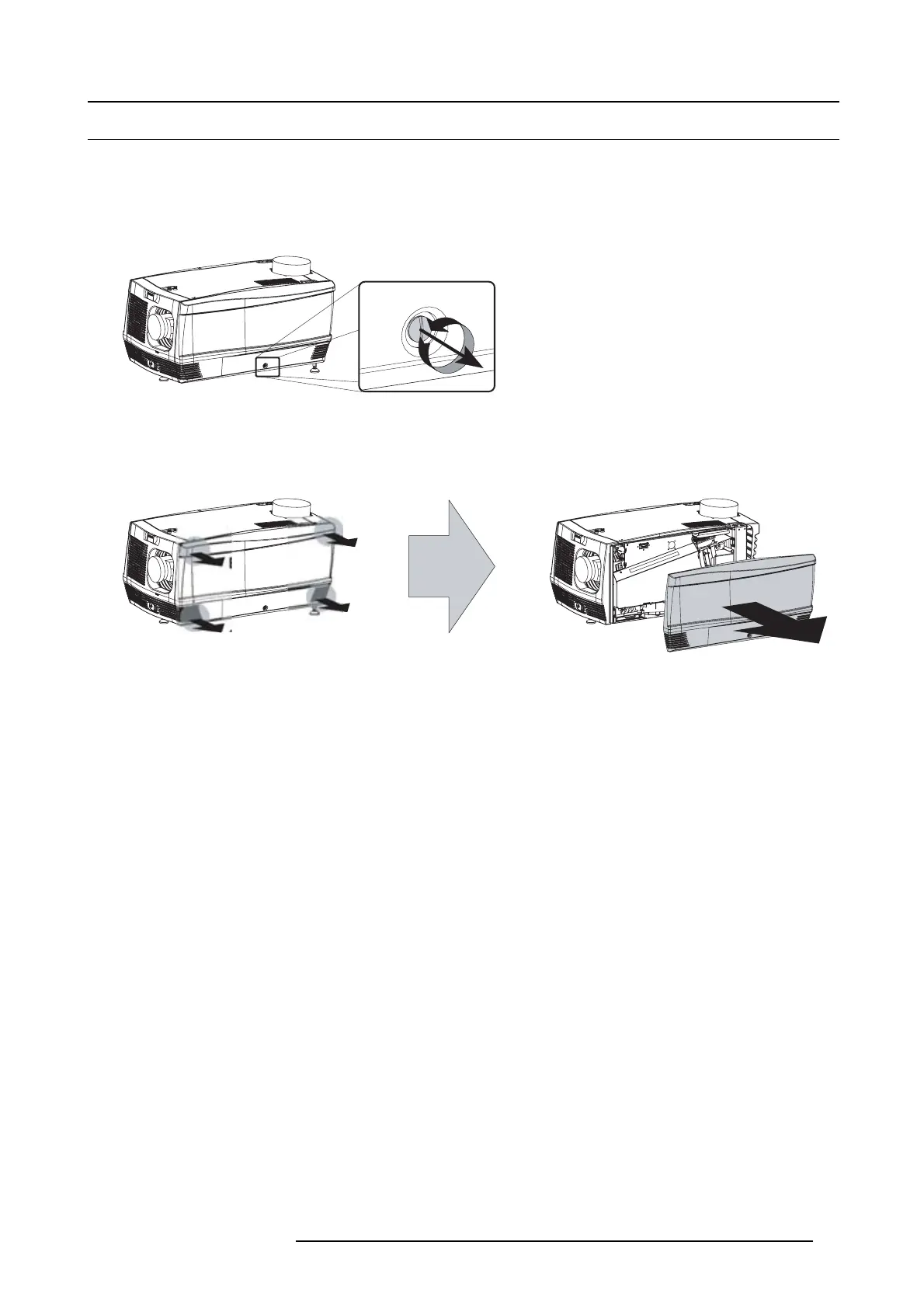

How to remove the side cover of the projector?
1. Release the captive screw at the middle bottom of the side cover, us ing a flat scre w drive r.
Image 10-7
2. Remov e the side cover from the projector doing the following:
a) gen tly pull out the bottom corners (A ) of the side cover,
b) then gently pull out the top corners (B) of the s ide cover,
c) then move the side c over away from the projector (C).
B
B
A
A
C
Image 10-8
R59770351 DP2K-20C 02/02/2010 91
