4. Lamp & lamp house
4.5 Installation of the lamp house
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Due to its high internal pressure, the lamp may explode in either hot o r cold states if imp roperly
handled.
Necessary tools
Flat screw driver.
How to install the lamp house
1. Ensure the projector is s witched off.
2. Remov e the lamp cover.
3. Hold fast the lamp house by its handles and gently slide the lamp house into its socket. Note that the compartm ent is provided
with guides (G) t o position the lamp house correctly.
G
G
G

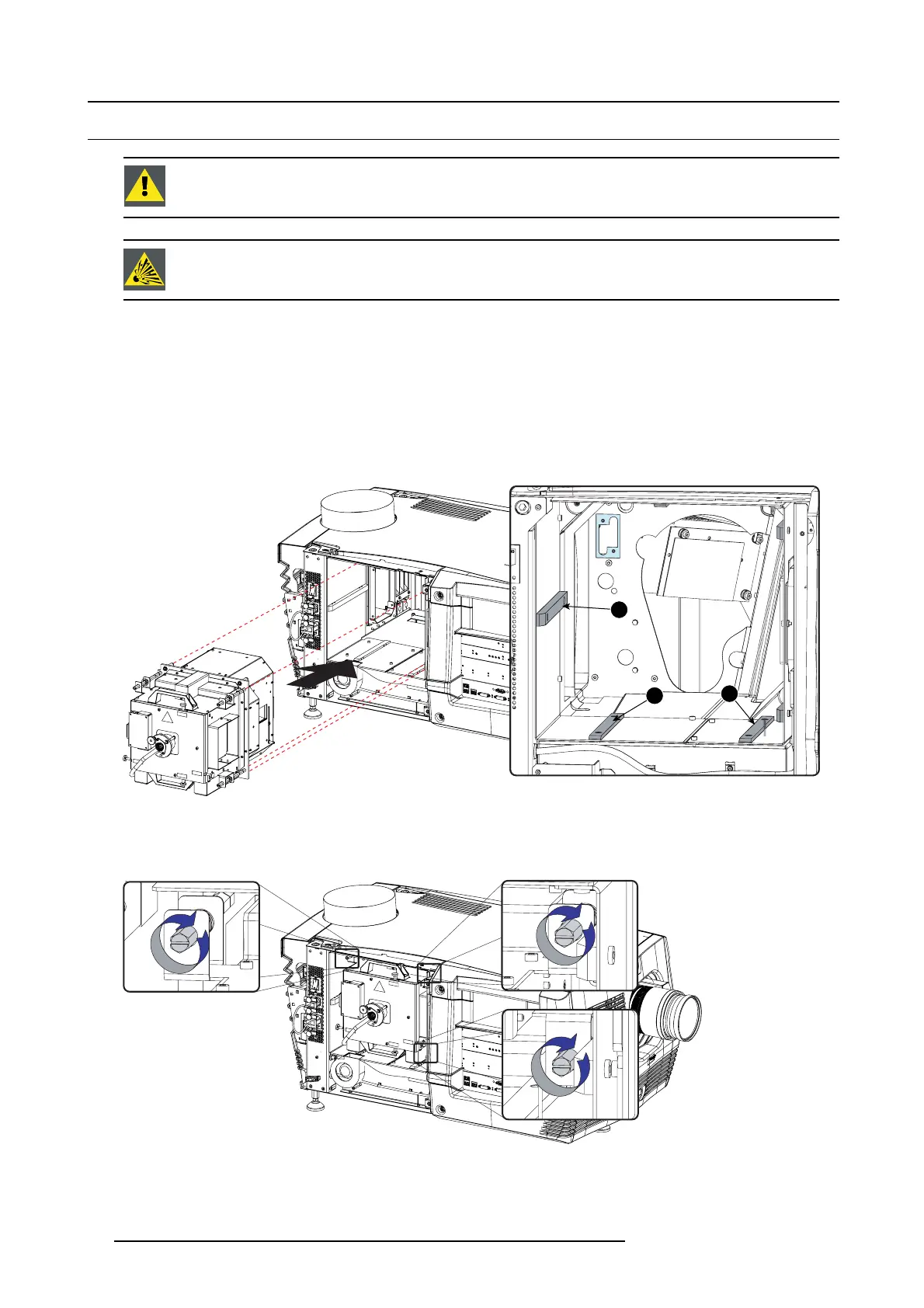

Image 4-24
Mount lamp house
4. Push the lamp house forward until it s lides full
y into the projector.
5. Secure the correct position of the lamp house by tightening all three spr ing lock screws as illustrated.
Image 4-25
Secure lamp house
6. Reinstall the lam p cover of th
eprojector.
