12. Convergence
12.2 Preparing the convergence adjustment
Necessary tools
Flat blade screwdriver
Prepare projector for convergence adjustment
1. Remov e all side covers and top cover of the projector, see "Removal a nd installation of projector c overs", page 87.
2. Open the sealed compartment of the light processor, see "Open the sealed compartment", page 95.
3. Remov e the convergence cover plate as follow:
a) Loo sen both screws (reference 1 and 2).
b) S lide the plate forwards until all hooks at both sides of the plate become free.
c) Take off the plate.
1
2
A
B

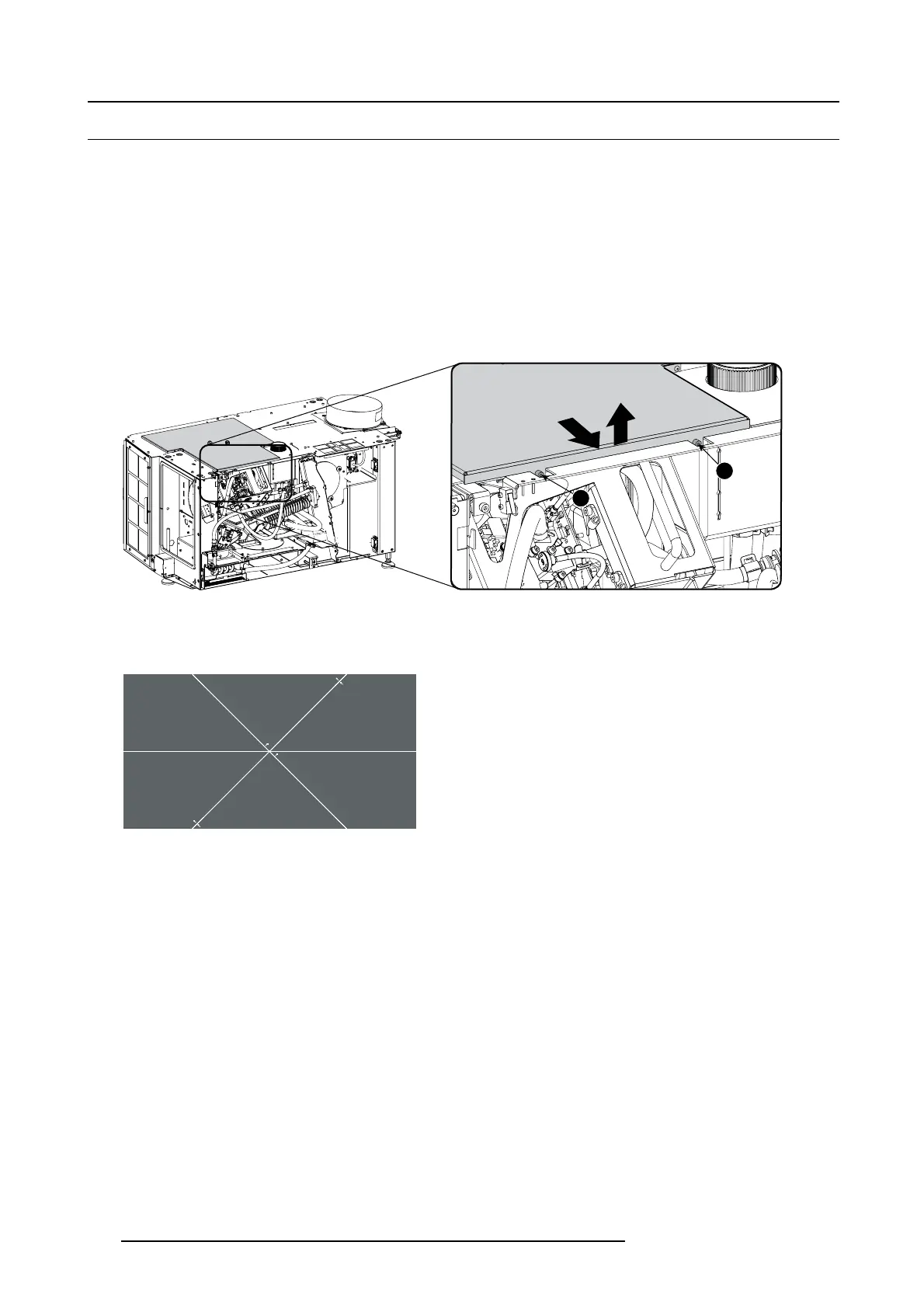

Image 12-3
Convergence cover plate
4. Reinstall the lens and s tart up the projector.
5. Use the Communicator software to activate the converg ence test pattern.
Image 12-4
Convergence test pattern
118 R59770351 DP2K-20C 02/02/2010
