7. Communicator touch panel
7.1 Introduction
Communicator Touch Panel for digital ci nema projectors
The Comm unicator Touch P anel is designed for multi-user command and control, the Communicator enables users to learn quickly
and operate efficiently - using an elegant and flexible touch panel interface. The interface’s commo nality means that operators
can intuitively use any model in the produ ct line, without restriction, and its user-friendly nature translates d irectly into a short and
enjoyable learning curve.

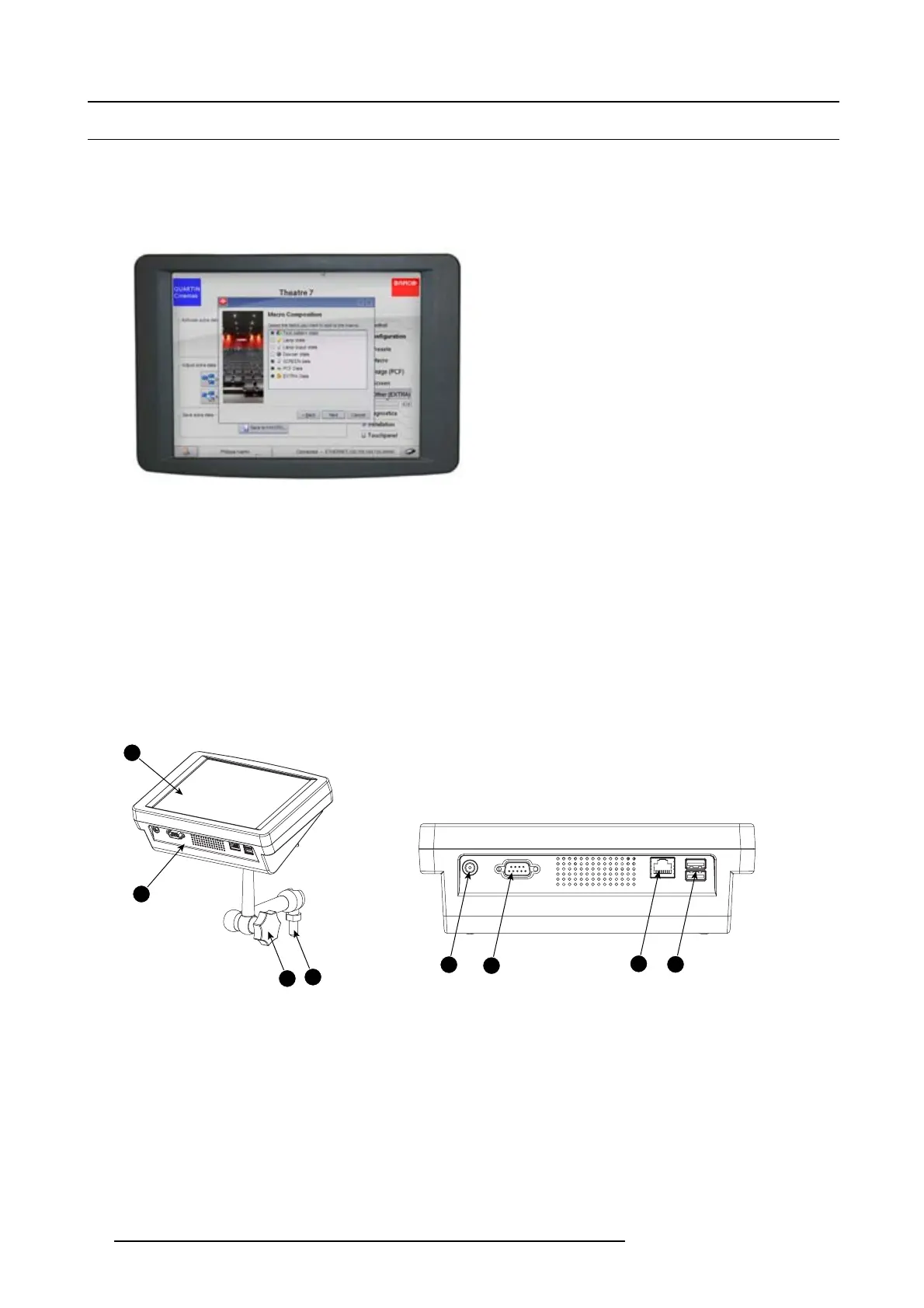

Image 7-1
Flexible touch panel interface
The touch panel interface can be m ounted upon a swivel arm which easily fits on top of the DP2K -20C projector. One central locking
mechanism of the swivel arm allows an instant fixation of the touch panel interface in any position.
The touch p anel interface can also be installed further away from the DP2K-20C projector. F or t hat yo u can use a serial (RS23 2)
cable up to 10 meter or an Ethernet cable up to 50 meter to allow a direct data communication between the DP 2K-20 C projector
and the Com mu nicator Touch Panel.
The touch panel interface c an also be c onnected with a Local Ar ea Network (LAN) just like the DP2K-20C projector. In this case
both devices can communicate with each other as well.
The touch panel interface requires a +12 VDC voltage, 1,5 ampere . The use of a separate +12 VDC adaptor (1,5 ampere m inimum)
is required.
Parts location of the touch panel interface
A
B
C
D
E
F
G
H
Image 7-2
Communicator touch panel
A Touch screen
B Communication pan el
C Knob to op erate central swivel c lamp
DBaseofswivelarm
E Power input 12 V DC, 1.5A
F RS232 port (sub-D)
G Ethernet port (RJ45)
68
R59770351 DP2K-20C 02/02/2010
