10. Removal and installation of projector covers
10.13 Installation of the input cover
Necessary tools
Flat screw driver.
How to install the input cover of the projector?
1. Install the input cover of the p rojector doing the following:
a) B ring the input cover towards its final p osition (A),
b) then gently push the locking s tud a t the right top corner (B) into its receiver,
c) then gently pus h the locking stud at the r ight bottom corner (C) into its receiver.
A
C
B

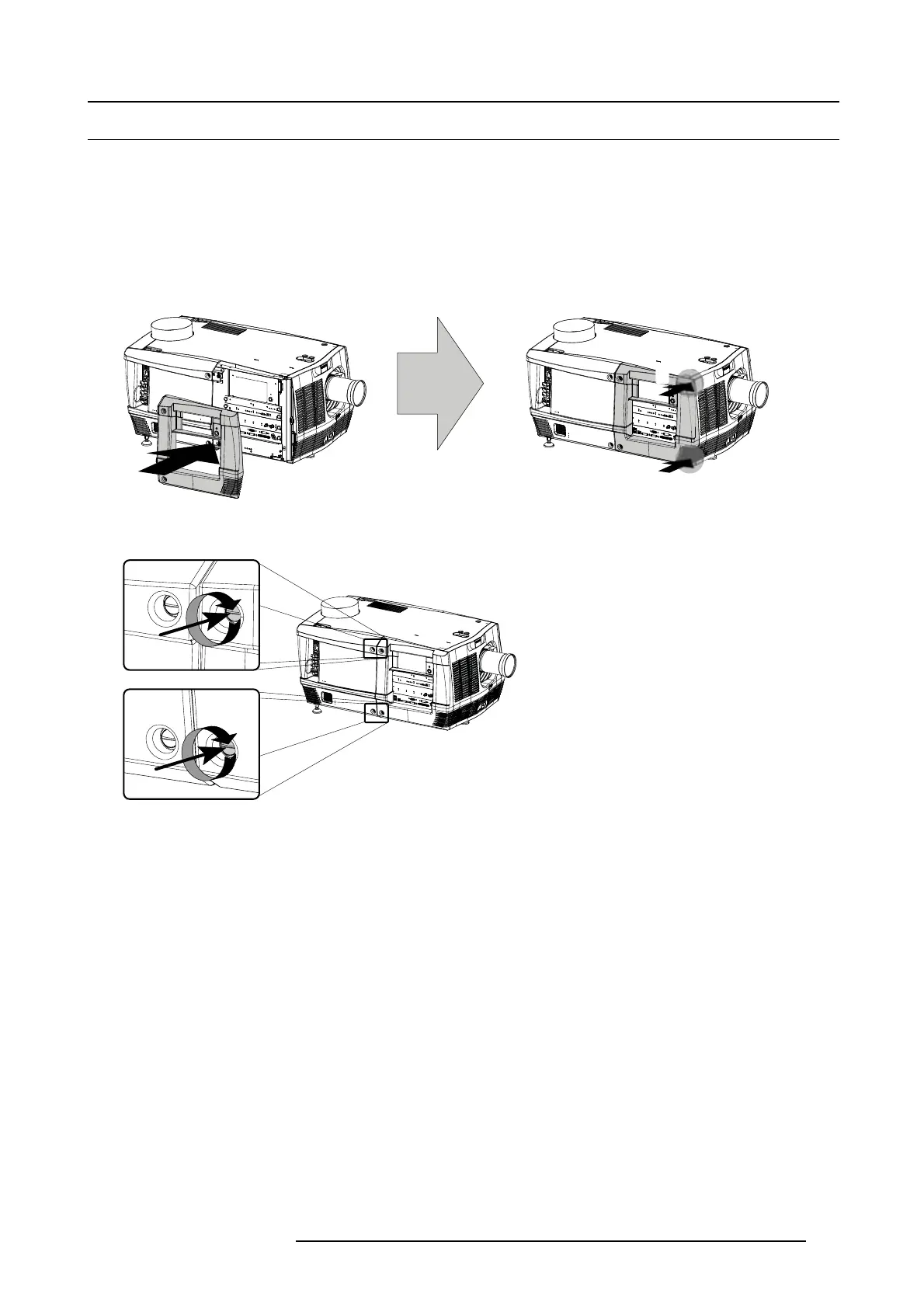

Image 10-25
Install input cover
2. Secure the input c over by locking the two captive screws at the left side of the input cover.
Image 10-26
Fasten input cover
R59770351 DP2K-20C 02/02/2010 101
