10. Removal and installation of projector covers
10.11 Installation of the side cover
Necessary tools
Flat screw driver.
How to install the side cover of the projector?
1. Check if the bottom and top filters a re present.
2. Install the s ide cover of the projector doing the following:
a) B ring the side cover towards its final position (A),
b) then ge ntly push t he loc king studs of the top corners (B) into their receivers,
c) then gently pus h the locking studs of the bottom c orners (C) into their receivers.
B
B
C
C
A

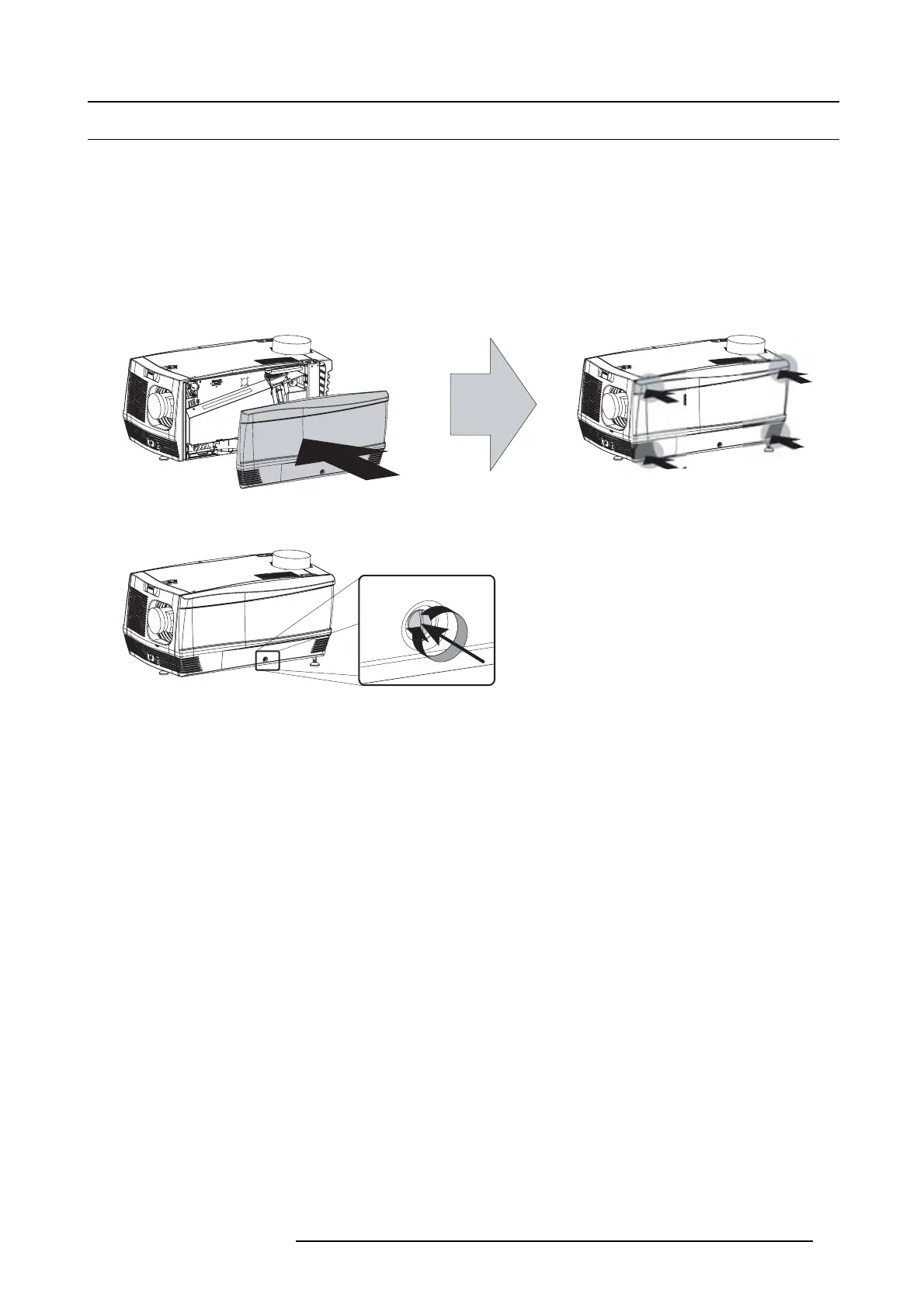

Image 10-21
3. Secure the side cover by locking t he captive screw in the middle at the bottom
of the side cover.
Image 10-22
R59770351 DP2K-20C 02/02/2010 99
