10. Removal and installation of projector covers
10.2 Removal of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
Flat screw driver.
How to remove the input cover of the projector?
1. Release the two captive screws at the top an d bottom left side of the input cover, using a fl a t screw drive r.

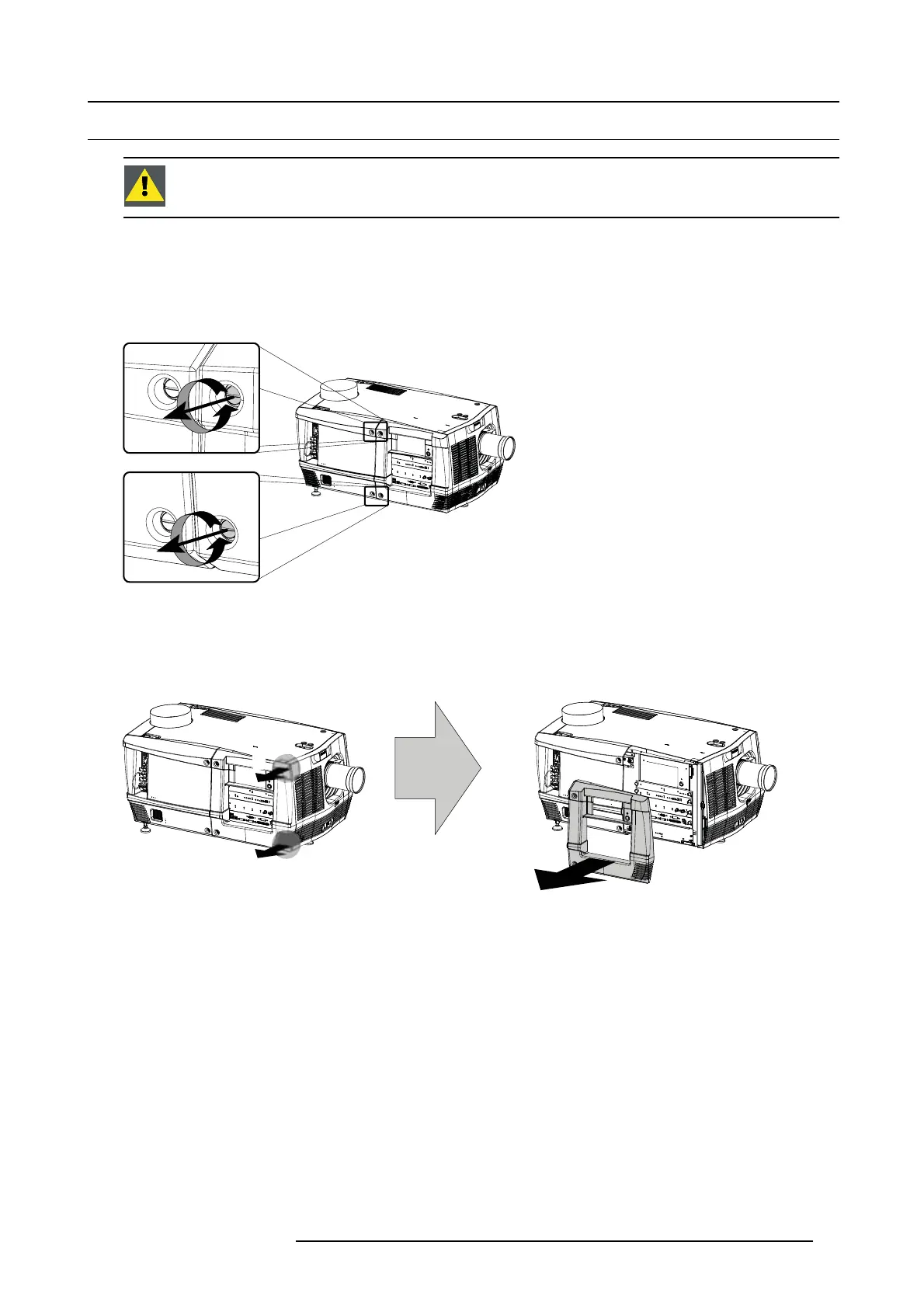

Image 10-3
Release input cover
2. Remov e the input cover from the projector doing the following:
a) gen tly pull out the right b ottom corner (A) of the input c over,
b) then gently pull out the right top c orner (B) of the input cover,
c) then move the input cover away from the projector (C).
C
A
B
Image 10-4
Remove input cover
R59770351 DP2K-20C 02/02/2010 89
