Beckhoff TwinSAFE logic FB User Manual

Function blocks
Function blocks for TwinSAFE logic components 101
3.11 The function block SR
3.11.1 Functional description
The FB SR realizes a set / reset functionality.
Logic 1 at input Set and logic 0 at input Reset leads to logic 1 at the output.
Logic 0 at input Set and logic 1 at input Reset leads to logic 0 at the output.
If both inputs are set to logic 1, the Set signal is dominant and leads to logic 1 at the output.
If both inputs are logic 0, the output remains in its current state.

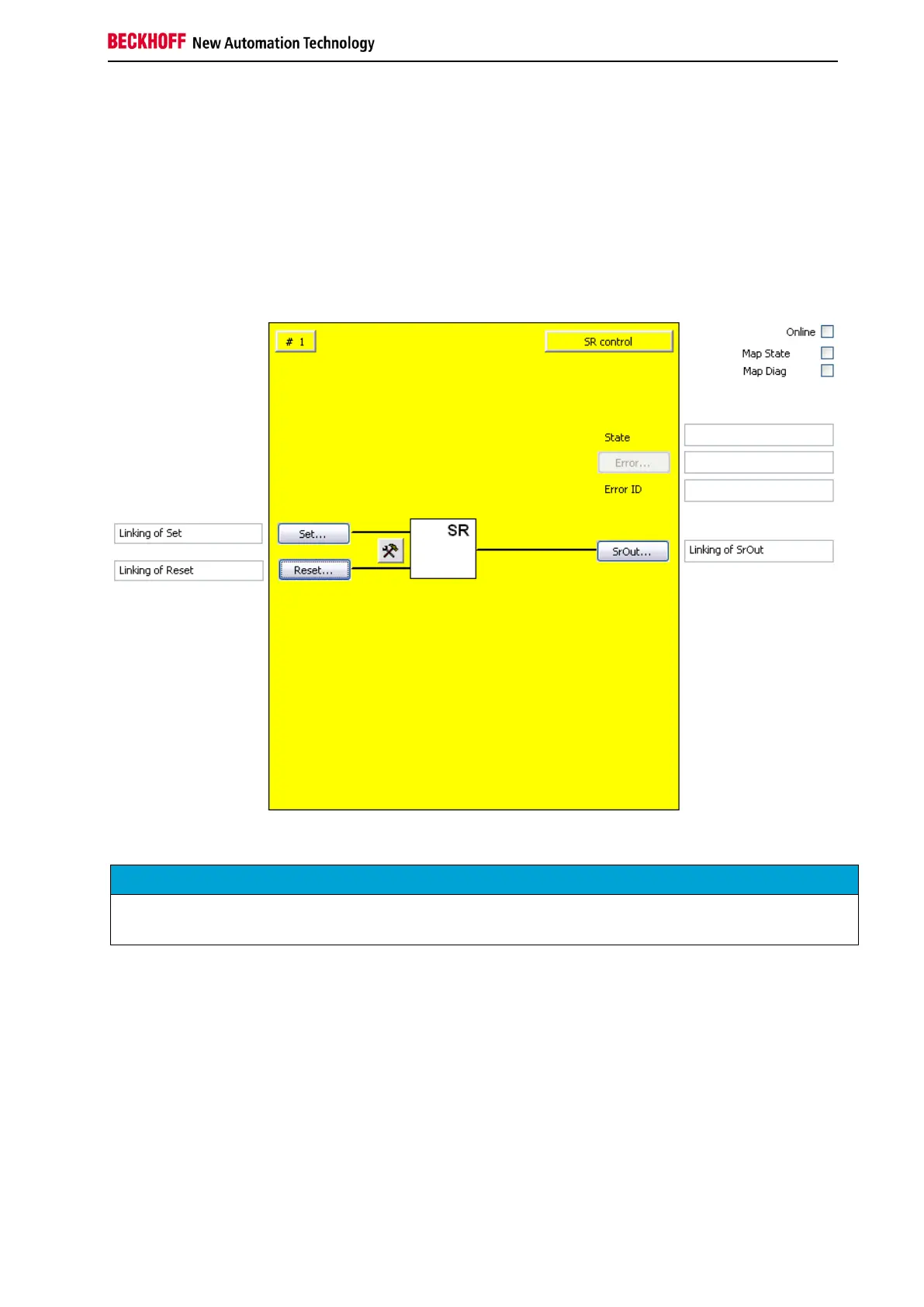

Figure 3-50: SR function block
NOTE
KL6904
The SR function block is not available in the KL6904.
